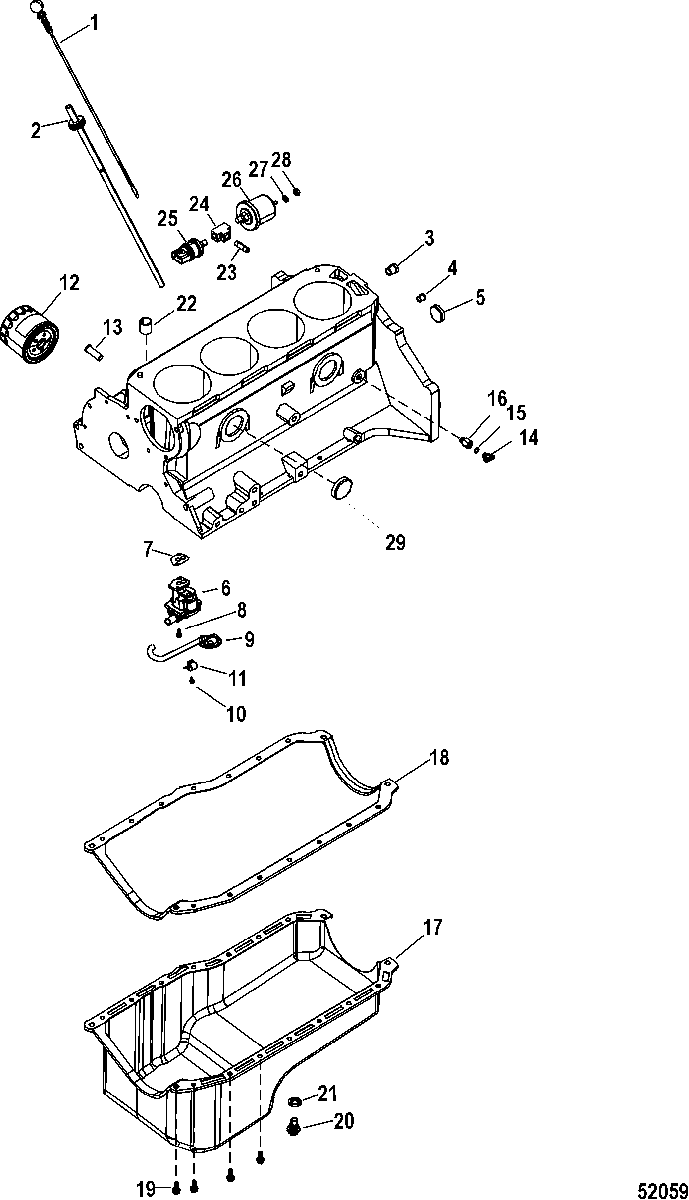

Oil Pan and Oil Pump для Mercruiser - 3.0L TKS Plus 1G404114 & Up
-
№АртикулНазвание
-
1861942T1 GAUGE, Dipstick
(Knob Handle)GAUGE, Dipstick
(Knob Handle) -
287717A2 TUBE, DipstickTUBE, Dipstick
-
322-36373 PLUG, (.375-18 x .42)PLUG, (.375-18 x .42)
-
419-37531 PLUGPLUG
-
522-72640 PLUGPLUG
-
636405 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
7NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
810-8M0043993 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
952146 SCREEN, Oil Pump PickupSCREEN, Oil Pump Pickup
-
1010-8M0040582 SCREWSCREW
-
11NSS NOT SOLD SEPARATE, Oil Pump SupportNOT SOLD SEPARATE, Oil Pump Support
-
1235-866340Q03 FILTER, Oil - Quicksilver BrandFILTER, Oil - Quicksilver Brand
-
1235-866340K01 FILTER, Oil - Mercury BrandFILTER, Oil - Mercury Brand
-
1334543 VALVEVALVE
-
1422-8M0119211 PLUG ASSEMBLY, (.500-13) BluePLUG ASSEMBLY, (.500-13) Blue
-
1525-32509 O-RING, (.489 x .070)O-RING, (.489 x .070)
-
1622-860088 BUSHINGBUSHING
-
178M0122492 PAN, OilPAN, Oil
-
1827-810846T GASKET SETGASKET SET
-
1910-34500 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
1910-72607 SCREW, (.250-20 x .375)SCREW, (.250-20 x .375)
-
2010-49956 SCREW, DrainSCREW, Drain
-
2127-8M0077608 GASKET, DrainGASKET, Drain
-
22NSS NOT SOLD SEPARATE, BearingNOT SOLD SEPARATE, Bearing
-
2322-38992 FITTINGFITTING
-
2422-52930 FITTINGFITTING
-
2587-865934 Pressure Switch, (SPDT)Pressure Switch, (SPDT)
-
268M0068784 OIL PRESSURE SENDEROIL PRESSURE SENDER
-
2713-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2811-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2919-34271 EXPANSION PLUG, (2.00)EXPANSION PLUG, (2.00)
-
-27-810846A05 GASKET SET, OverhaulGASKET SET, Overhaul
-
-8M0128770 LONG BLOCK ASSEMBLYLONG BLOCK ASSEMBLY
-
-92-809825 RTV SILICONE, (3 Ounce Tube) Metallic BlueRTV SILICONE, (3 Ounce Tube) Metallic Blue
-
-92-34227Q02 SEALING COMPOUNDSEALING COMPOUND
