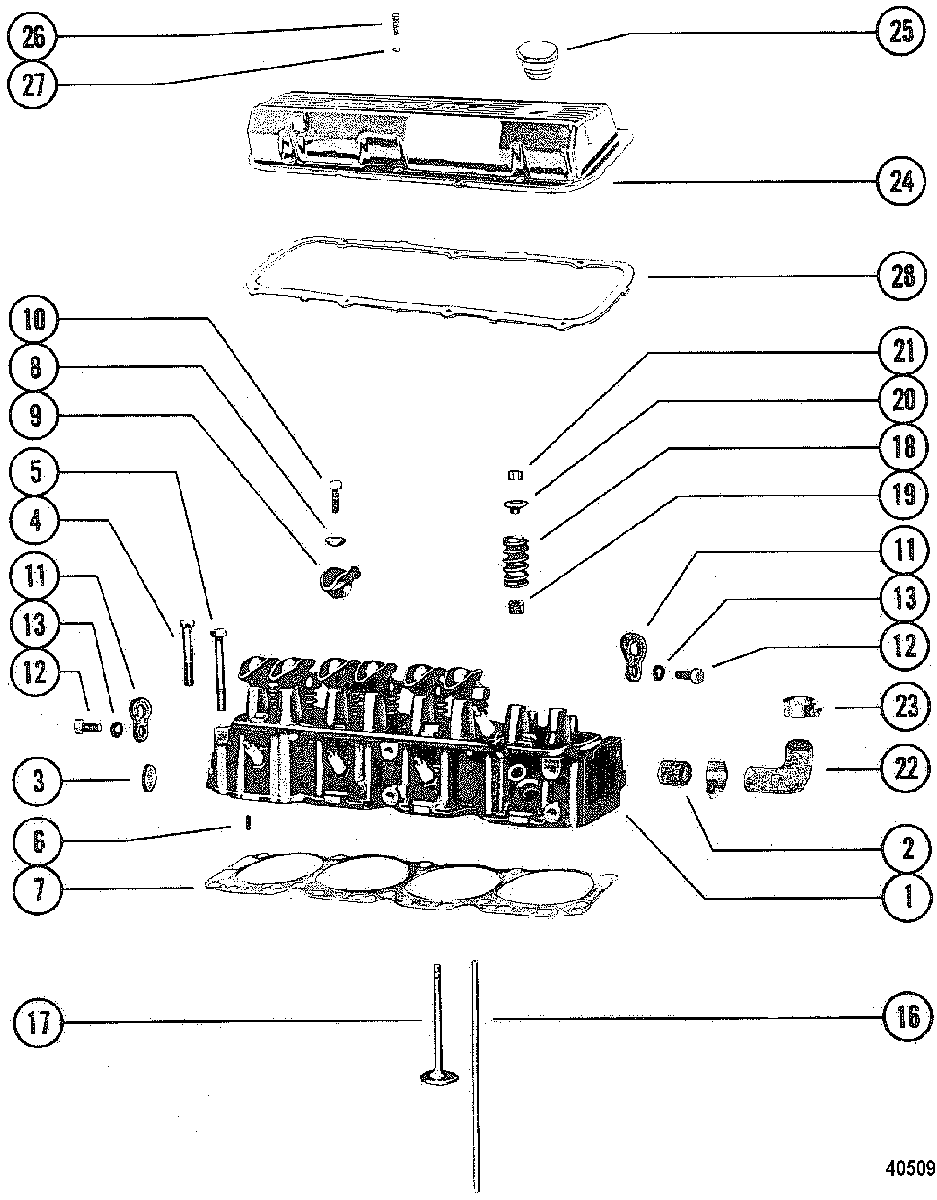

Cylinder Head & Rocker Cover для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1980-1982 5520115 THRU 6218036
-
№АртикулНазвание
-
1966-9451R2 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
223-72119 SLEEVE, WaterSLEEVE, Water
-
319-74832 PLUG, Cylinder HeadPLUG, Cylinder Head
-
410-67503 SCREW, (4-3/8 Inch), Cylinder Head AttachingSCREW, (4-3/8 Inch), Cylinder Head Attaching
-
510-72769 SCREW, (5-1/8 Inch), Cylinder Head AttachingSCREW, (5-1/8 Inch), Cylinder Head Attaching
-
617-67489 PIN, Cylinder HeadPIN, Cylinder Head
-
727-13709 GASKET, Cylinder HeadGASKET, Cylinder Head
-
867504 BALL, Rocker Arm, Rocker CoverBALL, Rocker Arm, Rocker Cover
-
9806751A1 ARM, Rocker ValveARM, Rocker Valve
-
1010-67506 SCREW, Rocker ArmSCREW, Rocker Arm
-
1154-72531 LIFTING EYELIFTING EYE
-
1210-48948 SCREW, (.437-14 x .880), Lifting Eye, Front
(MCM)SCREW, (.437-14 x .880), Lifting Eye, Front
(MCM) -
1313-32993 LOCKWASHER, (.437), Lifting Eye Screw
(MCM)LOCKWASHER, (.437), Lifting Eye Screw
(MCM) -
16675025 PUSH ROD, Valve (Standard)PUSH ROD, Valve (Standard)
-
16675023 PUSH ROD, Valve (.030 Shorter)PUSH ROD, Valve (.030 Shorter)
-
16675024 PUSH ROD, Valve (.030 Longer)PUSH ROD, Valve (.030 Longer)
-
1744182A1 VALVE, Exhaust (Standard)VALVE, Exhaust (Standard)
-
1775415 VALVE, Exhaust (.015 O.S.)VALVE, Exhaust (.015 O.S.)
-
1775416 VALVE, Inake (Standard)VALVE, Inake (Standard)
-
1775417 VALVE, Inake (.015 O.S.)VALVE, Inake (.015 O.S.)
-
1824-75411T SPRING, ValveSPRING, Valve
-
1926-75624 SEAL, Valve StemSEAL, Valve Stem
-
2075412 RETAINER, Valve SpringRETAINER, Valve Spring
-
2128-547971 KEY, Valve StemKEY, Valve Stem
-
2232-74767 HOSE, Cylinder Head to Exhaust ManifoldHOSE, Cylinder Head to Exhaust Manifold
-
2354-815504220 CLAMP, Hose AttachingCLAMP, Hose Attaching
-
2441638A1 ROCKER COVERROCKER COVER
-
2536-807152 CAP, Filler, OilCAP, Filler, Oil
-
2610-65746 SCREW, (.75 In.), Rocker Cover AttachingSCREW, (.75 In.), Rocker Cover Attaching
-
2713-22773 LOCKWASHER, Rocker Cover ScrewLOCKWASHER, Rocker Cover Screw
-
2827-73666 GASKET, Rocker CoverGASKET, Rocker Cover
