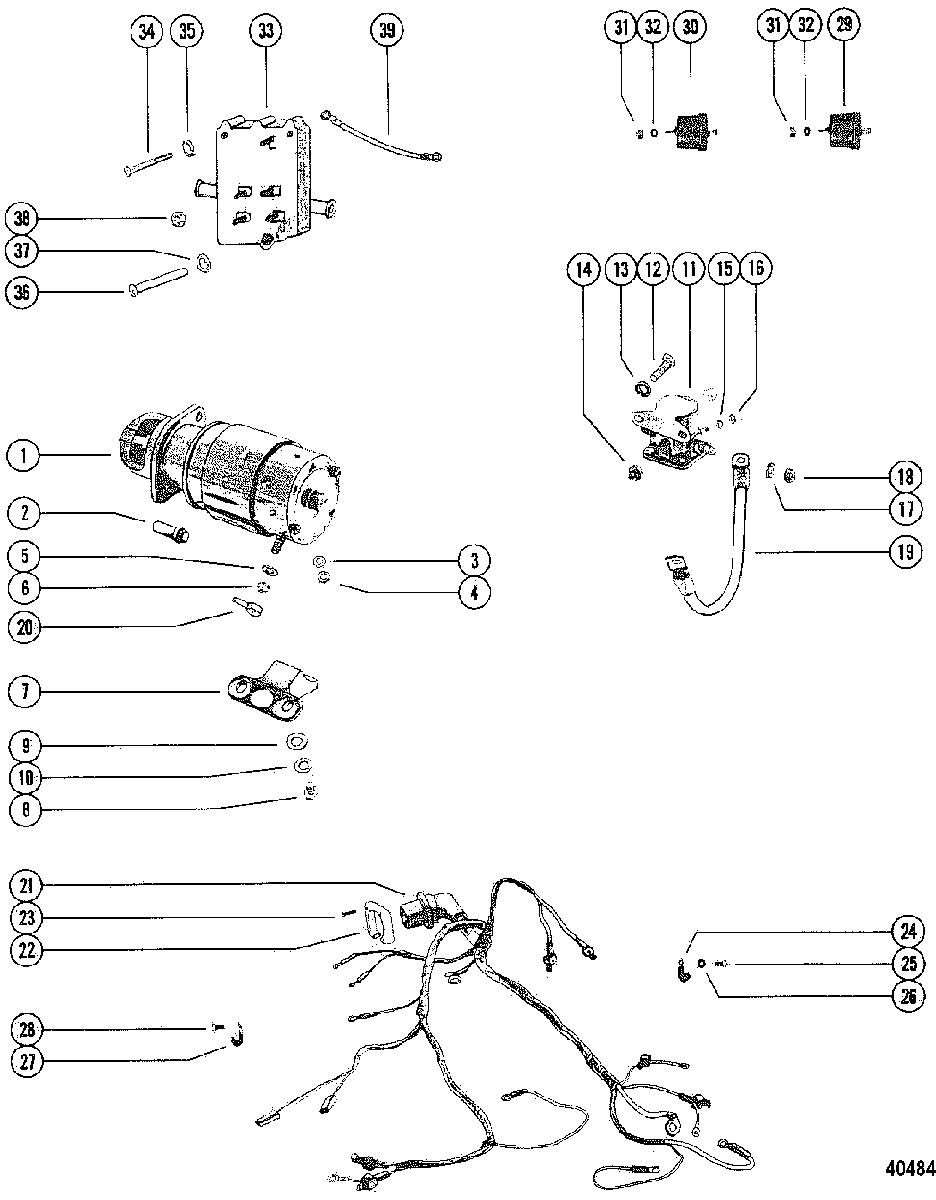

Starter Motor & Wiring Harness для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1980-1982 5520115 THRU 6218036
-
№АртикулНазвание
-
150-72550R2 STATER MOTOR ASSEMBLY (MCM)STATER MOTOR ASSEMBLY (MCM)
-
150-88671A2 STARTER MOTOR ASSEMBLY (INBOARD)STARTER MOTOR ASSEMBLY (INBOARD)
-
210-72875 SCREW, (1.5 In.), Starter Motor AttachingSCREW, (1.5 In.), Starter Motor Attaching
-
312-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
411-23161 NUT, (.375-24)NUT, (.375-24)
-
513-26993 LOCKWASHER, (.312), Starter Motor TerminalLOCKWASHER, (.312), Starter Motor Terminal
-
611-29250 NUT, (.312-24), Starter Motor TerminalNUT, (.312-24), Starter Motor Terminal
-
770398A1 BRACE, Starter Motor to Cylinder BlockBRACE, Starter Motor to Cylinder Block
-
810-21077 SCREW, (.375-16 x .88), Starter Motor Brace to Cylinder BlockSCREW, (.375-16 x .88), Starter Motor Brace to Cylinder Block
-
912-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
1013-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1165057T1 SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
1210-28635 SCREW, (.250-20 x .620) Stainless Steel, Solenoid to Cylinder BlockSCREW, (.250-20 x .620) Stainless Steel, Solenoid to Cylinder Block
-
1313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
14269011 BUMPERBUMPER
-
1513-26996 LOCKWASHER, (#10) Stainless Steel, Solenoid TerminalLOCKWASHER, (#10) Stainless Steel, Solenoid Terminal
-
1611-68219 NUT, (#10-32) Stainless Steel, Solenoid TerminalNUT, (#10-32) Stainless Steel, Solenoid Terminal
-
1713-26993 LOCKWASHER, (.312), Solenoid TerminalLOCKWASHER, (.312), Solenoid Terminal
-
1811-22053 NUT, (5/16-24), Solenoid TerminalNUT, (5/16-24), Solenoid Terminal
-
1984-77042 CABLE, Solenoid to StarterCABLE, Solenoid to Starter
-
2085-79695T BOOT, Insulator - Black, Starter StudBOOT, Insulator - Black, Starter Stud
-
2184-86675A2 HARNESS ASSEMBLY (MCM)
SN# 5873488 & BelowHARNESS ASSEMBLY (MCM)
SN# 5873488 & Below -
2184-93178A1 HARNESS ASSEMBLY (MCM)
SN# 5873489 & UpHARNESS ASSEMBLY (MCM)
SN# 5873489 & Up -
2184-89231A1 HARNESS ASSEMBLY (INBOARD)HARNESS ASSEMBLY (INBOARD)
-
2226079A2 PLATE, Harness AttachingPLATE, Harness Attaching
-
2310-46718 SCREW, (#8-32 x 3/4), Plate to BracketSCREW, (#8-32 x 3/4), Plate to Bracket
-
2454-642351 J CLIP, Wiring HarnessJ CLIP, Wiring Harness
-
2510-98253 SCREW, (1/2 In.), Wiring Harness Clamp to ManifoldSCREW, (1/2 In.), Wiring Harness Clamp to Manifold
-
2613-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2754-73668 J-CLIPJ-CLIP
-
2810-98260 SCREW, (.375-16 x .62), Clip to Intake ManifoldSCREW, (.375-16 x .62), Clip to Intake Manifold
-
298M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
3087-805605A1 SWITCH, Oil Pressure
(INBOARD)SWITCH, Oil Pressure
(INBOARD) -
3111-68219 NUT, (#10-32) Stainless Steel, Switch & Sending Unit TerminalNUT, (#10-32) Stainless Steel, Switch & Sending Unit Terminal
-
3213-26996 LOCKWASHER, (#10) Stainless Steel, Switch & Sending Unit TerminalLOCKWASHER, (#10) Stainless Steel, Switch & Sending Unit Terminal
-
3399502A12 REGULATOR ASSEMBLY, VoltageREGULATOR ASSEMBLY, Voltage
-
3410-98255 SCREW, (2.25 In.), Voltage Regulator AttachingSCREW, (2.25 In.), Voltage Regulator Attaching
-
3513-26992 LOCKWASHER, (.250) Stainless Steel, Voltage Regulator ScrewLOCKWASHER, (.250) Stainless Steel, Voltage Regulator Screw
-
3610-34354 SCREW, (1.5 In.), Voltage Regulator AttachingSCREW, (1.5 In.), Voltage Regulator Attaching
-
3713-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3811-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
3984-92700A1 WIRE ASSEMBLY, Jumper, Voltage RegulatorWIRE ASSEMBLY, Jumper, Voltage Regulator
-
-84-94227A2 RESISTOR WIRE KITRESISTOR WIRE KIT
