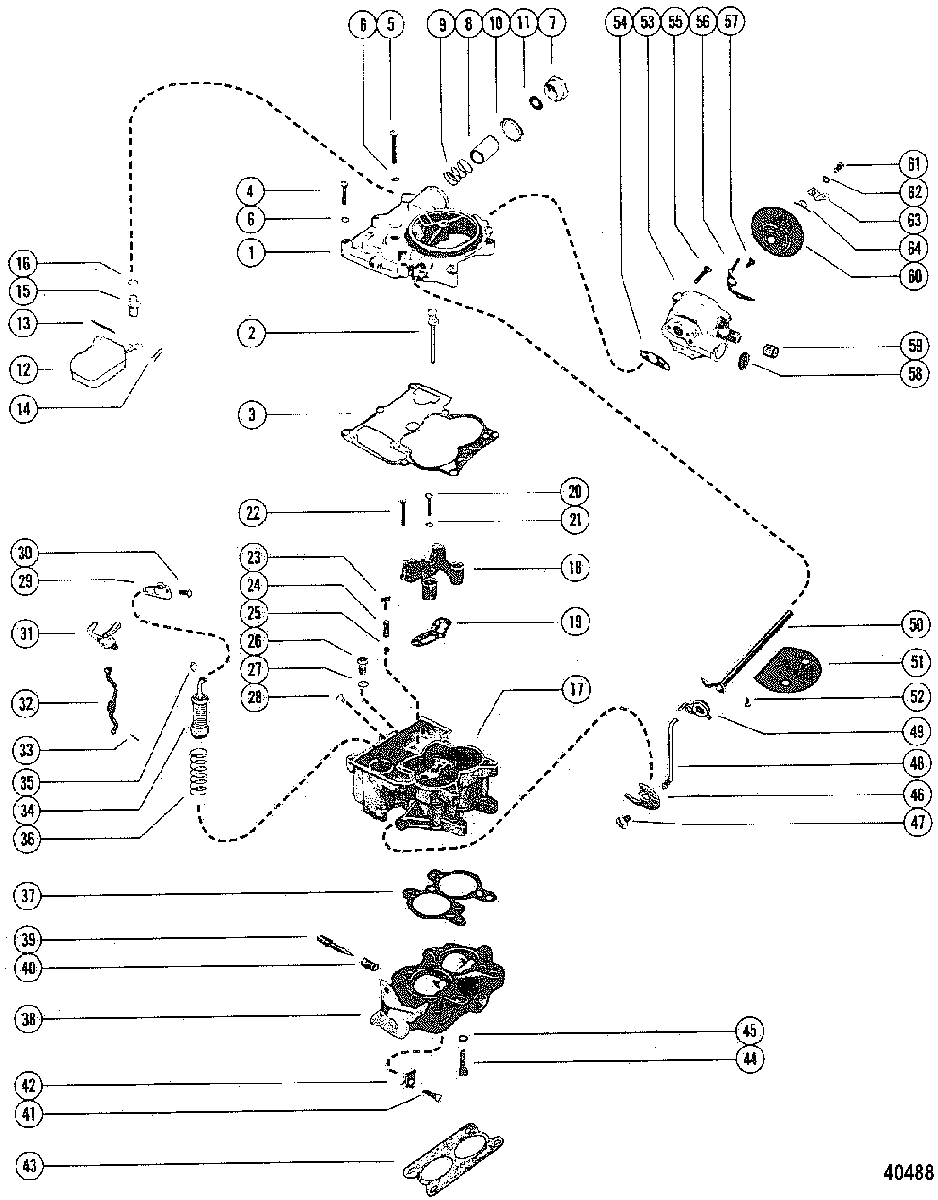

Carburetor Assembly для Mercruiser - 470 MIE MERCURY 224 I/L4 1980-1981 5520115 THRU 6218036
-
№АртикулНазвание
-
-3310-860071A4 CARBURETOR ASSEMBLY, CompleteCARBURETOR ASSEMBLY, Complete
-
1N.S.S. Not Sold Separate, AIR HORNNot Sold Separate, AIR HORN
-
2N.S.S. Not Sold Separate, POWER PISTON ASSEMBLY
(ROCHESTER#7009718)Not Sold Separate, POWER PISTON ASSEMBLY
(ROCHESTER#7009718) -
3N.S.S. Not Sold Separate, GASKET, Air HornNot Sold Separate, GASKET, Air Horn
-
410-33043 SCREW, Air Horn to Float Bowl (SHORT)SCREW, Air Horn to Float Bowl (SHORT)
-
510-33048 SCREW, Air Horn to Float Bowl (LONG)SCREW, Air Horn to Float Bowl (LONG)
-
613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
71397-3330 NUT, Fuel Inlet - Air HornNUT, Fuel Inlet - Air Horn
-
835-53336Q STRAINER, Fuel Inlet - Air HornSTRAINER, Fuel Inlet - Air Horn
-
93302-9032 SPRING, Fuel Inlet - Air HornSPRING, Fuel Inlet - Air Horn
-
10N.S.S. Not Sold Separate, GASKET, Fuel Inlet Nut (Large)Not Sold Separate, GASKET, Fuel Inlet Nut (Large)
-
11N.S.S. Not Sold Separate, GASKET, Fuel Inlet Filter (SMALL)Not Sold Separate, GASKET, Fuel Inlet Filter (SMALL)
-
121397-5837 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
13N.S.S. Not Sold Separate, HINGE-Float to Air Horn
(ROCHESTER #7002081)Not Sold Separate, HINGE-Float to Air Horn
(ROCHESTER #7002081) -
14N.S.S. Not Sold Separate, CLIP, Hinge PinNot Sold Separate, CLIP, Hinge Pin
-
15N.S.S. Not Sold Separate, INLET NEEDLE & SEAT ASSEMBLYNot Sold Separate, INLET NEEDLE & SEAT ASSEMBLY
-
16N.S.S. Not Sold Separate, GASKET, Inlet Needle & SeatNot Sold Separate, GASKET, Inlet Needle & Seat
-
17N.S.S. Not Sold Separate, FLOAT BOWL ASSEMBLY
(ROCHESTER#17052724)Not Sold Separate, FLOAT BOWL ASSEMBLY
(ROCHESTER#17052724) -
18N.S.S. Not Sold Separate, VENTURI CLUSTER ASSEMBLY, Float BowlNot Sold Separate, VENTURI CLUSTER ASSEMBLY, Float Bowl
-
19N.S.S. Not Sold Separate, GASKET, Venturi ClusterNot Sold Separate, GASKET, Venturi Cluster
-
20N.S.S. Not Sold Separate, SCREW, Venturi Cluster to Float Bowl (Center)
ROCHESTER #7009077Not Sold Separate, SCREW, Venturi Cluster to Float Bowl (Center)
ROCHESTER #7009077 -
21N.S.S. Not Sold Separate, GASKETNot Sold Separate, GASKET
-
22N.S.S. Not Sold Separate, SCREW, Venturi Cluster to Float Bowl (Outer)
ROCHESTER #7045762Not Sold Separate, SCREW, Venturi Cluster to Float Bowl (Outer)
ROCHESTER #7045762 -
23N.S.S. Not Sold Separate, GUIDE, Pump Discharge - Float BowlNot Sold Separate, GUIDE, Pump Discharge - Float Bowl
-
24N.S.S. Not Sold Separate, SPRING, Pump Discharge - Float BowlNot Sold Separate, SPRING, Pump Discharge - Float Bowl
-
25N.S.S. Not Sold Separate, BALL, Pump Discharge - Float BowlNot Sold Separate, BALL, Pump Discharge - Float Bowl
-
26N.S.S. Not Sold Separate, POWER VALVE ASSEMBLY, Float BowlNot Sold Separate, POWER VALVE ASSEMBLY, Float Bowl
-
27N.S.S. Not Sold Separate, GASKET, Power ValveNot Sold Separate, GASKET, Power Valve
-
281397-6365 JET, Float Bowl (STANDARD)JET, Float Bowl (STANDARD)
-
291397-2048 LEVER, Pump - Air HornLEVER, Pump - Air Horn
-
3010-33047 SCREW, Air Horn Pump LeverSCREW, Air Horn Pump Lever
-
31N.S.S. Not Sold Separate, PUMP SHAFT & LEVER ASSEMBLY, Air Horn
(ROCHESTER #7038788)Not Sold Separate, PUMP SHAFT & LEVER ASSEMBLY, Air Horn
(ROCHESTER #7038788) -
32N.S.S. Not Sold Separate, ROD, Pump
(ROCHESTER#7038799)Not Sold Separate, ROD, Pump
(ROCHESTER#7038799) -
33N.S.S. Not Sold Separate, CLIP, Retainer - Pump RodNot Sold Separate, CLIP, Retainer - Pump Rod
-
34N.S.S. Not Sold Separate, PUMP ASSEMBLY, Float BowlNot Sold Separate, PUMP ASSEMBLY, Float Bowl
-
35N.S.S. Not Sold Separate, CLIP, Retainer - Float Bowl PumpNot Sold Separate, CLIP, Retainer - Float Bowl Pump
-
36N.S.S. Not Sold Separate, SPRING, Pump Return - Float BowlNot Sold Separate, SPRING, Pump Return - Float Bowl
-
37N.S.S. Not Sold Separate, GASKET, Throttle BodyNot Sold Separate, GASKET, Throttle Body
-
38N.S.S. Not Sold Separate, THROTTLE BODY ASSEMBLYNot Sold Separate, THROTTLE BODY ASSEMBLY
-
39N.S.S. Not Sold Separate, IDLE ADJUSTING NEEDLE, Throttle BodyNot Sold Separate, IDLE ADJUSTING NEEDLE, Throttle Body
-
4024-33050 SPRING, Idle Adjusting NeedleSPRING, Idle Adjusting Needle
-
41N.S.S. Not Sold Separate, IDLE STOP SCREW, Throttle Body
(ROCHESTER #7031547)Not Sold Separate, IDLE STOP SCREW, Throttle Body
(ROCHESTER #7031547) -
4254-39108 CLIP, Idle Stop ScrewCLIP, Idle Stop Screw
-
4327-8079821 GASKET, Carburetor FlangeGASKET, Carburetor Flange
-
4410-33052 SCREW, Throttle Body to Float BowlSCREW, Throttle Body to Float Bowl
-
4513-26992 LOCKWASHER, (.250) Stainless Steel, Throttle Body ScrewLOCKWASHER, (.250) Stainless Steel, Throttle Body Screw
-
461397-8877 CAM, Fast Idle - Float BowlCAM, Fast Idle - Float Bowl
-
4710-33042 SCREW, Fast Idle Cam to Float BowlSCREW, Fast Idle Cam to Float Bowl
-
48N.S.S. Not Sold Separate, ROD, Choke
(ROCHESTER#7038821)Not Sold Separate, ROD, Choke
(ROCHESTER#7038821) -
491397-4257 LEVER/COLLAR ASSEMBLY, ChokeLEVER/COLLAR ASSEMBLY, Choke
-
501397-5840 SHAFT ASSEMBLY, ChokeSHAFT ASSEMBLY, Choke
-
511397-5839 VALVE, Choke - Choke ShaftVALVE, Choke - Choke Shaft
-
52N.S.S. Not Sold Separate, SCREW, Choke Valve to Choke Shaft
(ROCHESTER #7007627)Not Sold Separate, SCREW, Choke Valve to Choke Shaft
(ROCHESTER #7007627) -
531397-5838 HOUSING ASSEMBLY, ChokeHOUSING ASSEMBLY, Choke
-
54N.S.S. Not Sold Separate, GASKET, Choke HousingNot Sold Separate, GASKET, Choke Housing
-
5510-33053 SCREW, Choke Housing to Air HornSCREW, Choke Housing to Air Horn
-
56N.S.S. Not Sold Separate, LEVER ASSEMBLY, Choke Piston
(ROCHESTER #7010051)Not Sold Separate, LEVER ASSEMBLY, Choke Piston
(ROCHESTER #7010051) -
5710-33056 SCREW, Choke Piston Lever to Choke HousingSCREW, Choke Piston Lever to Choke Housing
-
58N.S.S. Not Sold Separate, WELCH PLUG, Choke Housing
(ROCHESTER #7003135)Not Sold Separate, WELCH PLUG, Choke Housing
(ROCHESTER #7003135) -
5922-56772 PLUG, Choke HousingPLUG, Choke Housing
-
6070125A02 COVER, ChokeCOVER, Choke
-
6110-33047 SCREW, Choke Cover to Choke HousingSCREW, Choke Cover to Choke Housing
-
6213-26995 LOCKWASHER, (#8) Stainless Steel, Choke Cover ScrewLOCKWASHER, (#8) Stainless Steel, Choke Cover Screw
-
6386-70879 TERMINALTERMINAL
-
6454-33036 RETAINERRETAINER
-
--1397-6367A1 OVERHAUL KITOVERHAUL KIT
-
--N.S.S. Not Sold Separate, POWER CARBURETOR KIT
(ROCHESTER#7039315)Not Sold Separate, POWER CARBURETOR KIT
(ROCHESTER#7039315) -
--1397-6367A1 GASKET KITGASKET KIT
