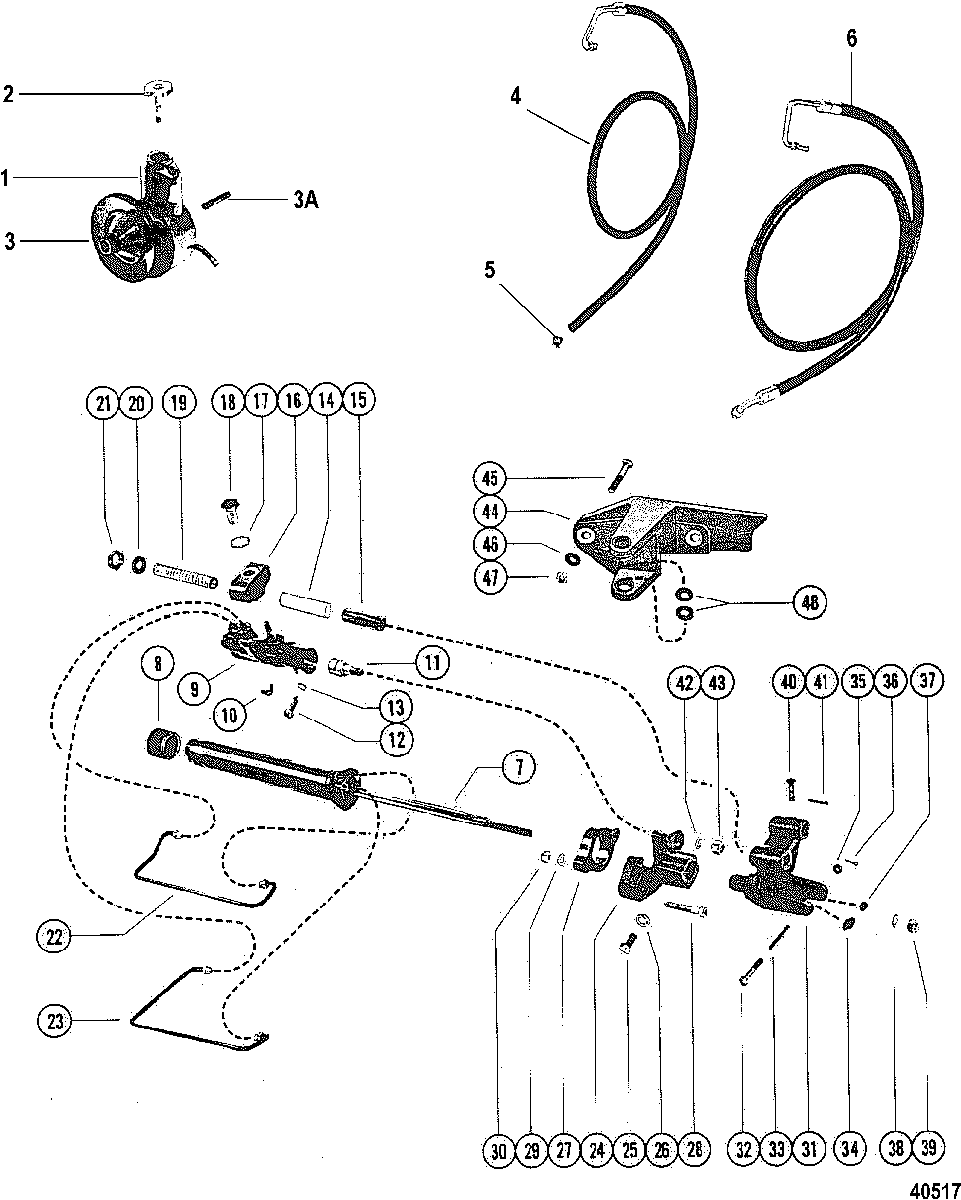

Power Steering Kit(Page 1 of 2) для Mercruiser - 470 MIE MERCURY 224 I/L4 1980-1981 5520115 THRU 6218036
-
№АртикулНазвание
-
-76742A1 POWER STEERING KIT (MerCruiser 470)POWER STEERING KIT (MerCruiser 470)
-
-76742A4 POWER STEERING KIT (MerCruiser 470)POWER STEERING KIT (MerCruiser 470)
-
-76742A4 POWER STEERING KIT (MerCruiser 470)POWER STEERING KIT (MerCruiser 470)
-
190495A3 PUMP ASSEMBLY, Hydraulic, Power SteeringPUMP ASSEMBLY, Hydraulic, Power Steering
-
219-39924 CAP, Filler, Hydraulic PumpCAP, Filler, Hydraulic Pump
-
373873A1 PULLEY, Hydraulic PumpPULLEY, Hydraulic Pump
-
3A16-52938 STUDSTUD
-
432-9884339 HOSE, Return, Power Steering (33")HOSE, Return, Power Steering (33")
-
554-815504206 CLAMP, Return Hose to Hydraulic PumpCLAMP, Return Hose to Hydraulic Pump
-
632-76331 HOSE, Pressure Power Steering (34 1/2 In.)
(76742A 1 Only)HOSE, Pressure Power Steering (34 1/2 In.)
(76742A 1 Only) -
632-77408 HOSE, Pressure Power Steering (39 1/2 In.)
(76742A 2 & 76742A 3)HOSE, Pressure Power Steering (39 1/2 In.)
(76742A 2 & 76742A 3) -
785618T CYLINDER, Boose (25-58224A1 Seal Repair Kit)CYLINDER, Boose (25-58224A1 Seal Repair Kit)
-
826059 CAP (Rubber) Booster CylinderCAP (Rubber) Booster Cylinder
-
9816458A1 VALVE ASSEMBLY, Power Steering (25-58226A1 Seal Repair Kit)VALVE ASSEMBLY, Power Steering (25-58226A1 Seal Repair Kit)
-
1022-67305 FITTING, GreaseFITTING, Grease
-
1116-55109T STUD, Adaptor, Power Steering ValveSTUD, Adaptor, Power Steering Valve
-
1210-37612 SCREW, (.375-16 x 1.250), ClampingSCREW, (.375-16 x 1.250), Clamping
-
1313-35048 LOCKWASHER, (3/8)LOCKWASHER, (3/8)
-
1423-60775 SLEEVE, Spacer
(76742A 1 & 76742A 2)SLEEVE, Spacer
(76742A 1 & 76742A 2) -
1523-60652 SLEEVE, Adjusting, Cable Guide Tube
(76742A 1 & 76742A 2)SLEEVE, Adjusting, Cable Guide Tube
(76742A 1 & 76742A 2) -
1523-87592A1 SLEEVE KIT
(76742A 3 Only)SLEEVE KIT
(76742A 3 Only) -
1655110T ADAPTOR, Cable Guide Tube (DUAL)ADAPTOR, Cable Guide Tube (DUAL)
-
1713-20897 LOCKWASHER, Dual Adaptor NutLOCKWASHER, Dual Adaptor Nut
-
1811-55111 NUT, Dual Adaptor to Power Steering ValveNUT, Dual Adaptor to Power Steering Valve
-
1932-55112 TUBE, Cable GuideTUBE, Cable Guide
-
2012-37985 WASHER, Cable Guide TubeWASHER, Cable Guide Tube
-
2111-8M0041651 NUT, (.875-14), Cable Guide TubeNUT, (.875-14), Cable Guide Tube
-
2232-78895 TUBE, Extending, Power SteeringTUBE, Extending, Power Steering
-
2332-78896 TUBE, Retracting, Power SteeringTUBE, Retracting, Power Steering
-
2455106 BRACKET, Mounting, Transom PlateBRACKET, Mounting, Transom Plate
-
2510-31832 BOLT, (.500-20 x 1.00), Mounting Bracket to Transom PlateBOLT, (.500-20 x 1.00), Mounting Bracket to Transom Plate
-
2613-31848 LOCKWASHER, (.500)LOCKWASHER, (.500)
-
2793520 COLLAR, ClampingCOLLAR, Clamping
-
2810-55108 SCREW, (.375-24 x 2.00), Mounting Bracket to CollarSCREW, (.375-24 x 2.00), Mounting Bracket to Collar
-
2912-20086 WASHER, (.390 x .620 x .060)WASHER, (.390 x .620 x .060)
-
3011-69254 NUTNUT
-
3179988A1 CLEVIS, Rod End
(76742A 1 & 76742A 2)CLEVIS, Rod End
(76742A 1 & 76742A 2) -
3179988A1 CLEVIS, Rod End
(76742A 3 Only)CLEVIS, Rod End
(76742A 3 Only) -
3210-67462 SCREW, (.250-28 x 2.250), Rod End Clevis to Steering ArmSCREW, (.250-28 x 2.250), Rod End Clevis to Steering Arm
-
3323-55118 SPACER, Rod End Clevis ScrewSPACER, Rod End Clevis Screw
-
3423-60776 BUSHING, ClevisBUSHING, Clevis
-
3511-49662 NUT, Rod End Clevis ScrewNUT, Rod End Clevis Screw
-
3618-32665 COTTER PIN, Clevis Screw NutCOTTER PIN, Clevis Screw Nut
-
3723-60503 BUSHING, Steering ArmBUSHING, Steering Arm
-
3812-20086 WASHER, (.390 x .620 x .060), Booster Cylinder Shaft
(76742A 1 & 76742A 2)WASHER, (.390 x .620 x .060), Booster Cylinder Shaft
(76742A 1 & 76742A 2) -
3911-69254 NUT, Booster Cylinder Shaft
(76742A 1 & 76742A 2)NUT, Booster Cylinder Shaft
(76742A 1 & 76742A 2) -
4017-52798 PIN, Clevis, Steering Cable AttachingPIN, Clevis, Steering Cable Attaching
-
4118-46950 COTTER PIN, Clevis Pin RetainingCOTTER PIN, Clevis Pin Retaining
-
4212-20959 WASHER, Valve Adaptor StudWASHER, Valve Adaptor Stud
-
4311-898832 NUT, (.500-20), Valve Adaptor StudNUT, (.500-20), Valve Adaptor Stud
-
4460502A1 BRACKET, Mounting, Power SteeringBRACKET, Mounting, Power Steering
-
4510-60504 BOLT, Power Steering Bracket to Transom PlateBOLT, Power Steering Bracket to Transom Plate
-
4612-20959 WASHERWASHER
-
4711-20958 NUTNUT
-
4812-47533 WASHER, Thermostat, Shim, Pivot ShaftWASHER, Thermostat, Shim, Pivot Shaft
