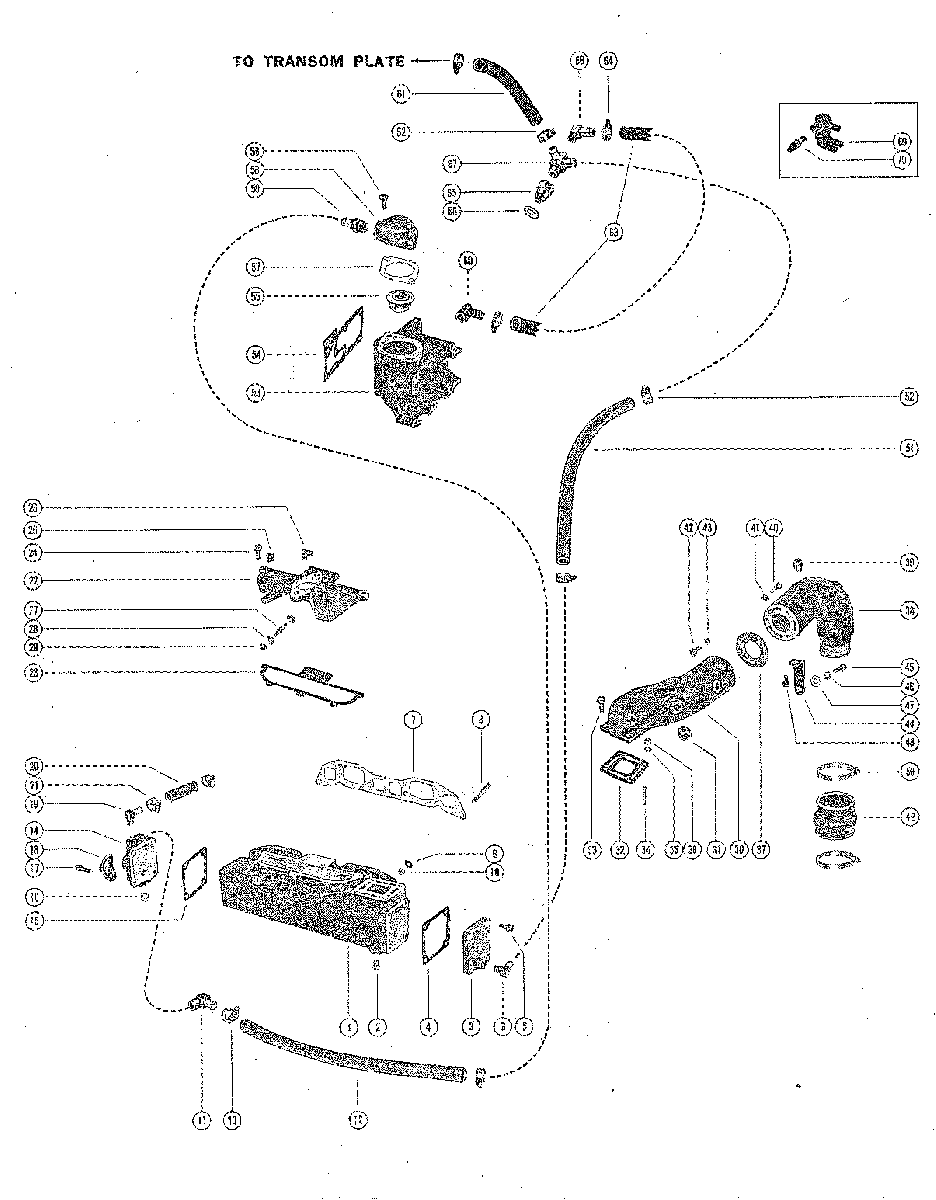

EXHAUST MANIFOLD, INTAKE MANIFOLD AND EXHAUST ELBOW для Mercruiser - 80 RENAULT 80 I/L4 1966-1969 2049045 THRU 2851423
-
№АртикулНазвание
-
145657 EXHAUST MANIFOLD
SEE NOTE SERIAL 00000000-02322195EXHAUST MANIFOLD
SEE NOTE SERIAL 00000000-02322195 -
148469 EXHAUST MANIFOLD
SEE NOTE SERIAL 02322196-09999999EXHAUST MANIFOLD
SEE NOTE SERIAL 02322196-09999999 -
222-328022 PLUG, DRAIN-EXHAUST-EXHAUST MANIFOLDPLUG, DRAIN-EXHAUST-EXHAUST MANIFOLD
-
345631 END CAP, EXHAUST MANIFOLDEND CAP, EXHAUST MANIFOLD
-
427-45647 GASKET, END CAPGASKET, END CAP
-
510-39970 SCREW, END CAP TO EXHAUST MANIFOLD (1")SCREW, END CAP TO EXHAUST MANIFOLD (1")
-
622-46131 ELBOW, END CAPELBOW, END CAP
-
727-46601 GASKET, EXHAUST MANIFOLD TO CYLINDER HEADGASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
-
816-37087 STUD, EXHAUST MANIFOLD TO CYLINDER HEAD (42MM)STUD, EXHAUST MANIFOLD TO CYLINDER HEAD (42MM)
-
912-20084 WASHER, EXHAUST MAINFOLD STUDWASHER, EXHAUST MAINFOLD STUD
-
1011-46603 NUT, EXHAUST MANIFOLD STUDNUT, EXHAUST MANIFOLD STUD
-
1122-32715 ELBOW, WATER DISTRIBUTION BLOCKELBOW, WATER DISTRIBUTION BLOCK
-
1232-47642 HOSE, THERMOSTAT COVER TO WATER DISTRIBUTION BLOCK (19 1/2')HOSE, THERMOSTAT COVER TO WATER DISTRIBUTION BLOCK (19 1/2')
-
1354-815504310 CLAMP, HOSE TO THERMOSTAT COVER AND WATER DISTRIBUTION BLOCKCLAMP, HOSE TO THERMOSTAT COVER AND WATER DISTRIBUTION BLOCK
-
1445623 BLOCK, WATER DISTRIBUTION - EXHAUST MANIFOLDBLOCK, WATER DISTRIBUTION - EXHAUST MANIFOLD
-
1527-45647 GASKET, WATER DISTRIBUTION BLOCKGASKET, WATER DISTRIBUTION BLOCK
-
1622-384071 PLUG, PIPE - WATER DISTRIBUTION BLOCKPLUG, PIPE - WATER DISTRIBUTION BLOCK
-
1710-39970 SCREW, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD (1")SCREW, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD (1")
-
1710-47174A1 SCREW, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD (2 3/8")
SERIAL 00000000-02322195SCREW, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD (2 3/8")
SERIAL 00000000-02322195 -
1710-47174A1 SCREW ASSEMBLY, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD
SERIAL 02322196-09999999SCREW ASSEMBLY, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD
SERIAL 02322196-09999999 -
1710-45981 SCREW, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD (1 1/4")SCREW, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD (1 1/4")
-
1854-72531 EYE, LIFTING - WATER DISTRIBUTION BLOCK SCREWEYE, LIFTING - WATER DISTRIBUTION BLOCK SCREW
-
1922-46131 ELBOW, WATER DISTRIBUTION BLOCKELBOW, WATER DISTRIBUTION BLOCK
-
2032-46716A1 HOSE, WATER DISTRIBUTION BLOCK TO CYLINDER HEAD (2 3/4")HOSE, WATER DISTRIBUTION BLOCK TO CYLINDER HEAD (2 3/4")
-
2154-815504206 CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND CYLINDER HEADCLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND CYLINDER HEAD
-
2245864 COVER, INTAKE MANIFOLD
SERIAL 00000000-02322195COVER, INTAKE MANIFOLD
SERIAL 00000000-02322195 -
2327-49018 GASKET, INTAKE MANIFOLD COVER
SERIAL 00000000-02322195GASKET, INTAKE MANIFOLD COVER
SERIAL 00000000-02322195 -
2247595 COVER, INTAKE MANIFOLD
SERIAL 02322195-09999999COVER, INTAKE MANIFOLD
SERIAL 02322195-09999999 -
2327-49018 GASKET, INTAKE MANIFOLD COVER
SERIAL 02322195-09999999GASKET, INTAKE MANIFOLD COVER
SERIAL 02322195-09999999 -
2410-39970 SCREW, INTAKE MANIFOLD COVER/EXHAUST MANIFOLD (1")SCREW, INTAKE MANIFOLD COVER/EXHAUST MANIFOLD (1")
-
2522-36382 PLUG, INTAKE MANIFOLD COVER (1/4-28)PLUG, INTAKE MANIFOLD COVER (1/4-28)
-
2622-22890 CONNECTOR, INTAKE MANIFOLD COVER TO CHOKE PIPECONNECTOR, INTAKE MANIFOLD COVER TO CHOKE PIPE
-
2716-38525 STUD, THROTTLE CABLE TO INTAKE MANIFOLD COVERSTUD, THROTTLE CABLE TO INTAKE MANIFOLD COVER
-
2812-24664 WASHER, THROTTLE CABLE STUDWASHER, THROTTLE CABLE STUD
-
2911-826709109 NUT, THROTTLE CABLE STUDNUT, THROTTLE CABLE STUD
-
3045616 ELBOW, MANIFOLD
SERIAL 00000000-02322195ELBOW, MANIFOLD
SERIAL 00000000-02322195 -
3045616 ELBOW, MANIFOLD
SERIAL 02322196-09999999ELBOW, MANIFOLD
SERIAL 02322196-09999999 -
3122-416223 PLUG, PIPE - MANIFOLD ELBOW (3/4-14)PLUG, PIPE - MANIFOLD ELBOW (3/4-14)
-
3227-45649 GASKET, MANIFOLD ELBOWGASKET, MANIFOLD ELBOW
-
3310-45981 SCREW, MANIFOLD ELBOW TO EXHAUST MANIFOLD (1 1/4")SCREW, MANIFOLD ELBOW TO EXHAUST MANIFOLD (1 1/4")
-
3416-21553 STUD, MANIFOLD ELBOW TO EXHAUST MANIFOLD (1 1/2")STUD, MANIFOLD ELBOW TO EXHAUST MANIFOLD (1 1/2")
-
3513-35389 LOCKWASHER, MANIFOLD ELBOW STUDLOCKWASHER, MANIFOLD ELBOW STUD
-
3611-22053 NUT, MANIFOLD ELBOW STUDNUT, MANIFOLD ELBOW STUD
-
3727-45648 GASKET, EXHAUST ELBOW TO MANIFOLD ELBOWGASKET, EXHAUST ELBOW TO MANIFOLD ELBOW
-
3845617 ELBOW, EXHAUSTELBOW, EXHAUST
-
3922-384071 PLUG, PIPE - EXHAUST ELBOW (1/2-14)PLUG, PIPE - EXHAUST ELBOW (1/2-14)
-
4010-35386 SCREW, EXHAUST ELBOW TO MANIFOLD ELBOW (1")
SERIAL 00000000-02322195SCREW, EXHAUST ELBOW TO MANIFOLD ELBOW (1")
SERIAL 00000000-02322195 -
4016-21553 STUD, EXHAUST ELBOW TO MANIFOLD ELBOW (1 1/2")
SERIAL 02322196-09999999STUD, EXHAUST ELBOW TO MANIFOLD ELBOW (1 1/2")
SERIAL 02322196-09999999 -
4113-35389 LOCKWASHER, EXHAUST ELBOW SCREWLOCKWASHER, EXHAUST ELBOW SCREW
-
4210-20639 SCREW, MANIFOLD ELBOW TO EXHAUST ELBOW (1 1/8")SCREW, MANIFOLD ELBOW TO EXHAUST ELBOW (1 1/8")
-
4311-22053 NUT, MANIFOLD ELBOW SCREWNUT, MANIFOLD ELBOW SCREW
-
4445644 BRACKET, MOUNTING - EXHAUST ELBOWBRACKET, MOUNTING - EXHAUST ELBOW
-
4510-34353 SCREW, MOUNTING BRACKET TO REAR MOUNT HOUSING (1")SCREW, MOUNTING BRACKET TO REAR MOUNT HOUSING (1")
-
4613-35048 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
4712-38622 WASHER, MOUNTING BRACKET SCREWWASHER, MOUNTING BRACKET SCREW
-
4810-35765A1 SCREW, MOUNTING BRACKET TO EXHAUST ELBOW (3/4")SCREW, MOUNTING BRACKET TO EXHAUST ELBOW (3/4")
-
4938184 BELLOWS, EXHAUSTBELLOWS, EXHAUST
-
5054-815504352 CLAMP, EXHAUST BELLOWS TO TRANSOM PLATE AND EXHAUST ELBOWCLAMP, EXHAUST BELLOWS TO TRANSOM PLATE AND EXHAUST ELBOW
-
5132-46716A1 HOSE, END CAP TO CHECK VALVE TEE (16 1/2")HOSE, END CAP TO CHECK VALVE TEE (16 1/2")
-
5254-815504206 CLAMP, HOSE TO END CAP AND CHECK VALVE TEECLAMP, HOSE TO END CAP AND CHECK VALVE TEE
-
5345618 HOUSING, FRONT MOUNTHOUSING, FRONT MOUNT
-
5427-45645 GASKET, FRONT MOUNT HOUSING TO CYLINDER HEADGASKET, FRONT MOUNT HOUSING TO CYLINDER HEAD
-
558M0089715 THERMOSTATTHERMOSTAT
-
5645629 COVER, THERMOSTATCOVER, THERMOSTAT
-
5727-38556 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
5810-21077 SCREW, THERMOSTAT COVER TO FRONT MOUNT HOUSING (7/8")SCREW, THERMOSTAT COVER TO FRONT MOUNT HOUSING (7/8")
-
5922-33066 FITTING, THERMOSTAT COVERFITTING, THERMOSTAT COVER
-
6022-38565 FITTING, FRONT MOUNT HOUSINGFITTING, FRONT MOUNT HOUSING
-
6132-46716A1 HOSE, CHECK VALVE TEE TO TRANSOM (9")HOSE, CHECK VALVE TEE TO TRANSOM (9")
-
6254-815504206 CLAMP, HOSE TO CHECK VALVE TEE AND TRANSOMCLAMP, HOSE TO CHECK VALVE TEE AND TRANSOM
-
6332-46716A1 HOSE, CHECK VALVE ELBOW TO FRONT MOUNT HOUSING (6 3/4")
SERIAL 00000000-02640854HOSE, CHECK VALVE ELBOW TO FRONT MOUNT HOUSING (6 3/4")
SERIAL 00000000-02640854 -
6454-815504206 CLAMP, HOSE TO CHECK VALVE ELBOW AND FRONT MOUNTING HOUSING
SERIAL 00000000-02640854CLAMP, HOSE TO CHECK VALVE ELBOW AND FRONT MOUNTING HOUSING
SERIAL 00000000-02640854 -
6545654 CHECK VALVE, CYLINDER BLOCK
SERIAL 00000000-02640854CHECK VALVE, CYLINDER BLOCK
SERIAL 00000000-02640854 -
6612-46519 WASHER, CHECK VALVE
SERIAL 00000000-02640854WASHER, CHECK VALVE
SERIAL 00000000-02640854 -
6722-45639 TEE, CHECK VALVE
SERIAL 00000000-02640854TEE, CHECK VALVE
SERIAL 00000000-02640854 -
6822-46131 ELBOW, CHECK VALVE TEE
SERIAL 00000000-02640854ELBOW, CHECK VALVE TEE
SERIAL 00000000-02640854 -
6332-54189 HOSE, CHECK VALVE ELBOW TO FRONT MOUNT HOUSING (6 3/4")
SERIAL 02640855-09999999HOSE, CHECK VALVE ELBOW TO FRONT MOUNT HOUSING (6 3/4")
SERIAL 02640855-09999999 -
6454-815504206 CLAMP, HOSE TO CHECK VALVE ELBOW AND FRONT MOUNTING HOUSING
SERIAL 02640855-09999999CLAMP, HOSE TO CHECK VALVE ELBOW AND FRONT MOUNTING HOUSING
SERIAL 02640855-09999999 -
6921-57790A1 CHECK VALVE ASSEMBLY, CYLINDER BLOCK
SERIAL 02640855-09999999CHECK VALVE ASSEMBLY, CYLINDER BLOCK
SERIAL 02640855-09999999 -
7022-54107 ADAPTOR, CHECK VAVLE
SERIAL 02640855-09999999ADAPTOR, CHECK VAVLE
SERIAL 02640855-09999999 -
-27-46564A1 GASKET SET (CYLINDER HEAD)GASKET SET (CYLINDER HEAD)
-
-27-46601A1 GASKET SET (MANIFOLD)GASKET SET (MANIFOLD)
-
-27-46536A1 GASKET SET (MISCELLANEOUS)GASKET SET (MISCELLANEOUS)
