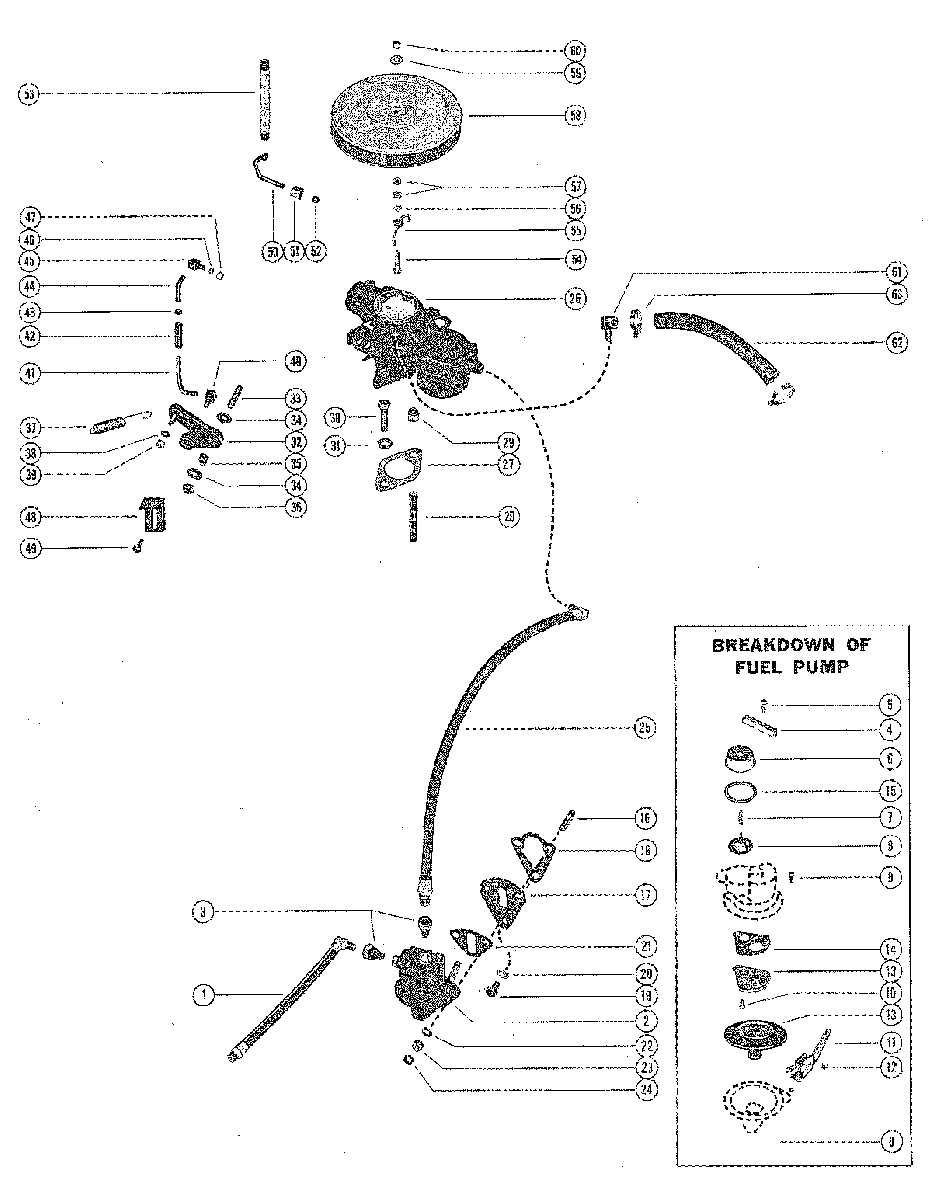

FUEL PUMP, FUEL LINES AND CARBURETOR (S/N-2322196 & UP) для Mercruiser - 80 RENAULT 80 I/L4 1966-1969 2049045 THRU 2851423
-
№АртикулНазвание
-
132-46135 FUEL LINE, INLET - FUEL TANK TO FUEL PUMP (16 1/2")FUEL LINE, INLET - FUEL TANK TO FUEL PUMP (16 1/2")
-
246666A1 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
322-46941 FITTING, FUEL PUMP INLET AND OUTLETFITTING, FUEL PUMP INLET AND OUTLET
-
446669 CLAMP ASSEMBLY, FUEL PUMP CAPCLAMP ASSEMBLY, FUEL PUMP CAP
-
510-46670 SCREW, CLAMP TO FUEL PUMPSCREW, CLAMP TO FUEL PUMP
-
646671 CAP, FUEL PUMP FILTERCAP, FUEL PUMP FILTER
-
724-46673 SPRING, TENSION - FUEL PUMP FILTERSPRING, TENSION - FUEL PUMP FILTER
-
846674 FILTER, FUEL PUMPFILTER, FUEL PUMP
-
910-46675 SCREW, FUEL PUMP CLAMPINGSCREW, FUEL PUMP CLAMPING
-
1010-46678 SCREW, CHECK VALUE PLATE TO FUEL PUMPSCREW, CHECK VALUE PLATE TO FUEL PUMP
-
1146668 ARM, FUEL PUMPARM, FUEL PUMP
-
1210-46676 SCREW, ARM TO FUEL PUMPSCREW, ARM TO FUEL PUMP
-
1327-46667 REPAIR KIT, FUEL PUMPREPAIR KIT, FUEL PUMP
-
1427-46677 GASKET, CHECK VALUE PLATE TO FUEL PUMPGASKET, CHECK VALUE PLATE TO FUEL PUMP
-
1527-46672 GASKET, FUEL PUMP FILTER CAPGASKET, FUEL PUMP FILTER CAP
-
1616-46522 STUD, FUEL PUMP TO CYLINDER BLOCKSTUD, FUEL PUMP TO CYLINDER BLOCK
-
1746520 PLATE, MOUNTING- FUEL PUMPPLATE, MOUNTING- FUEL PUMP
-
1827-58511 GASKET, FUEL PUMP MOUNTING PLATEGASKET, FUEL PUMP MOUNTING PLATE
-
1910-46517 SCREW, FUEL PUMP MOUNTING PLATE TO CYLINDER BLOCK (20MM)SCREW, FUEL PUMP MOUNTING PLATE TO CYLINDER BLOCK (20MM)
-
2013-46523 LOCKWASHER, FUEL PUMP MOUNTING PLATE SCREWLOCKWASHER, FUEL PUMP MOUNTING PLATE SCREW
-
2127-37137 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
2212-20084 EWASHER, FUEL PUMP STUDEWASHER, FUEL PUMP STUD
-
2311-37140 NUT, FUEL LKPUMP STIUDNUT, FUEL LKPUMP STIUD
-
2411-46679 NUT, LOCKING- FUEL PUMP STUDNUT, LOCKING- FUEL PUMP STUD
-
2532-47593 FUEL LINE, FUEL PUMP TO CABURETOR (22 1/2")FUEL LINE, FUEL PUMP TO CABURETOR (22 1/2")
-
261346-2770 CARBURETOR ASSEMBLY
SEE C10 FOR PARTS BREAKDOWNCARBURETOR ASSEMBLY
SEE C10 FOR PARTS BREAKDOWN -
2727-45865 GASKET, CARBURETORGASKET, CARBURETOR
-
2816-32908 STUD, CARBURETOR TO INTAKE MANIFOLD COVER ( 1 5/1 6")STUD, CARBURETOR TO INTAKE MANIFOLD COVER ( 1 5/1 6")
-
2911-23161 NUT, CARBURETOR STUDNUT, CARBURETOR STUD
-
3010-34354 SCREW, CARBURETOR TO INTAKE MANIFOLD COVER (1 1/2")SCREW, CARBURETOR TO INTAKE MANIFOLD COVER (1 1/2")
-
3112-20553 WASHER, CARBURETOR SCREWWASHER, CARBURETOR SCREW
-
3247596 LEVER, THROTTLELEVER, THROTTLE
-
3316-21553 STUD, THROTTLE LEVER TO EXHAUST MANIFOLD BODY (1 1/2")STUD, THROTTLE LEVER TO EXHAUST MANIFOLD BODY (1 1/2")
-
3412-26825 WASHER, THROTTLE LEVER STUDWASHER, THROTTLE LEVER STUD
-
3523-31831 SLEEVE, THROTTLE LEVER STUDSLEEVE, THROTTLE LEVER STUD
-
3611-826709111 NUT, THROTTLE LEVER STUDNUT, THROTTLE LEVER STUD
-
3724-33453 SPRING, THROTTLE RETURN- THROTTLE LEVERSPRING, THROTTLE RETURN- THROTTLE LEVER
-
3812-30164 WASHER, THROTTLE CABLE TO THROTTLE LEVERWASHER, THROTTLE CABLE TO THROTTLE LEVER
-
3911-20110 NUT, THROTTLE CABLE TO THROTTLE LEVELNUT, THROTTLE CABLE TO THROTTLE LEVEL
-
4047599 SWIVEL, LINK ROD TO THROTTLE LEVELSWIVEL, LINK ROD TO THROTTLE LEVEL
-
4147597 LINK ROD, THROTTLE LEVER SWIVEL TO ADVESTING SLEEVE (LOWER)LINK ROD, THROTTLE LEVER SWIVEL TO ADVESTING SLEEVE (LOWER)
-
4233393 SLEEVE, ADJUSTING- LINK RODSLEEVE, ADJUSTING- LINK ROD
-
4311-25168 NUT, JAM- ADJUSTING SLEEVE TO UPPER LINK RODNUT, JAM- ADJUSTING SLEEVE TO UPPER LINK ROD
-
4447598 LINK ROD, CARBURETOR SWIVEL TO ADJUSTING SLEEVGE (UPPER)LINK ROD, CARBURETOR SWIVEL TO ADJUSTING SLEEVGE (UPPER)
-
4538983 SWIVEL, LIKN ROD TO CARBURETORSWIVEL, LIKN ROD TO CARBURETOR
-
4612-30164 WASHER, LINK ROD SWIVELWASHER, LINK ROD SWIVEL
-
4711-20110 NUT, LINK ROD SWIVEL TO CARBURETORNUT, LINK ROD SWIVEL TO CARBURETOR
-
4829013 IDLE STOPIDLE STOP
-
4910-38787 SCREW, IDLE STOP TO EXHAUSE MANIFOLD (3/4")SCREW, IDLE STOP TO EXHAUSE MANIFOLD (3/4")
-
5032-47600A1 PIPE ASSEMBLY, CHOKE- CARBURETOR TO INTAKE MANIFOLD COVERPIPE ASSEMBLY, CHOKE- CARBURETOR TO INTAKE MANIFOLD COVER
-
5111-21310 NUT, CHOKE PIPE TO CARBURETORNUT, CHOKE PIPE TO CARBURETOR
-
5223-21309 SLEEVE, CHOKE PIPESLEEVE, CHOKE PIPE
-
5333229 COVERING, CHOKE PIPECOVERING, CHOKE PIPE
-
5410-35156 SCREW, FLAME ARRESTOR TO CARBURETOR (1 1/4")SCREW, FLAME ARRESTOR TO CARBURETOR (1 1/4")
-
5546129 WIRE, MOUNTING- FLAME ARRESTORWIRE, MOUNTING- FLAME ARRESTOR
-
5612-22937 WASHER, FLAME ARRESTOR SCREW (BOTTOM)WASHER, FLAME ARRESTOR SCREW (BOTTOM)
-
5711-8267139 NUT, JAM- FLAME ARRESTOR SCREWNUT, JAM- FLAME ARRESTOR SCREW
-
5845630 FLAME ARRESTRO CARBURETORFLAME ARRESTRO CARBURETOR
-
5912-22937 WASHER, FLAME ARRESTOR SCREW (TOP)WASHER, FLAME ARRESTOR SCREW (TOP)
-
6011-826709109 NUT, FLAME ARRESTOR SCREWNUT, FLAME ARRESTOR SCREW
-
6122-49019 FITTING, CARBURETOR TO VENT HOSEFITTING, CARBURETOR TO VENT HOSE
-
6232-62060 HOSE, VENT- CARBURETOR TO TOP COVER (6 3/4)HOSE, VENT- CARBURETOR TO TOP COVER (6 3/4)
-
6354-815504310 CLAMP, VENT HOSE TO CARBURETOR AND TOP COVERCLAMP, VENT HOSE TO CARBURETOR AND TOP COVER
