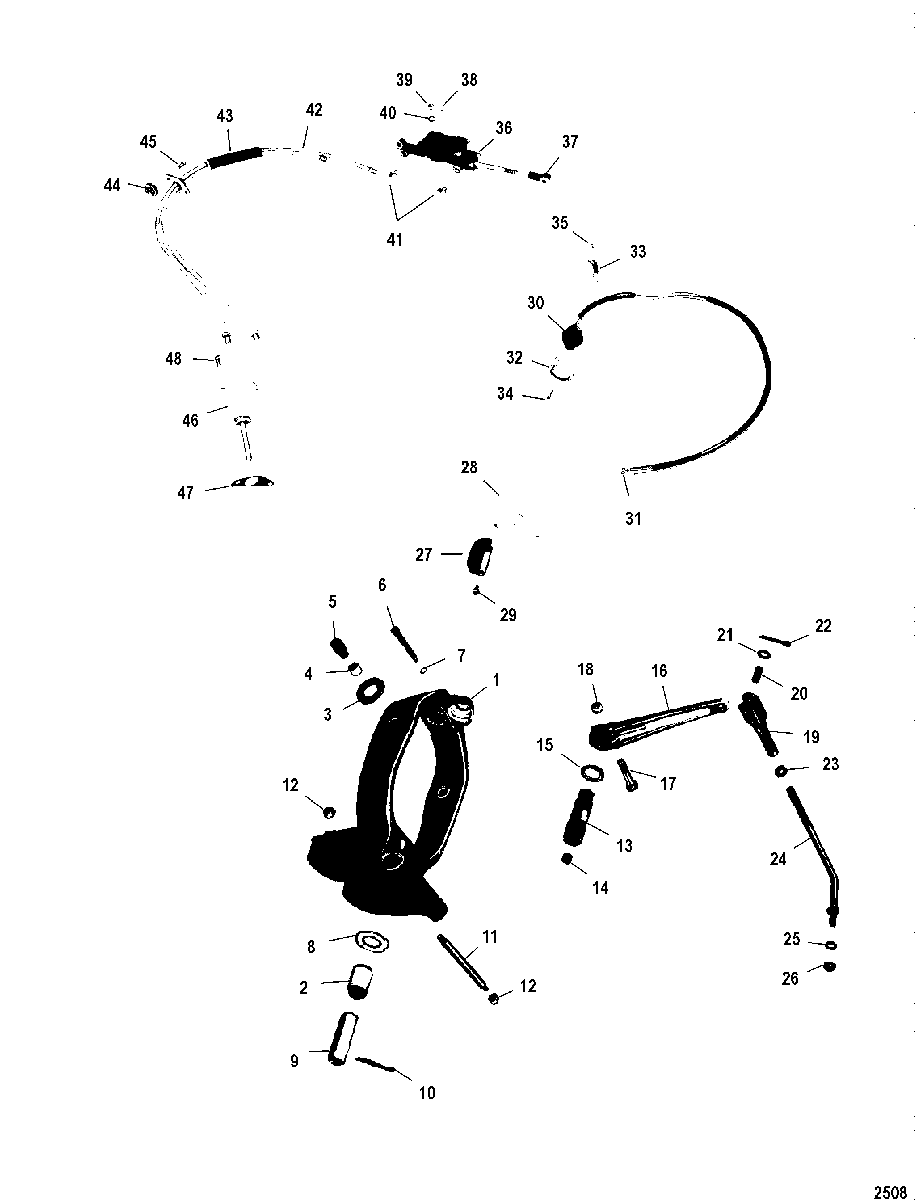

GIMBAL RING ASSEMBLY, SENDER/RECIEVER HOUSING для Mercruiser - 90 RENAULT 96 I/L4 1970-1972 2851424 THRU 3226957
-
№АртикулНазвание
-
138161A2 GIMBAL RING ASSEMBLYGIMBAL RING ASSEMBLY
-
223-38198 BUSHING (Lower)BUSHING (Lower)
-
312-38268 WASHERWASHER
-
423-38267 BUSHING-Hinge PinBUSHING-Hinge Pin
-
517-55803 HINGE PIN- Gimbal Ring to Bell HousingHINGE PIN- Gimbal Ring to Bell Housing
-
610-33022 SCREW-Upper Swivel Shaft Retaining-Gimbal RingSCREW-Upper Swivel Shaft Retaining-Gimbal Ring
-
712-20546 WASHER-Upper Swivel Shaft Retaining ScrewWASHER-Upper Swivel Shaft Retaining Screw
-
812-32518 WASHER-Gimbal Housing to Gimbal Ring (Lower)WASHER-Gimbal Housing to Gimbal Ring (Lower)
-
917-38199 SWIVEL PIN-Gimbal Housing to Gimbal Ring (Lower)SWIVEL PIN-Gimbal Housing to Gimbal Ring (Lower)
-
1018-34212 COTTER PIN-Retaining-Lower Swivel PinCOTTER PIN-Retaining-Lower Swivel Pin
-
1117-38269 TILT PIN-Gimbal RingTILT PIN-Gimbal Ring
-
1211-82670911 NUT-Gimbal Ring Tilt PinNUT-Gimbal Ring Tilt Pin
-
1332582 UPPER SWIVEL SHAFT-Gimbal Ring to Gimbal HousingUPPER SWIVEL SHAFT-Gimbal Ring to Gimbal Housing
-
1422-32561 PIPE PLUG-Upper Swivel ShaftPIPE PLUG-Upper Swivel Shaft
-
1512-32996 WASHER-Upper Swivel Shaft
(.015)WASHER-Upper Swivel Shaft
(.015) -
1512-32997 WASHER-Upper Swivel Shaft
(.063)WASHER-Upper Swivel Shaft
(.063) -
1638174 STEERING LEVER-Upper Swivel ShaftSTEERING LEVER-Upper Swivel Shaft
-
1710-807204 SCREW-Steering Lever to Upper Swivel Shaft (2 IN.)SCREW-Steering Lever to Upper Swivel Shaft (2 IN.)
-
1811-20696 NUT-Steering Lever ScrewNUT-Steering Lever Screw
-
1938192 YOKE-Steering Link RodYOKE-Steering Link Rod
-
2017-38864A1 SWIVEL PIN ASSEMBLY-Yoke to Steering LeverSWIVEL PIN ASSEMBLY-Yoke to Steering Lever
-
2112-29629 WASHERWASHER
-
2218-29623 COTTER PINCOTTER PIN
-
2311-20101 JAM NUT-Steering Link RodJAM NUT-Steering Link Rod
-
2438187A1 STEERING LINK ROD ASSEMBLYSTEERING LINK ROD ASSEMBLY
-
2512-20086 WASHER-Steering Link RodWASHER-Steering Link Rod
-
2611-8M0042636 NUT-Steering Link Rod to Steering CableNUT-Steering Link Rod to Steering Cable
-
2738886 BUMPER-Gimbal RingBUMPER-Gimbal Ring
-
2849343 LEVER-Tilt Stop Switch Actuating-Gimbal RingLEVER-Tilt Stop Switch Actuating-Gimbal Ring
-
2910-31903 SCREW-Actuating Lever and Bumper to Gimbal Ring (3/8 IN.)SCREW-Actuating Lever and Bumper to Gimbal Ring (3/8 IN.)
-
3045036A1 TILT STOP SWITCH ASSEMBLY-Gimbal RingTILT STOP SWITCH ASSEMBLY-Gimbal Ring
-
31NSS TERMINAL-Stop SwitchTERMINAL-Stop Switch
-
3231899 RETAING PLATE-Tilt Stop Switch to Gimbal RingRETAING PLATE-Tilt Stop Switch to Gimbal Ring
-
3332637 STRAP-Tilt Stop Switch RetainingSTRAP-Tilt Stop Switch Retaining
-
3410-34994 SCREW-Retaining Plate & Strap to Gimbal Ring (1 IN.)SCREW-Retaining Plate & Strap to Gimbal Ring (1 IN.)
-
3511-20110 NUT-Retaining Plate & Strap ScrewNUT-Retaining Plate & Strap Screw
-
3638179A4 SENDER HOUSING ASSEMBLYSENDER HOUSING ASSEMBLY
-
3738211 ROD END-Sender Housing PistonROD END-Sender Housing Piston
-
3810-62269 VENT SCREW-Sender HousingVENT SCREW-Sender Housing
-
3910-79953Q04 FILLER SCREW-Sender HousingFILLER SCREW-Sender Housing
-
4012-191833 WASHER-Filler ScrewWASHER-Filler Screw
-
4122-38214 ELBOW-Sender Housing
(90 Degree)ELBOW-Sender Housing
(90 Degree) -
4122-56827 ELBOW-Sender Housing
(45 Degree)ELBOW-Sender Housing
(45 Degree) -
4232-38300A4 HYDRAULIC TUBING ASSEMBLY-Sender Housing to Receiver HousingHYDRAULIC TUBING ASSEMBLY-Sender Housing to Receiver Housing
-
4323-38203 SLEEVE-Hydraulic TubingSLEEVE-Hydraulic Tubing
-
4423-38201 BUSHING-Seal-Hydraulic Tubing CoverBUSHING-Seal-Hydraulic Tubing Cover
-
4510-39965 SCREW-Hydraulic Tubing Cover to Gimgal Housing (3/4 IN.)SCREW-Hydraulic Tubing Cover to Gimgal Housing (3/4 IN.)
-
4638175A2 RECEIVER HOUSING ASSEMBLYRECEIVER HOUSING ASSEMBLY
-
4727-38263 GASKET-Receiver HousingGASKET-Receiver Housing
-
4810-21722 SCREW-Receiver Housing to Bell Housing (5/8 IN.)SCREW-Receiver Housing to Bell Housing (5/8 IN.)
