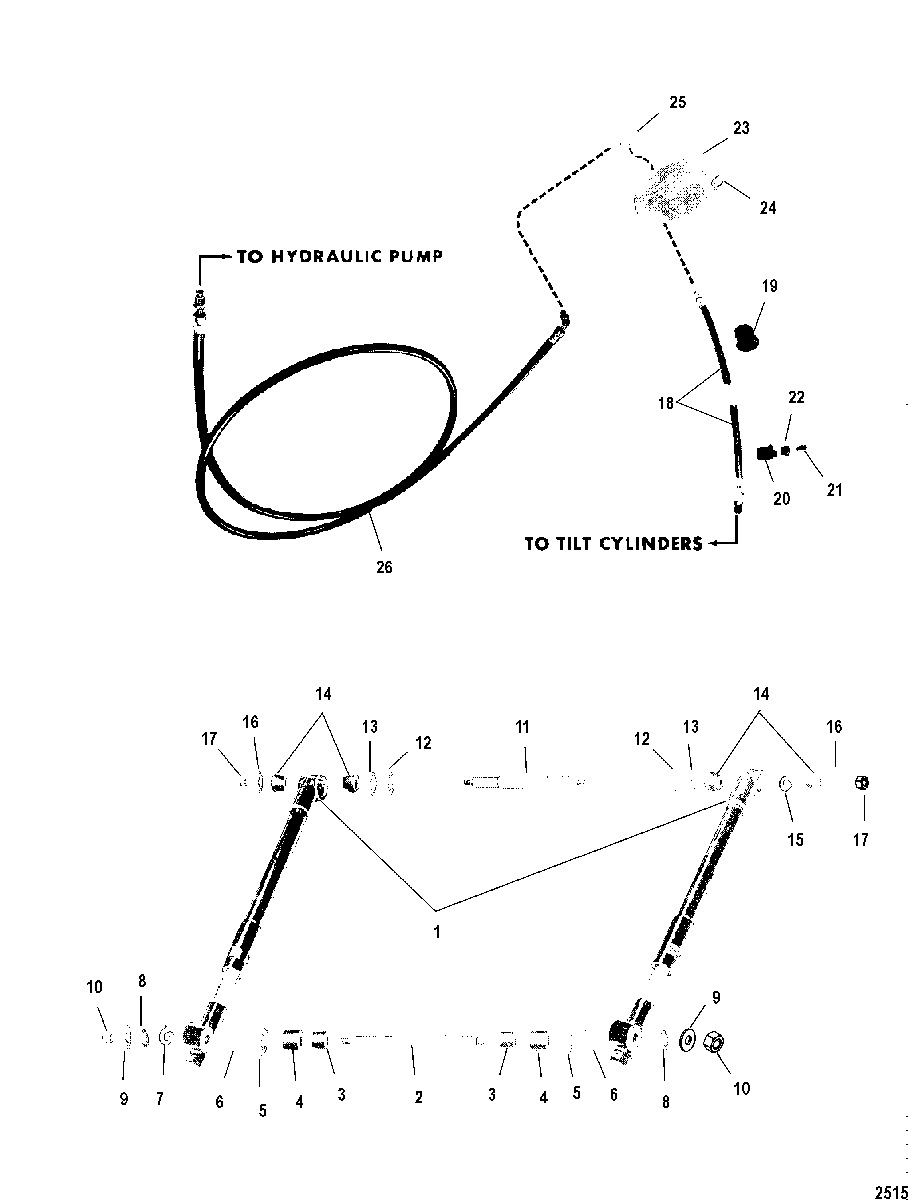

TILT CYLINDERS AND HYDRAULIC HOSES для Mercruiser - 90 (Sterndrive) 1970-1972 2898020 THRU 3225967
-
№АртикулНазвание
-
145375A1 TILT CYLINDER ASSEMBLYTILT CYLINDER ASSEMBLY
-
217-39641 ANCHOR PIN-Tilt Cylinder to Drive Shaft HousingANCHOR PIN-Tilt Cylinder to Drive Shaft Housing
-
323-39639 SLEEVE-Drive Shaft Housing Anchor PinSLEEVE-Drive Shaft Housing Anchor Pin
-
423-39638 SLEEVE-Rubber-Drive Shaft Housing Anchor PinSLEEVE-Rubber-Drive Shaft Housing Anchor Pin
-
512-39637 WASHER-Drive Shaft Housing Anchor PInWASHER-Drive Shaft Housing Anchor PIn
-
613-37642 WAVE WASHER-Drive Shaft Housing Anchor PInWAVE WASHER-Drive Shaft Housing Anchor PIn
-
724-46312 SPRING-Drive Shaft Housing Anchor PinSPRING-Drive Shaft Housing Anchor Pin
-
812-39782 WASHER-Rubber-Drive Shaft Housing Anchor PinWASHER-Rubber-Drive Shaft Housing Anchor Pin
-
912-8M0042641 WASHER-Drive Shaft Housing Anchor PinWASHER-Drive Shaft Housing Anchor Pin
-
1011-82671013 NUT-Drive Shaft Housing Anchor PinNUT-Drive Shaft Housing Anchor Pin
-
1117-39640 ANCHOR PIN-Tilt Cylinder to Gimbal RingANCHOR PIN-Tilt Cylinder to Gimbal Ring
-
1212-39636 WASHER-Gimbal Ring Anchor PinWASHER-Gimbal Ring Anchor Pin
-
1312-36041 WASHER-Gimbal Ring Anchor PinWASHER-Gimbal Ring Anchor Pin
-
1423-35278 BUSHING-Tapered-Gimbal Ring Anchor PinBUSHING-Tapered-Gimbal Ring Anchor Pin
-
1524-46312 SPRING-Gimbal Ring Anchor PinSPRING-Gimbal Ring Anchor Pin
-
1612-36042 WASHER-Gimbal Ring Anchor PinWASHER-Gimbal Ring Anchor Pin
-
1711-82670911 NUT-Gimbal Ring Anchor PinNUT-Gimbal Ring Anchor Pin
-
1832-38755 HYDRAULIC HOSE-Elbow to Tilt Cylinders (25-3/4 IN.)HYDRAULIC HOSE-Elbow to Tilt Cylinders (25-3/4 IN.)
-
1923-35977 GROMMET-Hydraulic HoseGROMMET-Hydraulic Hose
-
2054-22875 CLIP-Hydraulic Hose
(NYLON)CLIP-Hydraulic Hose
(NYLON) -
2054-28700 CLIP-Hydraulic Hose to Transom Plate
(Steel)CLIP-Hydraulic Hose to Transom Plate
(Steel) -
2110-35401 SCREW-Hydraulic Hose Clip
(1 IN.)SCREW-Hydraulic Hose Clip
(1 IN.) -
2110-98256 SCREW-Hydraulic Hose Clip to Transom Plate
(1/2 IN.)SCREW-Hydraulic Hose Clip to Transom Plate
(1/2 IN.) -
2110-57143 SCREW-Hydraulic Hose Clip
(3/4 IN.)SCREW-Hydraulic Hose Clip
(3/4 IN.) -
228M0084613 D-WASHER-Hydraulic Hose Clip ScrewD-WASHER-Hydraulic Hose Clip Screw
-
2213-26992 LOCKWASHER-Hydraulic Hose Clip ScrewLOCKWASHER-Hydraulic Hose Clip Screw
-
2349200A2 COVER ASSEMBLY-InletCOVER ASSEMBLY-Inlet
-
2412-49199 WASHER-Inlet CoverWASHER-Inlet Cover
-
2522-38752 ELBOW-Connecting Hose to Tilt CylindersELBOW-Connecting Hose to Tilt Cylinders
-
2632-57114 HYDRAULIC HOSE-Elbow to Hydraulic Pump (25 IN.)HYDRAULIC HOSE-Elbow to Hydraulic Pump (25 IN.)
