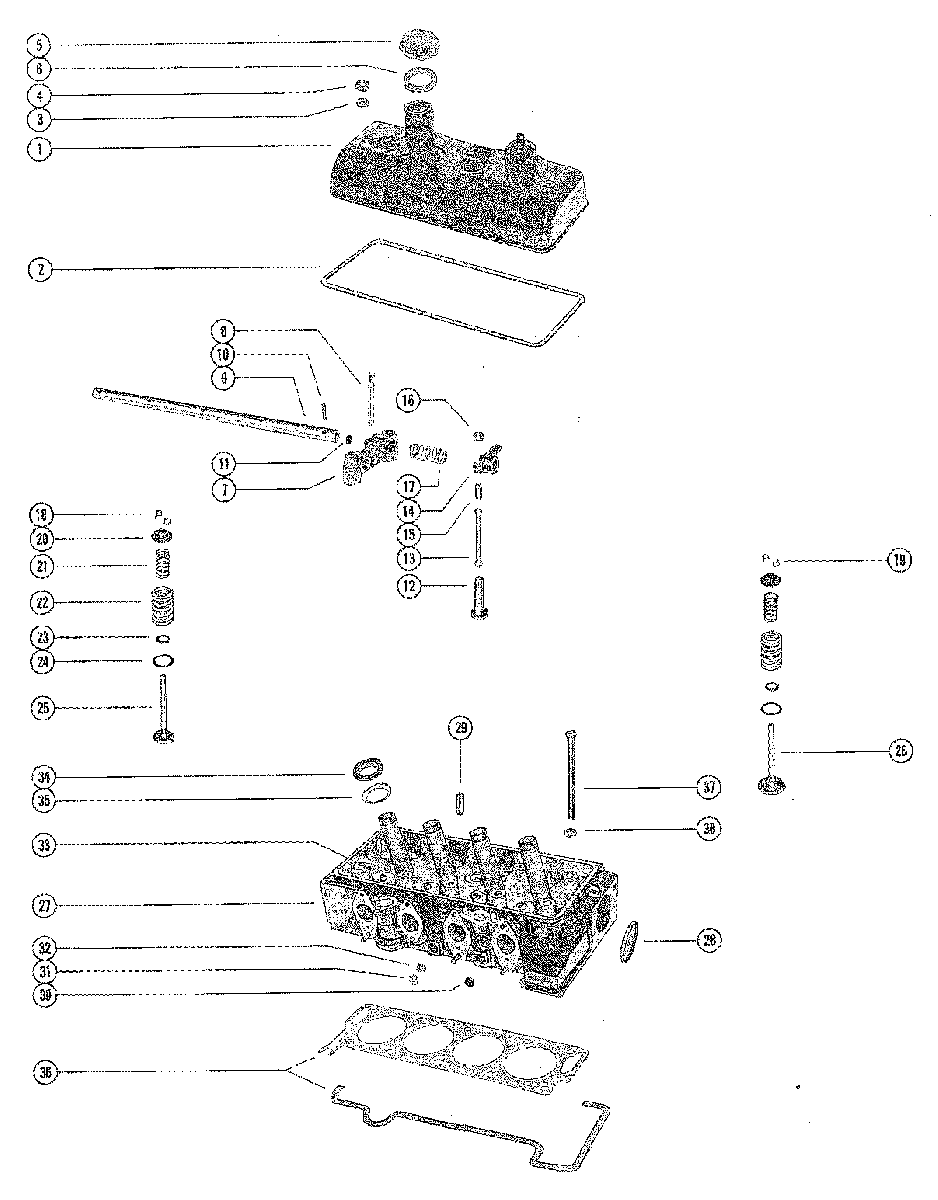

TOP COVER, ROCKER SHAFT AND CYLINDER HEAD для Mercruiser - 90 (Sterndrive) 1970-1972 2898020 THRU 3225967
-
№АртикулНазвание
-
158526 COVER, TOPCOVER, TOP
-
227-58527 GASKET, TOP COVERGASKET, TOP COVER
-
312-58537 WASHER, TOP COVER FASTENING NUTWASHER, TOP COVER FASTENING NUT
-
411-58536 NUT, TOP COVER FASTENINGNUT, TOP COVER FASTENING
-
546556 CAP, OIL FILLERCAP, OIL FILLER
-
627-58535 GASKET, OIL FILLER CAPGASKET, OIL FILLER CAP
-
758543 SUPPORT, ROCKER SHAFT (INTERMEDAIATE)SUPPORT, ROCKER SHAFT (INTERMEDAIATE)
-
758545 SUPPORT, ROCKER SHAFT (FRONT, CENTER AND REAR)SUPPORT, ROCKER SHAFT (FRONT, CENTER AND REAR)
-
816-58555 STUD, MOUNTING - TOP COVERSTUD, MOUNTING - TOP COVER
-
958556 SHAFT, ROCKERSHAFT, ROCKER
-
1017-58544 PIN, ROCKER SHAFT TO SUPPORTPIN, ROCKER SHAFT TO SUPPORT
-
1119-46577 WELCH PLUG, ROCKER SHAFTWELCH PLUG, ROCKER SHAFT
-
1246593 LIFTER, PUSH ROD (12MM)LIFTER, PUSH ROD (12MM)
-
1246594 LIFTER, PUSH ROD (12.2MM)LIFTER, PUSH ROD (12.2MM)
-
1358552 ROD, PUSH - EXHAUSTROD, PUSH - EXHAUST
-
1358551 ROD, PUSH - INLETROD, PUSH - INLET
-
1458576 ARM, ROCKER - INLETARM, ROCKER - INLET
-
1458558 ARM, ROCKER - EXHAUSTARM, ROCKER - EXHAUST
-
1546593 SCREW, ADJUSTING - PUSH RODSCREW, ADJUSTING - PUSH ROD
-
1611-46585 NUT, LOCK - PUSH ROD ADJUSTING SCREWNUT, LOCK - PUSH ROD ADJUSTING SCREW
-
1724-58557 SPRING, ROCKER SHAFTSPRING, ROCKER SHAFT
-
1828-46580 KEY, EXHAUST VALVE (DOUBLE GROOVE)KEY, EXHAUST VALVE (DOUBLE GROOVE)
-
1928-46579 KEY, INLET VALVE (SINGLE GROOVE)KEY, INLET VALVE (SINGLE GROOVE)
-
2058546 CAP, VALVE SPRING (UPPER)CAP, VALVE SPRING (UPPER)
-
2124-58547 SPRING, VALVE (INNER)SPRING, VALVE (INNER)
-
2224-58548 SPRING, VALVE (OUTER)SPRING, VALVE (OUTER)
-
2312-58549 WASHER, VALVE SPRING (LOWER - SMALL)WASHER, VALVE SPRING (LOWER - SMALL)
-
2412-58550 WASHER, VALVE SPRING (LOWER - LARGE)WASHER, VALVE SPRING (LOWER - LARGE)
-
2558559 VALVE, EXHAUST (SMALL HEAD)VALVE, EXHAUST (SMALL HEAD)
-
2658553 VALVE, INLET (LARGE HEAD)VALVE, INLET (LARGE HEAD)
-
27940-4351 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
2819-46563 PLUG EXPANSION - CYLINDER HEADPLUG EXPANSION - CYLINDER HEAD
-
2946561 VALVE GUIDE (13.10MM)VALVE GUIDE (13.10MM)
-
2946560 VALVE GUIDE (13.25MM)VALVE GUIDE (13.25MM)
-
3019-58532 PLUG, EXPANSION - CYLINDER HEADPLUG, EXPANSION - CYLINDER HEAD
-
3019-58540 PLUG, EXPANSION - CYLINDER HEADPLUG, EXPANSION - CYLINDER HEAD
-
3122-58533 ,PLUG, CYLINDER HEAD,PLUG, CYLINDER HEAD
Производитель Mercury-Mercruiser -
3227-58534 GASKET, CYLINDER HEAD PLUGGASKET, CYLINDER HEAD PLUG
-
3323-58530 BUSHING, OIL PORTBUSHING, OIL PORT
-
3458528 SEAL, SPARK PLUG TUBE TO COVERSEAL, SPARK PLUG TUBE TO COVER
-
3558529 RETAINER, SPARK PLUG TUBE SEALRETAINER, SPARK PLUG TUBE SEAL
-
3627-60848A1 GASKET KIT, CYLINDER HEADGASKET KIT, CYLINDER HEAD
-
3710-58539 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (195MM)BOLT, CYLINDER HEAD TO CYLINDER BLOCK (195MM)
-
3710-58538 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (215MM)BOLT, CYLINDER HEAD TO CYLINDER BLOCK (215MM)
-
3812-58541 WASHER, CYLINDER HEAD BOLTWASHER, CYLINDER HEAD BOLT
