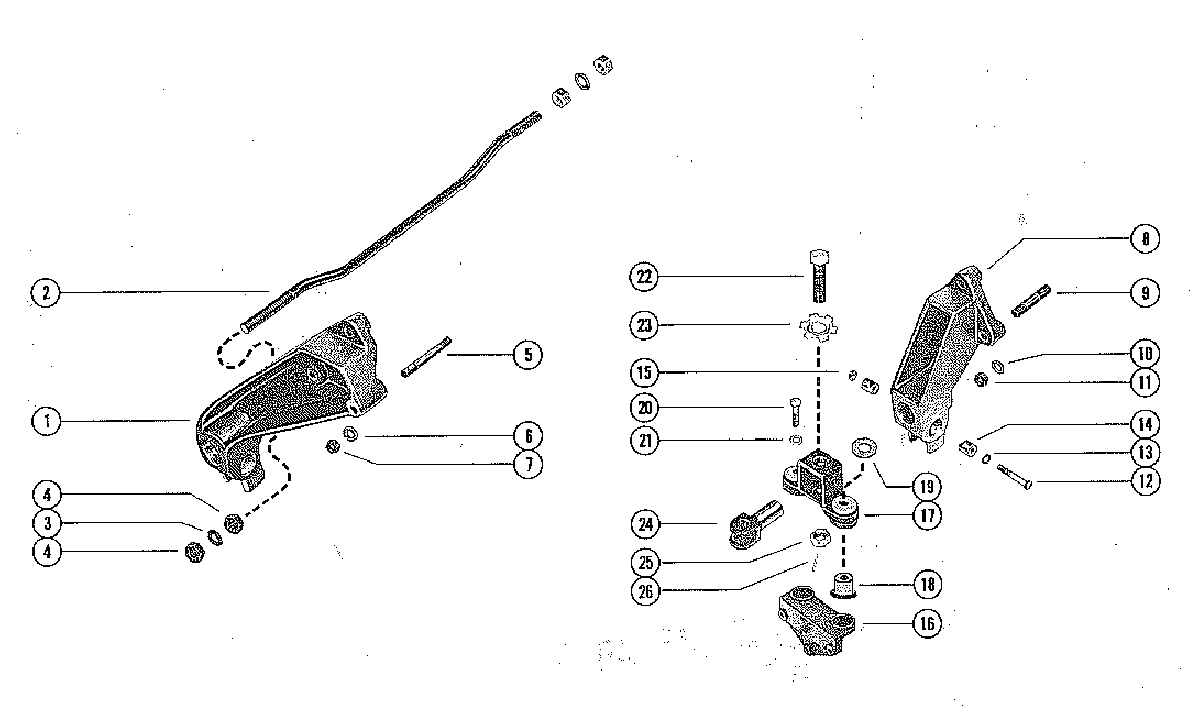

ENGINE MOUNTING для Mercruiser - 200 GM 292 I/L6 1969 2453769 THRU 2712072
-
№АртикулНазвание
-
152134 BRACKET, MOUNTING (FRONT-PORT SIDE)BRACKET, MOUNTING (FRONT-PORT SIDE)
-
252811 TIE BAR, FRONT MOUNT CONNECTINGTIE BAR, FRONT MOUNT CONNECTING
-
313-31848 LOCKWASHER, TIE BARLOCKWASHER, TIE BAR
-
411-52829 NUT, TIE BAR FASTENINGNUT, TIE BAR FASTENING
-
516-52605 STUD, MOUNTING BRACKET TO CYLINDER BLOCK (2")STUD, MOUNTING BRACKET TO CYLINDER BLOCK (2")
-
516-52606 STUD, MOUNTING BRACKET TO CYLINDER BLOCK (2 3/4")STUD, MOUNTING BRACKET TO CYLINDER BLOCK (2 3/4")
-
613-35048 LOCKWASHER, MOUINTING BRACKET STUDLOCKWASHER, MOUINTING BRACKET STUD
-
711-49838 NUT, MOUNTING BRACKET STUDNUT, MOUNTING BRACKET STUD
-
852078 BRACKET, MOUNTING (FRONT-STARBOARD SIDE)BRACKET, MOUNTING (FRONT-STARBOARD SIDE)
-
916-52605 STUD, MOUNTING BRACKET TO CYLINDER BLOCK (2")STUD, MOUNTING BRACKET TO CYLINDER BLOCK (2")
-
1013-35048 LOCKWASHER, MOUNTING BRACKET STUDLOCKWASHER, MOUNTING BRACKET STUD
-
1111-49838 NUT, MOUNTING BRACKET STUDNUT, MOUNTING BRACKET STUD
-
1210-47654 SCREW, CLAMP-ADJUSTING TRUNNION (2 3/4")SCREW, CLAMP-ADJUSTING TRUNNION (2 3/4")
-
1313-32993 LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREWLOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
-
1454-47528 CLAMP, ADJUSTING TRUNNION SCREWCLAMP, ADJUSTING TRUNNION SCREW
-
1511-82670814 NUT, CLAMP ADJUSTING TRUNNION SCREWNUT, CLAMP ADJUSTING TRUNNION SCREW
-
1647986 BRACKET, MOUNTING-ENGINEBRACKET, MOUNTING-ENGINE
-
1752139A4 BRACKET ASSEMBLY, MOUNTING
SERIAL 00000000-02494935BRACKET ASSEMBLY, MOUNTING
SERIAL 00000000-02494935 -
1752139A4 BRACKET ASSEMBLY, MOUNTING
SERIAL 24994936-09999999BRACKET ASSEMBLY, MOUNTING
SERIAL 24994936-09999999 -
1847656 MOUNT, MOUNTING BRACKET
SERIAL 00000000-02494935MOUNT, MOUNTING BRACKET
SERIAL 00000000-02494935 -
1852753 MOUNT, MOUNTING BRACKET
SERIAL 24994936-09999999MOUNT, MOUNTING BRACKET
SERIAL 24994936-09999999 -
1912-48611 WASHER, MOUNTING BACKETWASHER, MOUNTING BACKET
-
2010-48254 SCREW, MOUNITNG BRACKET ATTACHING (2 1/8")SCREW, MOUNITNG BRACKET ATTACHING (2 1/8")
-
2113-31848 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
2210-52156 SCREW ADJUSTING TRUNNION (4 1/2")SCREW ADJUSTING TRUNNION (4 1/2")
-
2314-48467 TAB WASHER, ADJUSTER TRUNNION SCREWTAB WASHER, ADJUSTER TRUNNION SCREW
-
2447518 TRUNNION, ADJUSTING-MOUNTING BRACKETTRUNNION, ADJUSTING-MOUNTING BRACKET
-
2511-47525 NUT, JAM- ADJUSTING TRUNNION SCREWNUT, JAM- ADJUSTING TRUNNION SCREW
-
2617-22116 PIN, ROLL-JAM NUTPIN, ROLL-JAM NUT
