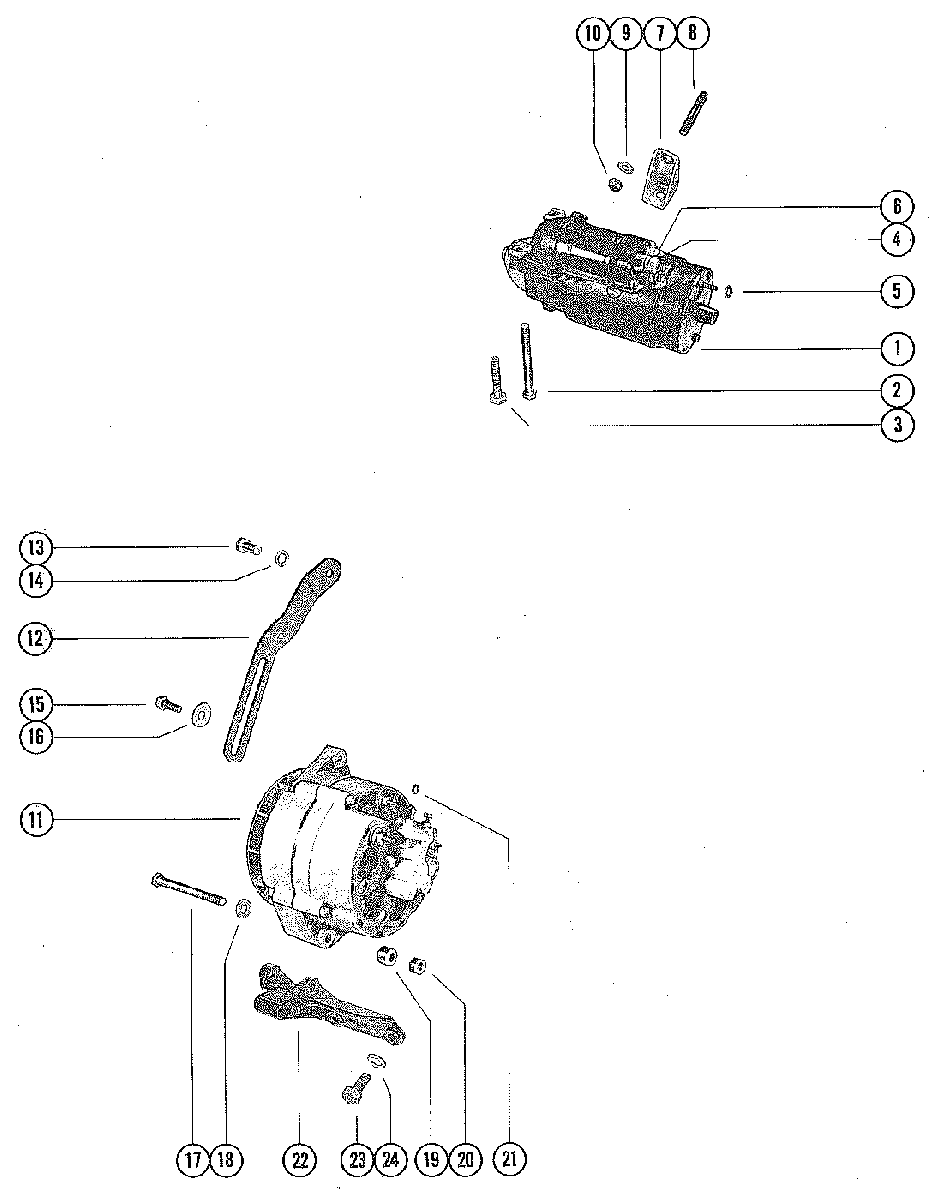

STARTER MOTOR AND ALTERNATOR для Mercruiser - 200 GM 292 I/L6 1969 2453769 THRU 2712072
-
№АртикулНазвание
-
150-8M0090697 STARTER MOTOR
SEE NOTESTARTER MOTOR
SEE NOTE -
210-94435001 BOLT, STARTER MOTOR MOUNTING (4 21/32")BOLT, STARTER MOTOR MOUNTING (4 21/32")
-
310-8053433 BOLT, STARTER MOTOR MOUNTING 91 27/32")BOLT, STARTER MOTOR MOUNTING 91 27/32")
-
411-26419 NUT, SOLENOID SWITCH TERMINAL (8-32)NUT, SOLENOID SWITCH TERMINAL (8-32)
-
513-26995 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
611-32219 NUT, SOLENOID SWITCH TERMINAL (3/8-16)NUT, SOLENOID SWITCH TERMINAL (3/8-16)
-
754671T BRACE, STARTER MOTORBRACE, STARTER MOTOR
-
816-52387 STUD, STARTER MOTOR BRACE MOUNTINGSTUD, STARTER MOTOR BRACE MOUNTING
-
912-26168 WASHER, STARTER MOTOR BRACE STUDWASHER, STARTER MOTOR BRACE STUD
-
1011-82670911 NUT, STARTER MOTOR BRACE STUDNUT, STARTER MOTOR BRACE STUD
-
1147456A1 ALTERNATOR ASSEMBLY
SEE NOTEALTERNATOR ASSEMBLY
SEE NOTE -
1239995 BRACE, ALTERNATOR TO CYLINDER BLOCKBRACE, ALTERNATOR TO CYLINDER BLOCK
-
1310-38837 SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (1 1/8")SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (1 1/8")
-
1413-26993 LOCKWASHER, ALTERNATOR BRACE SCREWLOCKWASHER, ALTERNATOR BRACE SCREW
-
1510-29198 SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
-
1612-26168 WASHER, ALTERNATOR BRACE SCREWWASHER, ALTERNATOR BRACE SCREW
-
1710-32775 SCREW, ALTERNATOR TO BRACKET (3 1/2")SCREW, ALTERNATOR TO BRACKET (3 1/2")
-
1812-20553 WASHER, ALTERNATOR SCREWWASHER, ALTERNATOR SCREW
-
1923-33186 SPACER, ALTERNATOR SCREWSPACER, ALTERNATOR SCREW
-
2011-23161 NUT, ALTERNATOR SCREWNUT, ALTERNATOR SCREW
-
2112-20192 WASHER, ALTERNATOR GROUND TERMINALWASHER, ALTERNATOR GROUND TERMINAL
-
2239998 BRACKET, ALTERNATOR MOUNTINGBRACKET, ALTERNATOR MOUNTING
-
2310-37612 SCREW, ALTERNATOR BRACKET TO CYLINDER BLOCK (1 1/4")SCREW, ALTERNATOR BRACKET TO CYLINDER BLOCK (1 1/4")
-
2413-35048 LOCKWASHER, ALTERNATOR MOUNTING BRACKET SCREWLOCKWASHER, ALTERNATOR MOUNTING BRACKET SCREW
Все узлы модели:
- CARBURETOR ASSEMBLY, COMPLETE
- CYLINDER BLOCK, PISTON AND CRANKSHAFT
- CYLINDER HEAD AND OIL PAN
- DISTRIBUTOR ASSEMBLY AND COIL
- ENGINE MOUNTING
- EXHAUST KIT
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- FLYWHEEL HOUSING
- FUEL PUMP, CARBURETOR AND THROTTLE LINKAGE
- • STARTER MOTOR AND ALTERNATOR
- WATER PUMP ASSEMBLY, COMPLETE
- WIRING HARNESS, VOLTAGE REGULATOR AND STARTER SOLENOID
