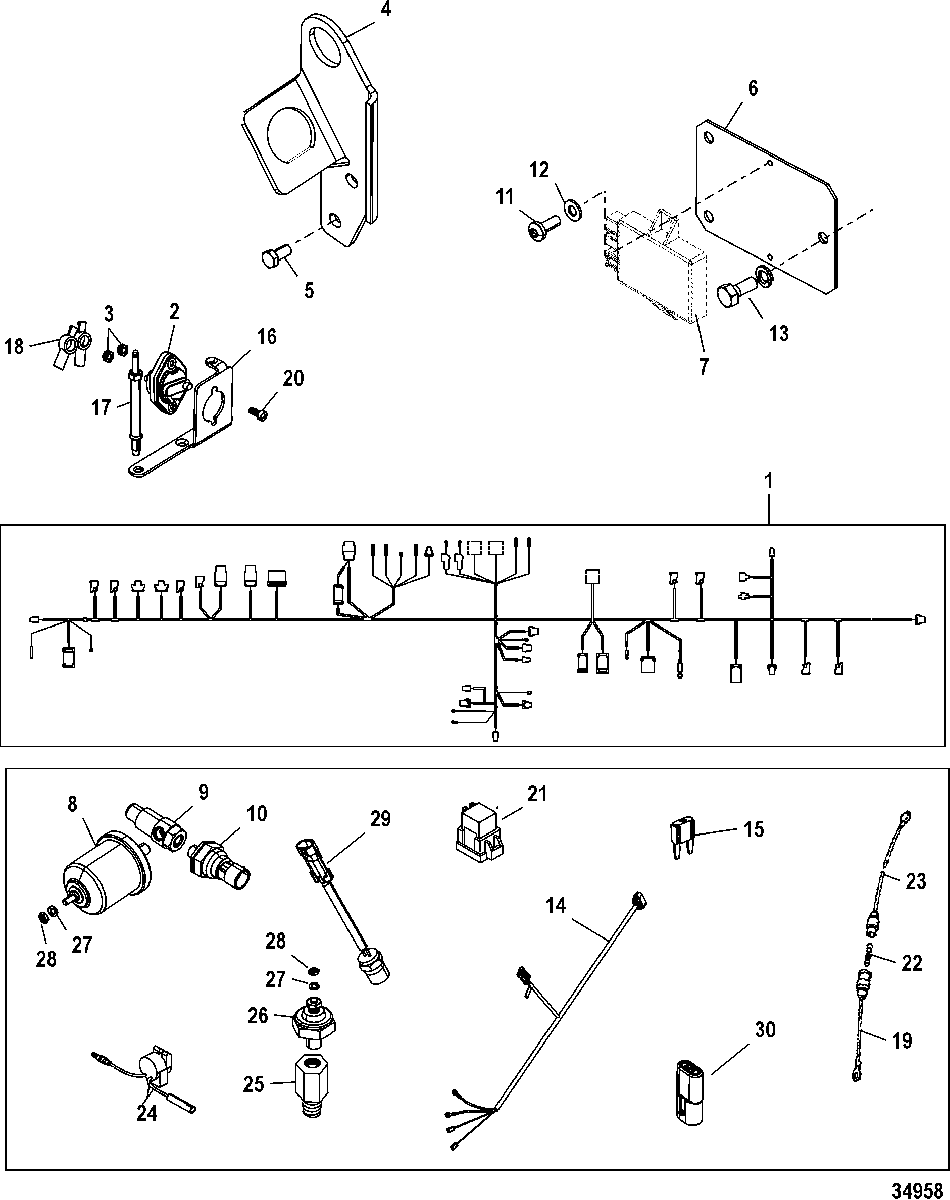

Electrical Components для Mercruiser - 4.3L CARB ALPHA/BRAVO 0W650000 THRU 1A063239
-
№АртикулНазвание
-
184-862163T05 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
288-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
311-826709106 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
4899719T02 BRACKET, Harness Mounting, Lifting EyeBRACKET, Harness Mounting, Lifting Eye
-
510-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
6861516 BRACKETBRACKET
-
7861251T1 ICM MODULE, Ignition Control Module
(Alpha)ICM MODULE, Ignition Control Module
(Alpha) -
7861252T1 ICM MODULE, Ignition Control Module
(Bravo)ICM MODULE, Ignition Control Module
(Bravo) -
88M0068784 SENDER ASSEMBLY, OilSENDER ASSEMBLY, Oil
-
837293T SENDER ASSEMBLY, Oil
(Dual Station)SENDER ASSEMBLY, Oil
(Dual Station) -
922-864669 FITTINGFITTING
-
1087-8M0070108 SWITCHSWITCH
-
1110-861520 SCREW, (#10-32 x .500)SCREW, (#10-32 x .500)
-
1212-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1310-657461 SCREW AND LOCKWASHER, (.250-20 x .625)SCREW AND LOCKWASHER, (.250-20 x .625)
-
1484-866727T01 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1588-832969T15 FUSE, Mini - Blue - 15 AmpereFUSE, Mini - Blue - 15 Ampere
-
1588-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
16899719T01 BRACKETBRACKET
-
1716-805459 STUD, Mercathode MountingSTUD, Mercathode Mounting
-
1885-89919 BOOT, Insulator - BlackBOOT, Insulator - Black
-
1984-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
(Bravo)CABLE ASSEMBLY, (5.00 Inches) Red
(Bravo) -
2010-830861 SCREW, (#8-32 x .625)SCREW, (#8-32 x .625)
-
21882751 RELAYRELAY
-
2288-79091 FUSE, 20 Ampere
(Bravo)FUSE, 20 Ampere
(Bravo) -
2384-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
(Bravo)CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
(Bravo) -
24816492A6 ALARM KITALARM KIT
-
2522-32974 FITTING, (.125-27) AdaptorFITTING, (.125-27) Adaptor
-
2687-805605A1 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
2713-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2811-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2987-866089 THERMAL SWITCH, (Normally Open 130-110 degrees), Turn Key StartTHERMAL SWITCH, (Normally Open 130-110 degrees), Turn Key Start
-
3083-865913A01 DIODE ASSEMBLYDIODE ASSEMBLY
