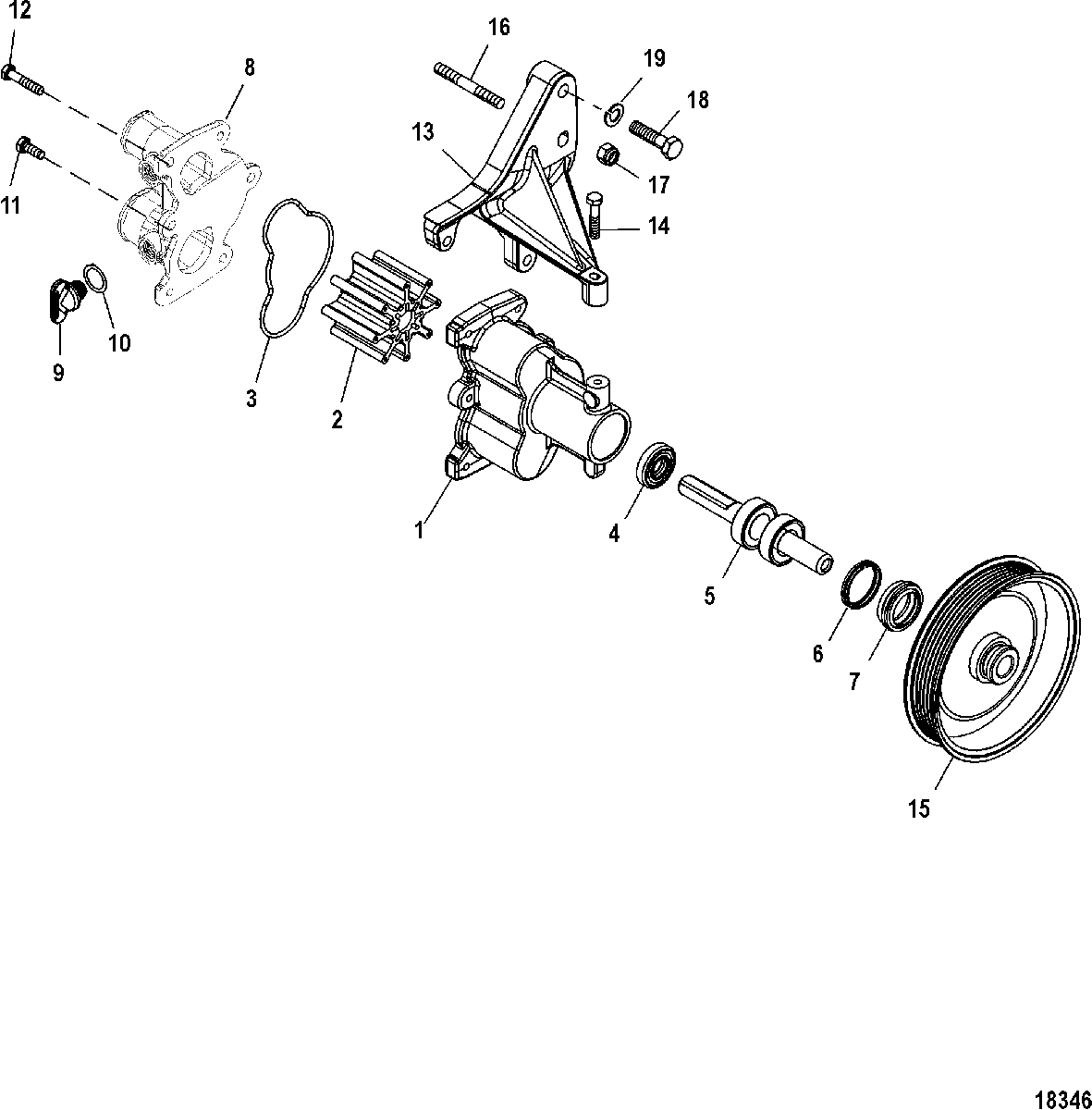

Sea Water Pump Assembly, Alpha/Bravo Closed Cooling для Mercruiser - 4.3L CARB ALPHA/BRAVO 0W650000 THRU 1A063239
-
№АртикулНазвание
-
-46-8M0137216 PUMP KIT, Sea WaterPUMP KIT, Sea Water
-
18M0118062 HOUSING ASSEMBLY, ImpellerHOUSING ASSEMBLY, Impeller
-
247-8M0104229 IMPELLERIMPELLER
-
325-841807 O-RING, (3.500 x .103) (Also included with Reference 8)O-RING, (3.500 x .103) (Also included with Reference 8)
-
426-8M2001645 SEAL, OilSEAL, Oil
-
58M0050018 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
6862039 TOLERANCE RINGTOLERANCE RING
-
726-862040 SEAL, LipSEAL, Lip
-
8862776A01 COVER KIT, Impeller HousingCOVER KIT, Impeller Housing
-
922-8M0119211 PLUG KIT, (.500-13) Royal BluePLUG KIT, (.500-13) Royal Blue
-
1025-32509 O-RING, (.489 x .070)O-RING, (.489 x .070)
-
1110-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1210-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
13865143T01 BRACKET, Sea Water PumpBRACKET, Sea Water Pump
-
1410-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
15862351T PULLEYPULLEY
-
1616-863853 STUDSTUD
-
1711-82671112 NUT, (.375-16)NUT, (.375-16)
-
1810-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
1913-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
