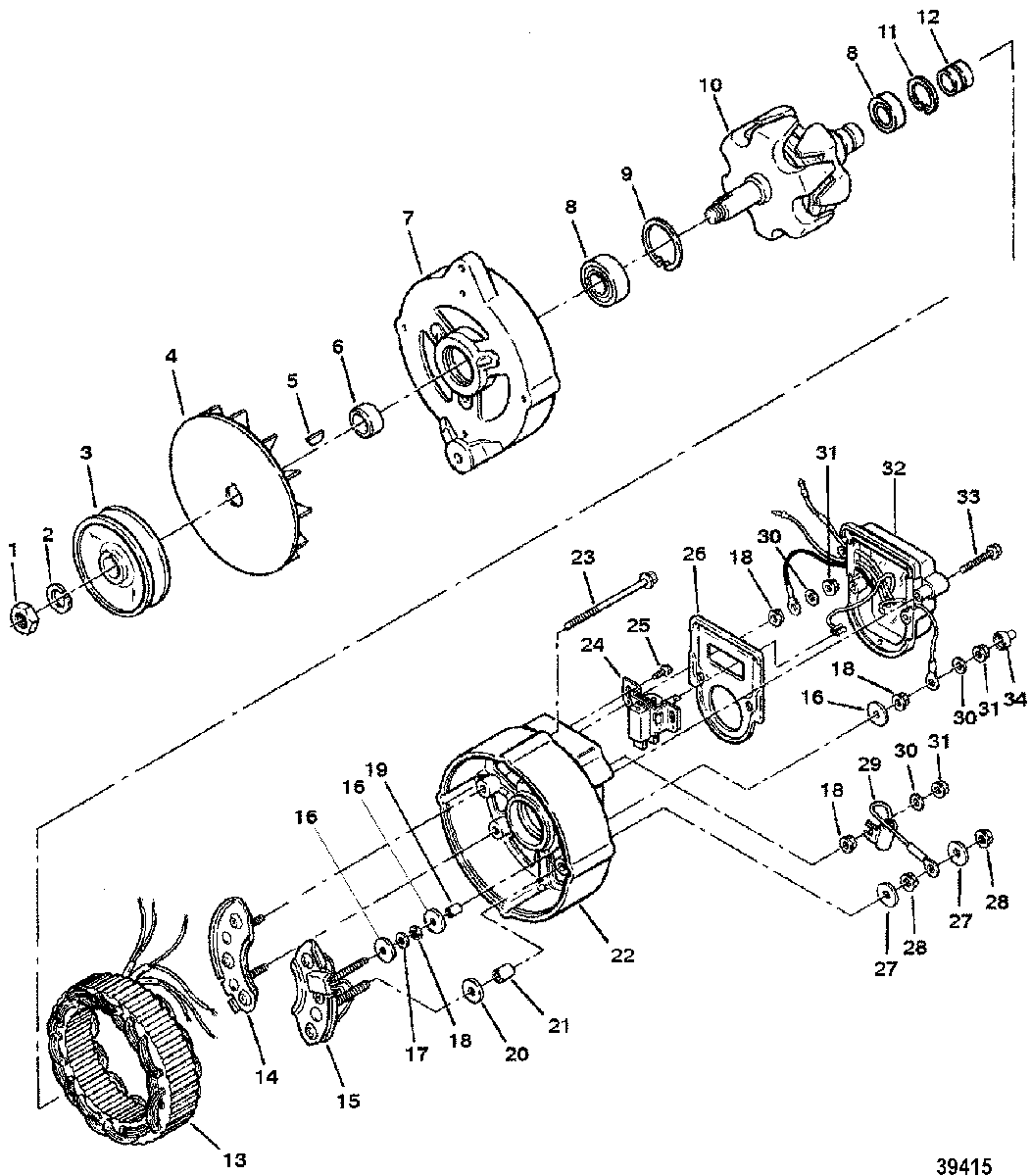

ALTERNATOR(PRESTOLITE) для Mercruiser - 454 EFI (GEN. V) GM 454 V-8 1994-1996 0F115700 THRU 0F802349
-
№АртикулНазвание
-
-805884T ALTERNATORALTERNATOR
-
1390-7027 NUTNUT
-
213-808542 LOCKWASHERLOCKWASHER
-
3808530 PULLEYPULLEY
-
4390-7004 FANFAN
-
5390-7034 KEYKEY
-
6813969 SPACERSPACER
-
7808527 HOUSINGHOUSING
-
8390-7005 BEARING, BallBEARING, Ball
-
9390-7006 RING
(FRONT)RING
(FRONT) -
10808528 ROTORROTOR
-
11390-7007 RETAINER
(REAR)RETAINER
(REAR) -
12390-7014 SLIP RINGSLIP RING
-
13808529 STATORSTATOR
-
14390-7009 DIODE
(NEGATIVE)DIODE
(NEGATIVE) -
15808531 DIODE
(POSITIVE)DIODE
(POSITIVE) -
16390-7024 WASHERWASHER
-
1712-813984 WASHERWASHER
-
1811-808544 NUTNUT
-
19390-7020 SLEEVESLEEVE
-
20390-7023 INSULATORINSULATOR
-
21808536 SLEEVESLEEVE
-
22390-7003 HOUSINGHOUSING
-
2310-808535 BOLTBOLT
-
24808532 BRUSH ASSEMBLYBRUSH ASSEMBLY
-
2510-808540 SCREW, (#8-32 x .500)SCREW, (#8-32 x .500)
-
26390-7013 GASKETGASKET
-
2712-808537 WASHERWASHER
-
2811-808539 NUT, (.250-20)NUT, (.250-20)
-
29813972 CAPACITORCAPACITOR
-
3013-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
3111-808538 NUTNUT
-
32808534T REGULATOR, VoltageREGULATOR, Voltage
-
3310-808541 SCREW, (#8-32 x 1.250)SCREW, (#8-32 x 1.250)
-
34808543 CAPCAP
-
-808533T DIODE FIELDDIODE FIELD
