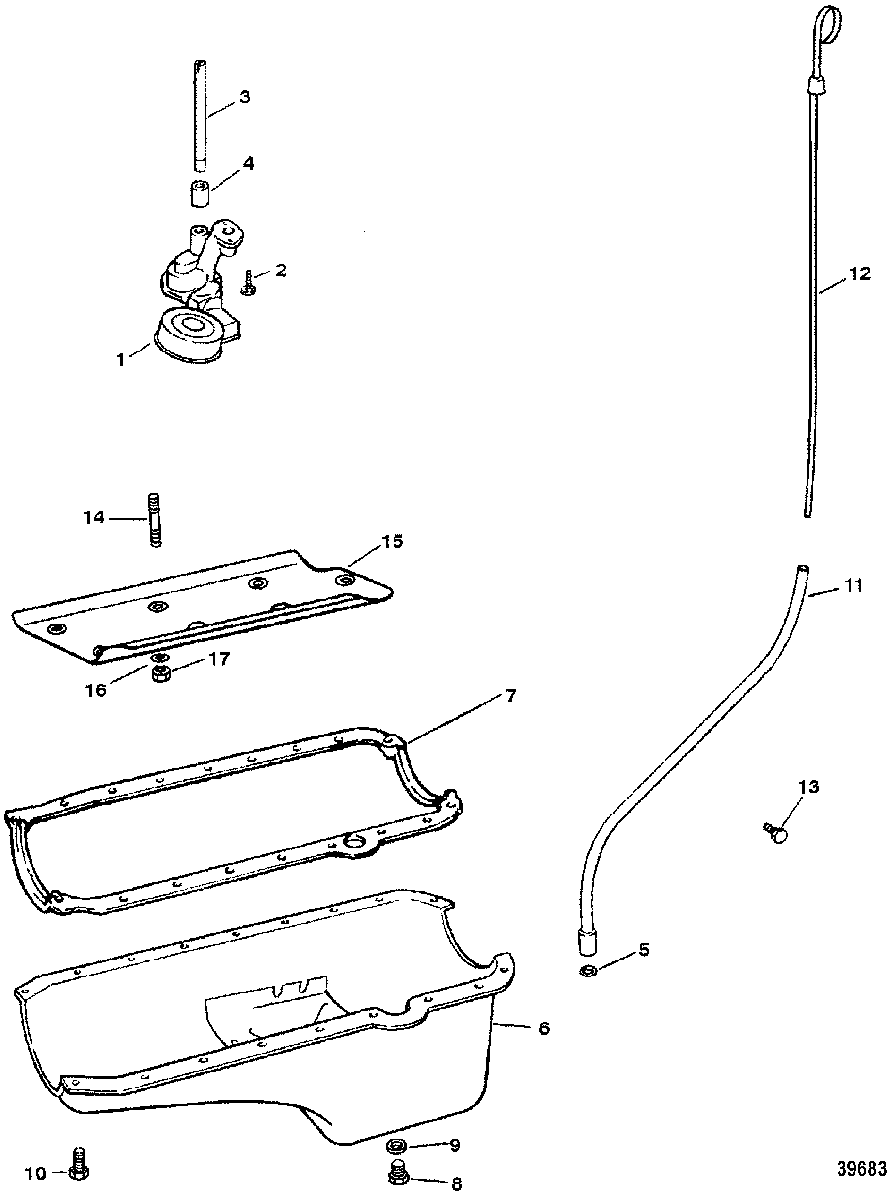

OIL PAN AND OIL PUMP для Mercruiser - 454 EFI (GEN. V) GM 454 V-8 1994-1996 0F115700 THRU 0F802349
-
№АртикулНазвание
-
1827643 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
210-813071 SCREWSCREW
-
38M0046892 SHAFT AND RETAINERSHAFT AND RETAINER
-
423-36183 RETAINERRETAINER
-
525-62704 O-RING, (.362 x .103)O-RING, (.362 x .103)
-
6845668T PAN ASSEMBLYPAN ASSEMBLY
-
727-845628 GASKETGASKET
-
810-49956 SCREW, DrainSCREW, Drain
-
927-8M0077608 GASKET, DrainGASKET, Drain
-
1010-34500 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
11818631A6 TUBETUBE
-
12861942T9 DIPSTICKDIPSTICK
-
1310-8M0040582 SCREWSCREW
-
1416-843375 STUD, (.375-16/.500-12 x 5.500)STUD, (.375-16/.500-12 x 5.500)
-
15843945T BAFFLEBAFFLE
-
1612-49112 WASHERWASHER
-
1711-37500 NUT, (3/8-16)NUT, (3/8-16)
-
-27-811572A94 GASKET SET, Overhaul
(454 MAGNUM)GASKET SET, Overhaul
(454 MAGNUM) -
-27-805396A92 GASKET SET, Overhaul
(502 MAGNUM)GASKET SET, Overhaul
(502 MAGNUM)
