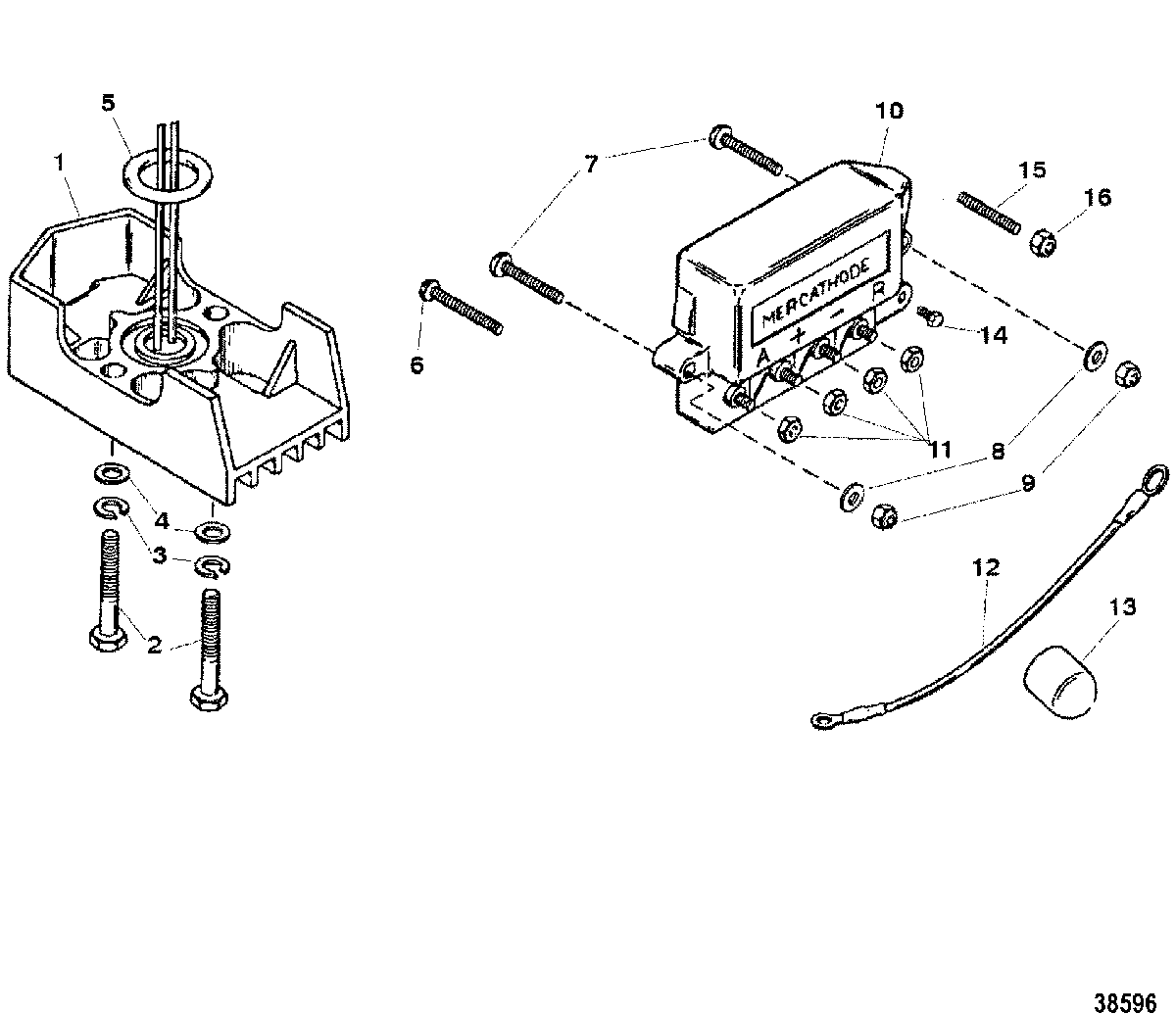

MERCATHODE COMPONENTS для Mercruiser - 454 MAG. BRAVO (GEN. V) GM 454 V-8 1992-1994 0D805069 THRU 0F304999
-
№АртикулНазвание
-
18M0085692 ELECTRODE ASSEMBLYELECTRODE ASSEMBLY
-
210-69067 SCREW, (.250-20 x 1.375)SCREW, (.250-20 x 1.375)
-
313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
525-88388 O-RINGO-RING
-
610-72202 SCREW, (#10-32 x 1.25)SCREW, (#10-32 x 1.25)
-
710-24637 SCREW, (#10-32 x .875)
SCREW MOUNTINGSCREW, (#10-32 x .875)
SCREW MOUNTING -
812-21273 WASHER
SCREW MOUNTINGWASHER
SCREW MOUNTING -
911-46438 NUT, (#10-32)
SCREW MOUNTINGNUT, (#10-32)
SCREW MOUNTING -
1042600A09 CONTROLLER ASSEMBLYCONTROLLER ASSEMBLY
-
1111-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1284-88543A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
1344574T CAPCAP
-
1410-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
710-805565 SCREW, (#10-32 x .750)
STUD MOUNTINGSCREW, (#10-32 x .750)
STUD MOUNTING -
1516-805459 STUD
STUD MOUNTINGSTUD
STUD MOUNTING -
1611-46438 NUT, (#10-32)
STUD MOUNTINGNUT, (#10-32)
STUD MOUNTING
