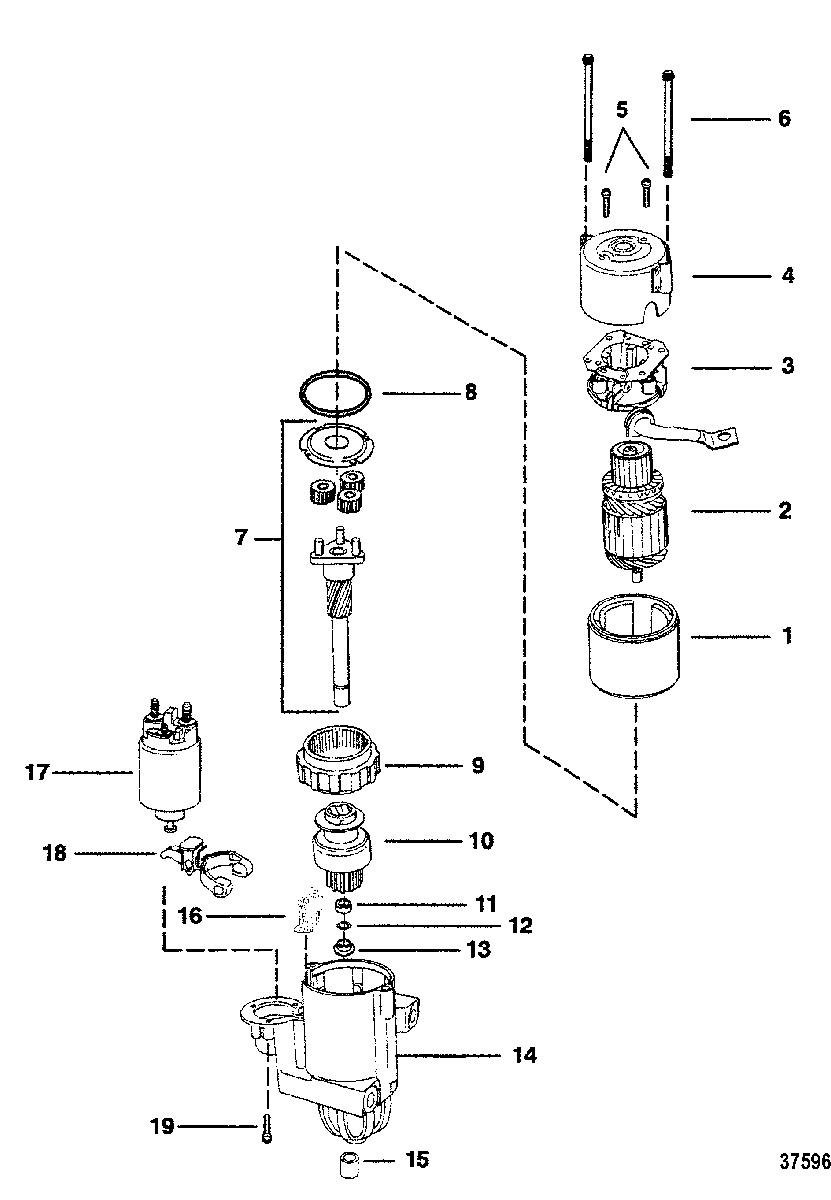

STARTER MOTOR(8 IN. (PG 260)2-7/8 IN. DIAMETER END CAP) для Mercruiser - 454 MAG. BRAVO (GEN. V) GM 454 V-8 1992-1994 0D805069 THRU 0F304999
-
№АртикулНазвание
-
150-863007A1 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2NSS NOT SOLD SEPARATE, ARMATURENOT SOLD SEPARATE, ARMATURE
-
3NSS NOT SOLD SEPARATE, BRUSH HOLDER AND SPRINGNOT SOLD SEPARATE, BRUSH HOLDER AND SPRING
-
4NSS NOT SOLD SEPARATE, FRAMENOT SOLD SEPARATE, FRAME
-
5NSS NOT SOLD SEPARATE, SCREWNOT SOLD SEPARATE, SCREW
-
6NSS NOT SOLD SEPARATE, THRU BOLTNOT SOLD SEPARATE, THRU BOLT
-
7NSS NOT SOLD SEPARATE, SHAFT AND GEARNOT SOLD SEPARATE, SHAFT AND GEAR
-
8NSS NOT SOLD SEPARATE, GASKETNOT SOLD SEPARATE, GASKET
-
9NSS NOT SOLD SEPARATE, GEARNOT SOLD SEPARATE, GEAR
-
10NSS NOT SOLD SEPARATE, DRIVENOT SOLD SEPARATE, DRIVE
-
1133291 COLLARCOLLAR
-
1253-33290 RING, RetainingRING, Retaining
-
13NSS NOT SOLD SEPARATE, THRUST COLLARNOT SOLD SEPARATE, THRUST COLLAR
-
14809459 HOUSINGHOUSING
-
1523-814476 BUSHINGBUSHING
-
16NSS NOT SOLD SEPARATE, GROMMETNOT SOLD SEPARATE, GROMMET
-
17809463A1 SOLENOID KITSOLENOID KIT
-
18NSS NOT SOLD SEPARATE, LEVERNOT SOLD SEPARATE, LEVER
-
19NSS NOT SOLD SEPARATE, SCREWNOT SOLD SEPARATE, SCREW
