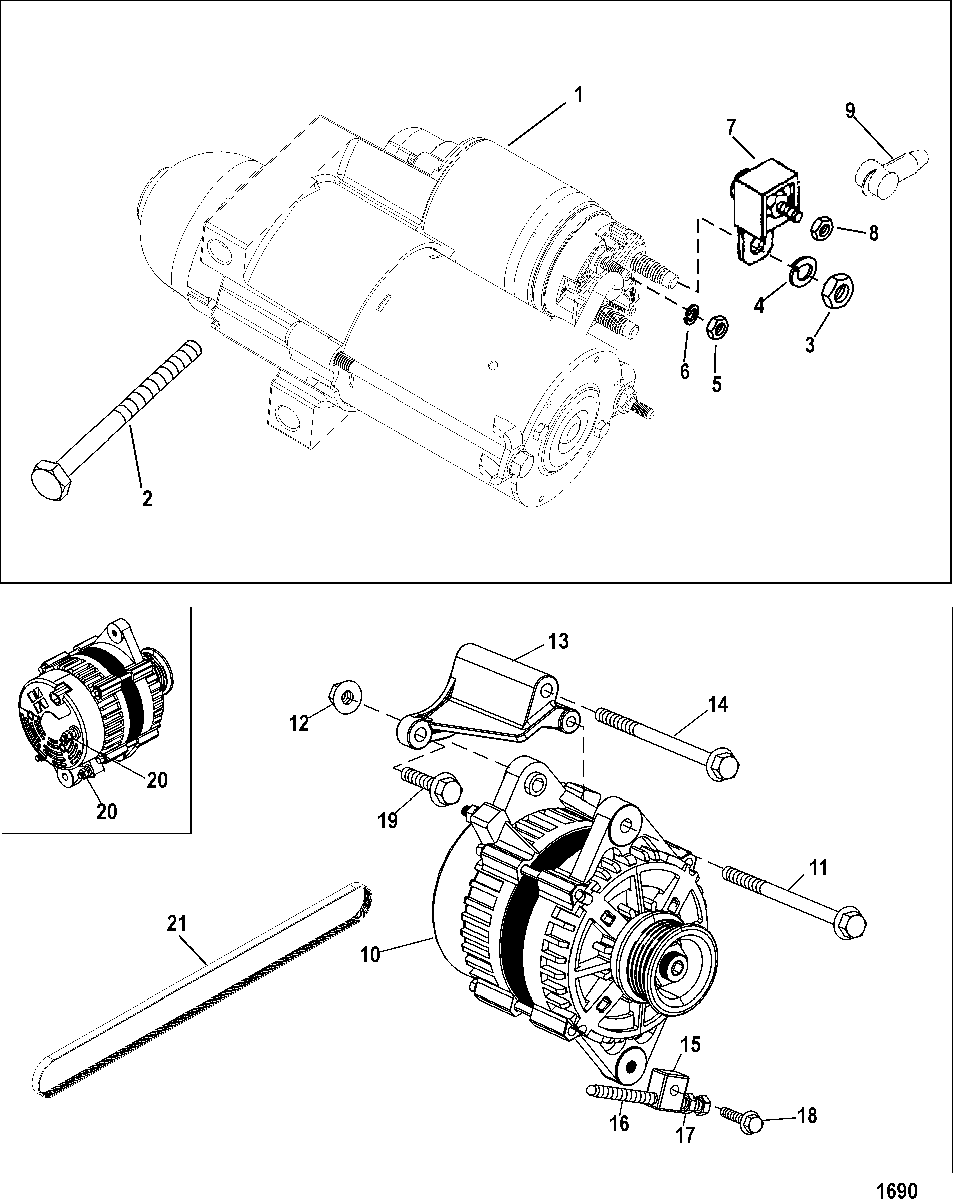

Starter and Alternator для Mercruiser - 496 MAG (Base Model) 0M687083 THRU 0W059999
-
№АртикулНазвание
-
150-863007A1 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
210-861788 SCREW, (M10 x 1.5), SpecialSCREW, (M10 x 1.5), Special
-
311-806949 NUT, (M8-1.5)NUT, (M8-1.5)
-
413-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
511-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
788-79023A91 FUSE ASSEMBLY, 90 AmpereFUSE ASSEMBLY, 90 Ampere
-
811-8267119 NUT, (.250-28)NUT, (.250-28)
-
985-79695T BOOT, Insulator - BlackBOOT, Insulator - Black
-
10863077T ALTERNATOR ASSEMBLY, BlackALTERNATOR ASSEMBLY, Black
-
1110-824459110 SCREW, (M8 x 110) Stainless SteelSCREW, (M8 x 110) Stainless Steel
-
1211-401368 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
13863855T BRACKET, AlternatorBRACKET, Alternator
-
1410-40108120 SCREW, (M10 x 120) Hex Flange - Stainless SteelSCREW, (M10 x 120) Hex Flange - Stainless Steel
-
15862353A1 ADJUSTMENT ASSEMBLY, BeltADJUSTMENT ASSEMBLY, Belt
-
16NSS NOT SOLD SEPARATE, SCREW-Belt AdjustmentNOT SOLD SEPARATE, SCREW-Belt Adjustment
-
1711-863409 NUT, (M10), JamNUT, (M10), Jam
-
1810-40011151 SCREW, (M8 x 35) Stainless Steel, FlangeSCREW, (M8 x 35) Stainless Steel, Flange
-
1910-4010835 SCREW, (M10 x 35) Hex Flange - Stainless SteelSCREW, (M10 x 35) Hex Flange - Stainless Steel
-
2011-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2157-865615Q01 BELT, SerpentineBELT, Serpentine
