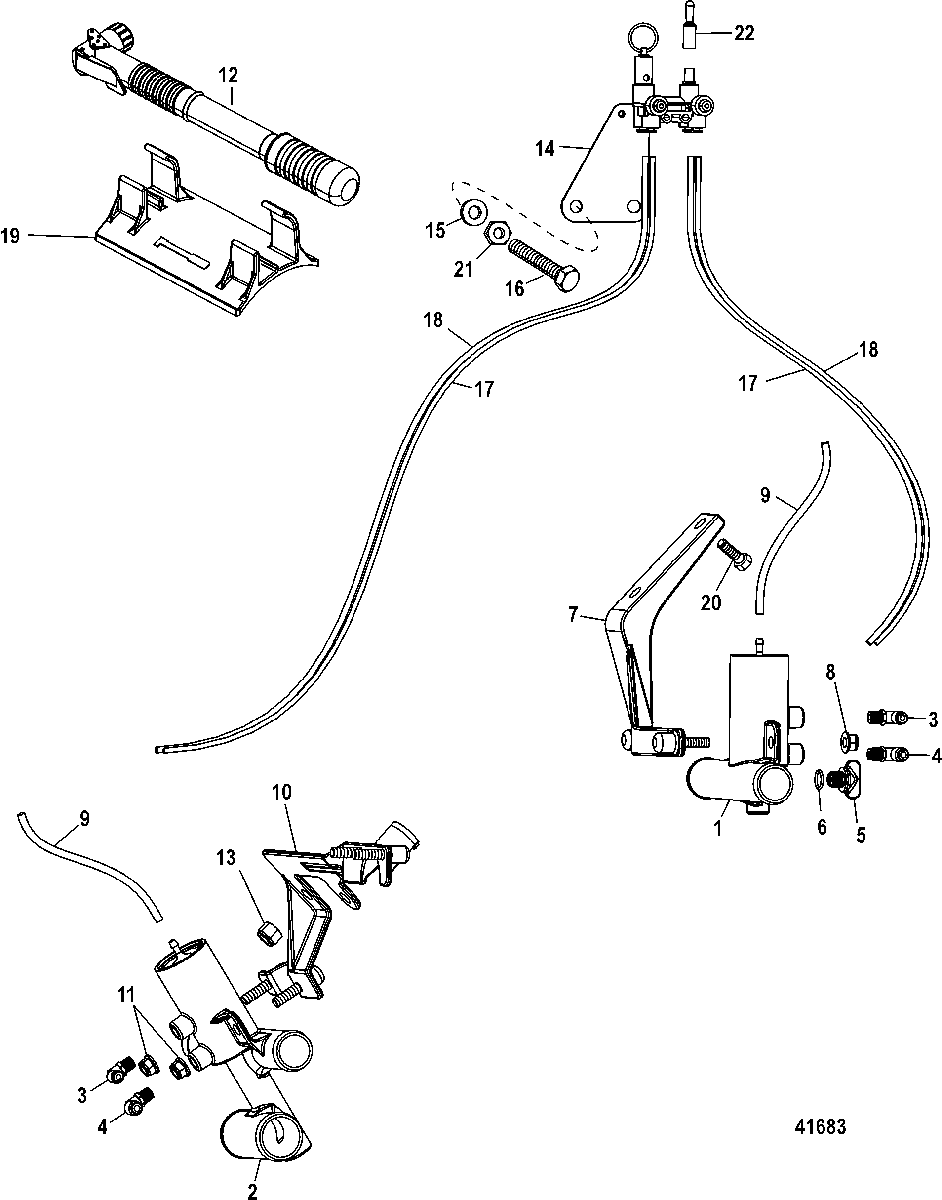

Water Drain System для Mercruiser - 496 MAG (Base Model) 0M687083 THRU 0W059999
-
№АртикулНазвание
-
1863717A2 ACTUATOR ASSEMBLY, Water Drain
(Port)ACTUATOR ASSEMBLY, Water Drain
(Port) -
2863716A2 ACTUATOR ASSEMBLY, Water Drain
(Starboard)ACTUATOR ASSEMBLY, Water Drain
(Starboard) -
322-8M0082320 FITTING, Orange - Straight, AirFITTING, Orange - Straight, Air
-
322-8M0082322 FITTING, Orange (90 Degree), AirFITTING, Orange (90 Degree), Air
-
422-8M0082319 FITTING, Gray - Straight, AirFITTING, Gray - Straight, Air
-
422-8M0082321 FITTING, Gray (90 Degree) , AirFITTING, Gray (90 Degree) , Air
-
522-8M0119211 PLUG KIT, (.500-13) Royal Blue, DrainPLUG KIT, (.500-13) Royal Blue, Drain
-
625-32509 O-RING, (.489 x .070)O-RING, (.489 x .070)
-
7863863T BRACKET, Actuator Mounting
(Port)BRACKET, Actuator Mounting
(Port) -
811-826365 NUT, (M8), NylockNUT, (M8), Nylock
-
932-8630561 HOSE, (42.00 Inches Bulk) Black, AirHOSE, (42.00 Inches Bulk) Black, Air
-
10863862T BRACKET, Actuator/Pump Mounting
(Starboard)BRACKET, Actuator/Pump Mounting
(Starboard) -
1111-826292 NUT, (M10) Brass/Nickel Plated, NylockNUT, (M10) Brass/Nickel Plated, Nylock
-
12863057 PUMP, AirPUMP, Air
-
1311-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
14862969A2 MANIFOLD ASSEMBLY, AirMANIFOLD ASSEMBLY, Air
-
1512-4002314 WASHERWASHER
-
1610-864887 SCREW, (M5)SCREW, (M5)
-
1732-8M0077561 HOSE, (40.00 Inches Bulk) Green
(Starboard 40 in.)(Cut Port Hose To 23 In.)HOSE, (40.00 Inches Bulk) Green
(Starboard 40 in.)(Cut Port Hose To 23 In.) -
1832-8M0062601 HOSE, (40.00 Inches Bulk) Grey
(Starboard 40 in.)(Cut Port Hose To 23 In.)HOSE, (40.00 Inches Bulk) Grey
(Starboard 40 in.)(Cut Port Hose To 23 In.) -
19863059 BRACKET, Air PumpBRACKET, Air Pump
-
2010-4000374 SCREW, (M10 x 16)SCREW, (M10 x 16)
-
2111-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
2219-883503 CAP, Service PointCAP, Service Point
