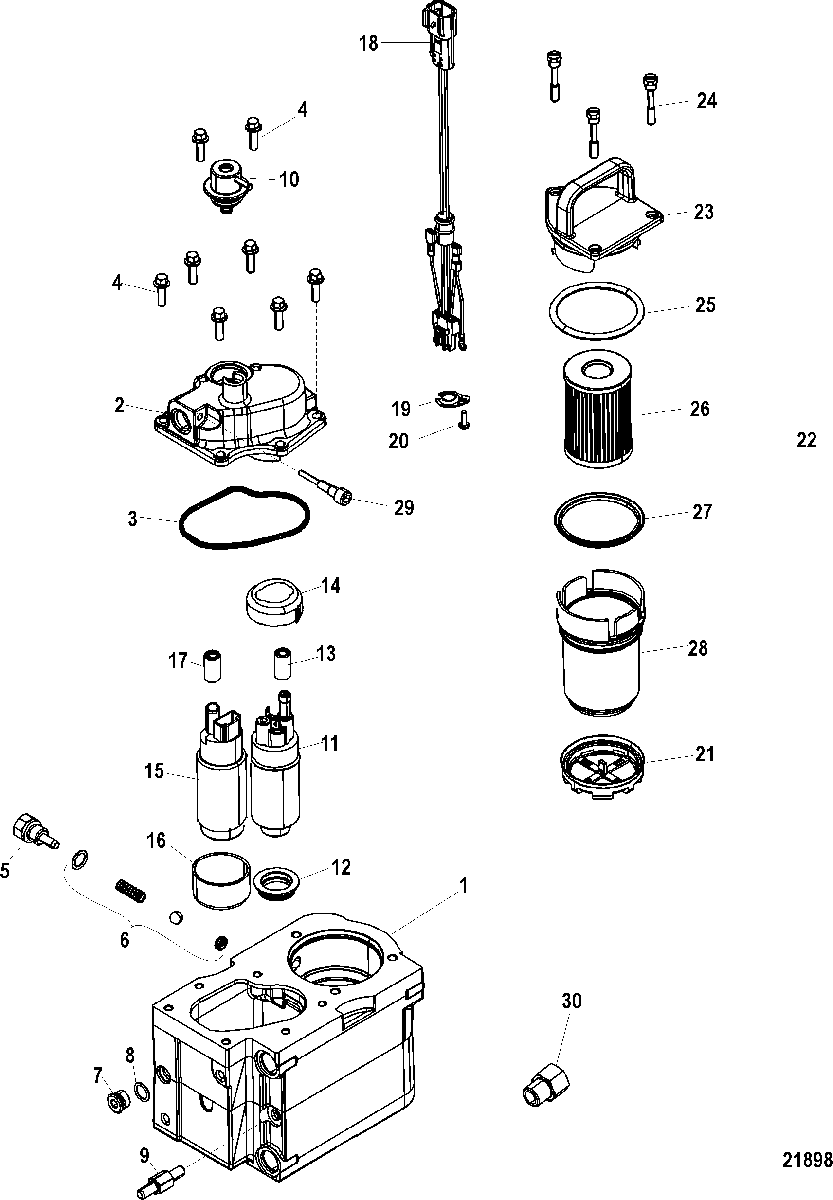

Fuel Module Components для Mercruiser - 496 MAG (Base Model) 0W310000 THRU 0W649999
-
№АртикулНазвание
-
-864650A05 MODULE KIT, Fuel Pump, CompleteMODULE KIT, Fuel Pump, Complete
-
1892664T01 HOUSING, Fuel ModuleHOUSING, Fuel Module
-
28M0130861 COVER, Fuel Module HousingCOVER, Fuel Module Housing
-
326-892683 SEALSEAL
-
410-892684 SCREWSCREW
-
5892670A01 CHECK VALVE KITCHECK VALVE KIT
-
6NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
7NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
8NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
916-865326 STUD, (M8 x 30)STUD, (M8 x 30)
-
10892681 REGULATORREGULATOR
-
11866170A01 PUMP ASSEMBLY, Fuel - Low PressurePUMP ASSEMBLY, Fuel - Low Pressure
-
12NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
13NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
14NSS NOT SOLD SEPARATE, Isolator, Lift PumpNOT SOLD SEPARATE, Isolator, Lift Pump
-
15866169T01 PUMP ASSEMBLY, Fuel - High PressurePUMP ASSEMBLY, Fuel - High Pressure
-
16NSS NOT SOLD SEPARATE, IsolatorNOT SOLD SEPARATE, Isolator
-
17NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
1884-8M0056175 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
19NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
20NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
2135-892665 FILTERFILTER
-
22892687A02 CARTRIDGE ASSEMBLY, Fuel FilterCARTRIDGE ASSEMBLY, Fuel Filter
-
23NSS NOT SOLD SEPARATE, Cap, Fuel Filter CartridgeNOT SOLD SEPARATE, Cap, Fuel Filter Cartridge
-
24NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
25NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
2635-8M0093688 FILTERFILTER
-
27NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
28NSS NOT SOLD SEPARATE, Cup, Fuel Filter CartridgeNOT SOLD SEPARATE, Cup, Fuel Filter Cartridge
-
2910-866114 SCREW, (.250-28) SpecialSCREW, (.250-28) Special
-
3022-88517 FITTING, ReducingFITTING, Reducing
