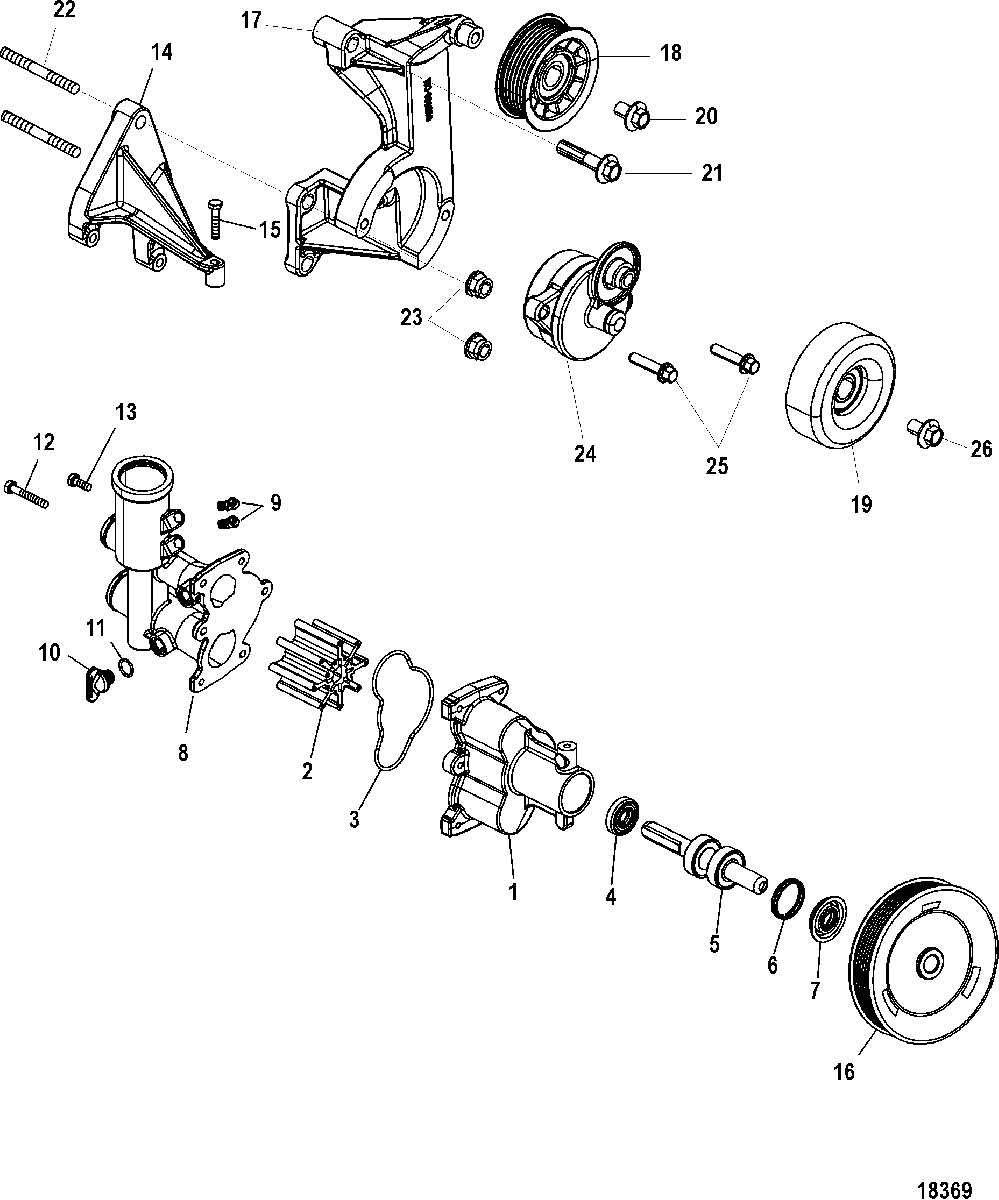

Seawater Pump для Mercruiser - 496 MAG (Base Model) 0W310000 THRU 0W649999
-
№АртикулНазвание
-
-46-8M0137218 PUMP KIT, Sea WaterPUMP KIT, Sea Water
-
18M0118062 HOUSING ASSEMBLY, ImpellerHOUSING ASSEMBLY, Impeller
-
247-8M0104229 IMPELLERIMPELLER
-
325-841807 O-RING, (3.500 x .103)O-RING, (3.500 x .103)
-
426-8M2001645 SEAL, OilSEAL, Oil
-
58M0050018 DRIVESHAFT ASSEMBLY, ImpellerDRIVESHAFT ASSEMBLY, Impeller
-
6862039 TOLERANCE RINGTOLERANCE RING
-
726-862040 SEAL, LipSEAL, Lip
-
8863674A04 COVER KIT, Impeller HousingCOVER KIT, Impeller Housing
-
922-8M0082321 FITTING, Gray (90 Degree)
(Gray)FITTING, Gray (90 Degree)
(Gray) -
922-8M0082322 FITTING, Orange (90 Degree)
(Orange)FITTING, Orange (90 Degree)
(Orange) -
1022-8M0119211 PLUG KIT, (.500-13) Royal BluePLUG KIT, (.500-13) Royal Blue
-
1125-32509 O-RING, (.489 x .070)O-RING, (.489 x .070)
-
1210-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1310-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
14863859T BRACKET, Sea Water PumpBRACKET, Sea Water Pump
-
1510-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
16862351T PULLEYPULLEY
-
17865596T01 BRACKET, Idler PulleyBRACKET, Idler Pulley
-
18865444T PULLEY, (3.50 Inch Diameter), Idler, GroovedPULLEY, (3.50 Inch Diameter), Idler, Grooved
-
19865777 PULLEY, Idler, Non-GroovedPULLEY, Idler, Non-Grooved
-
2010-4010816 SCREW, (M10 x 16) Hex Flange - Stainless SteelSCREW, (M10 x 16) Hex Flange - Stainless Steel
-
2110-4010845 SCREW, (M10 x 45) Hex Flange - Stainless SteelSCREW, (M10 x 45) Hex Flange - Stainless Steel
-
2216-854309 STUD, (M10 x 76)STUD, (M10 x 76)
-
2311-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
24865597T TENSIONER, BeltTENSIONER, Belt
-
2510-8M0103813 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
2610-4010820 SCREW, (M10 x 20) Hex Flange - Stainless SteelSCREW, (M10 x 20) Hex Flange - Stainless Steel
