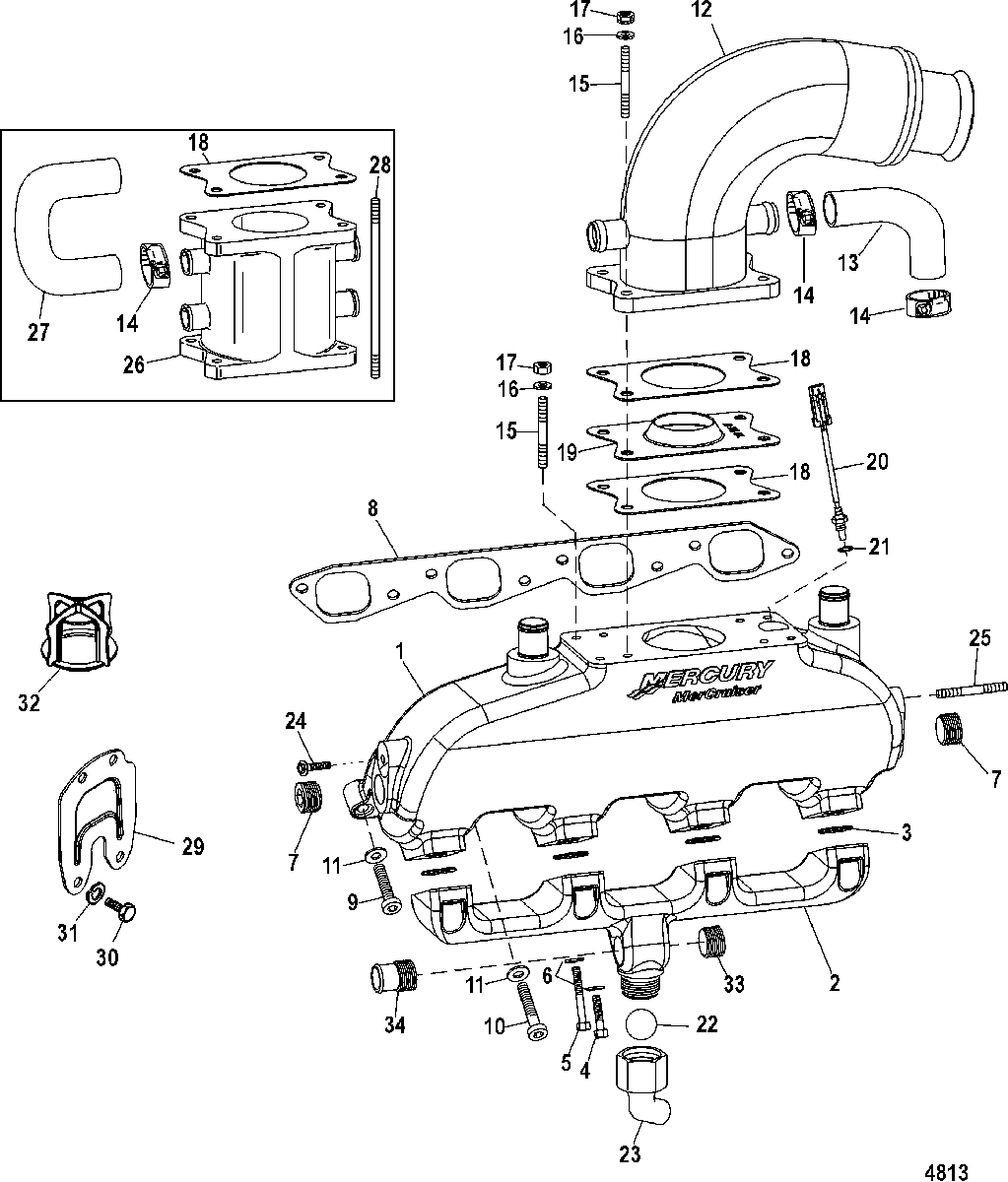

EXHAUST MANIFOLD(W/ WATER RAIL), ELBOW, AND RISER для Mercruiser - 496 MAG (H.O. Model) 0M025000 THRU 0M687143
-
№АртикулНазвание
-
1866178A02 MANIFOLD ASSEMBLY, ExhaustMANIFOLD ASSEMBLY, Exhaust
-
2862992T1 RAIL, WaterRAIL, Water
-
325-863090 O-RINGO-RING
-
410-4008825 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
510-4008845 SCREW, (M6 x 45)SCREW, (M6 x 45)
-
612-22937 WASHERWASHER
-
722-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
827-46820 GASKET, Exhaust Manifold to Cylinder HeadGASKET, Exhaust Manifold to Cylinder Head
-
910-4008935 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
1010-4008970 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
1112-12038 WASHERWASHER
-
12865331A02 ELBOW, Exhaust
(Standard Rise)ELBOW, Exhaust
(Standard Rise) -
12865332A02 ELBOW, Exhaust
(2 Inch Rise)ELBOW, Exhaust
(2 Inch Rise) -
1332-863095 HOSE, Elbow to ManifoldHOSE, Elbow to Manifold
-
1454-815504216 CLAMP, Worm Gear (1.56 Diameter), HoseCLAMP, Worm Gear (1.56 Diameter), Hose
-
1516-8204511 STUD, (M8 x 55)STUD, (M8 x 55)
-
1516-424632 STUD, (M8 x 37.1)STUD, (M8 x 37.1)
-
1612-12038 WASHERWASHER
-
1711-4002030 NUT, (M8)NUT, (M8)
-
1827-862356 GASKET, Elbow to ManifoldGASKET, Elbow to Manifold
-
198M2000433 TURBULATOR, ExhaustTURBULATOR, Exhaust
-
20889575 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
2125-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
2230-863129 BALL, CheckBALL, Check
-
23863116A1 CONNECTOR, Water RailCONNECTOR, Water Rail
-
2410-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
2516-424632 STUD, (M8 x 37.1)STUD, (M8 x 37.1)
-
268M0124066 RISER, (6 Inch)RISER, (6 Inch)
-
2732-863102 HOSEHOSE
-
2816-863121 STUD, (M8 x 194)STUD, (M8 x 194)
-
NS19-8M0074364 COVER, Hose Clamp EndCOVER, Hose Clamp End
-
29861776A2 PLATE KIT, Exhaust Block OffPLATE KIT, Exhaust Block Off
-
3010-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
3113-41471 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
32860222A1 RESONATOR, ExhaustRESONATOR, Exhaust
-
3322-865096 PLUG, CompositePLUG, Composite
-
3422-864930 FITTING, StraightFITTING, Straight
