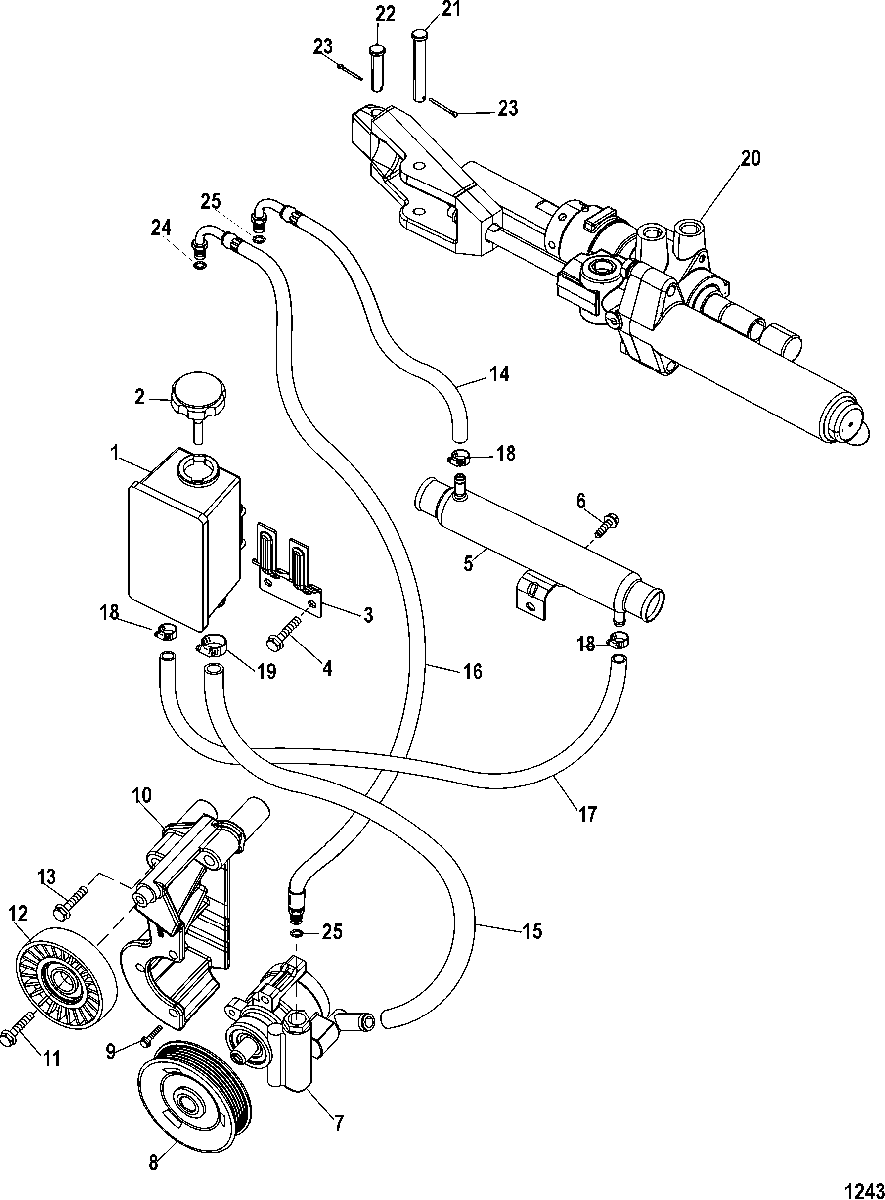

POWER STEERING для Mercruiser - 496 MAG (H.O. Model) 0M025000 THRU 0M687143
-
№АртикулНазвание
-
1865264A06 RESERVOIR ASSEMBLY, Power SteeringRESERVOIR ASSEMBLY, Power Steering
-
2806216 CAP, Power Steering Reservoir AssemblyCAP, Power Steering Reservoir Assembly
-
3863119 BRACKET, Power Steering ReservoirBRACKET, Power Steering Reservoir
-
410-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
58M0125855 COOLER, Power SteeringCOOLER, Power Steering
-
610-816585 SCREW, (.375-18 x .875)
Metal CoolerSCREW, (.375-18 x .875)
Metal Cooler -
610-8M2016106 SCREW, (.312 x 1.25)
Composite Cooler (Included with 861554T02)SCREW, (.312 x 1.25)
Composite Cooler (Included with 861554T02) -
7806230T PUMP, Power SteeringPUMP, Power Steering
-
8862751 PULLEY, Power SteeringPULLEY, Power Steering
-
910-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
10863856T BRACKET, Power Steering PumpBRACKET, Power Steering Pump
-
1110-4010816 SCREW, (M10 x 16) Hex Flange - Stainless SteelSCREW, (M10 x 16) Hex Flange - Stainless Steel
-
128M6500024 PULLEYPULLEY
-
1310-8M0012503 SCREW, (M10 x 100) Hex Flange - Stainless SteelSCREW, (M10 x 100) Hex Flange - Stainless Steel
-
1432-8062215 HOSE (Cylinder to Cooler)HOSE (Cylinder to Cooler)
-
1532-864229 HOSE (Pump to Reservoir)HOSE (Pump to Reservoir)
-
1632-86131720 HOSE (Pump to Cylinder)HOSE (Pump to Cylinder)
-
1732-8M0062341 HOSE, (53.00 Inches Bulk) (Reservoir to Cooler)
(Cut to 48 In.)HOSE, (53.00 Inches Bulk) (Reservoir to Cooler)
(Cut to 48 In.) -
1854-815504105 CLAMP, Worm Gear (11-18 mm), HoseCLAMP, Worm Gear (11-18 mm), Hose
-
1954-815504210 CLAMP, Worm Gear, HoseCLAMP, Worm Gear, Hose
-
208M0063382 ACTUATOR ASSEMBLY, Power SteeringACTUATOR ASSEMBLY, Power Steering
-
2117-15878 PIN, Clevis
(Long)PIN, Clevis
(Long) -
2217-16419 PIN, Clevis
(Short)PIN, Clevis
(Short) -
2318-46950 COTTER PIN, CotterCOTTER PIN, Cotter
-
2425-806232 O-RING, (.239 x .064)O-RING, (.239 x .064)
-
2525-89879 O-RING, (.301 x .064)O-RING, (.301 x .064)
-
NS19-8M0074363 COVER, Hose Clamp EndCOVER, Hose Clamp End
