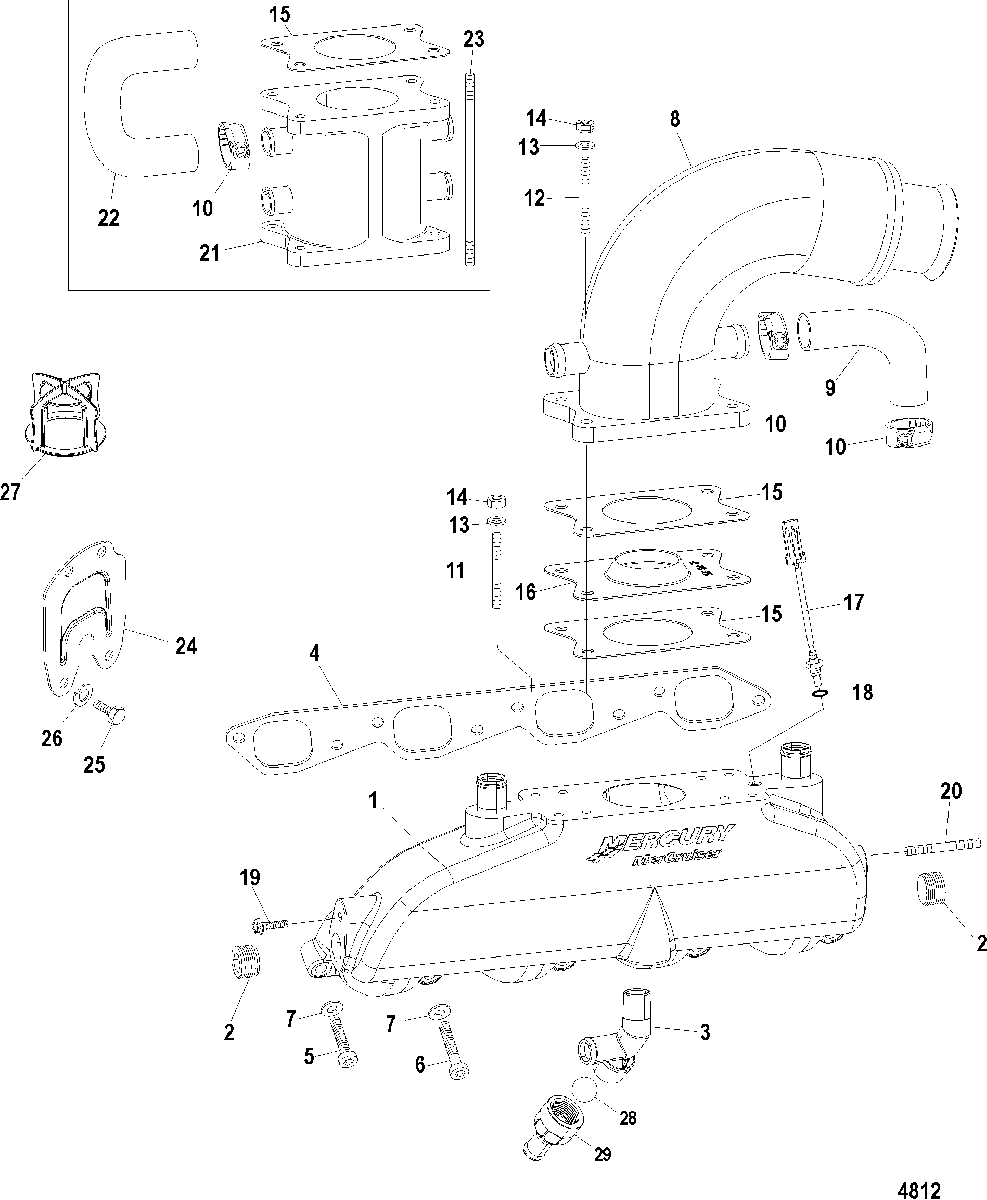

Exhaust Manifold, Elbow and Riser для Mercruiser - 496 MAG (H.O. Model) 0M687144 THRU 0W059999
-
№АртикулНазвание
-
1866178T01 MANIFOLD ASSEMBLY, ExhaustMANIFOLD ASSEMBLY, Exhaust
-
222-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
322-865341A03 FITTING, Port Exhaust ManifoldFITTING, Port Exhaust Manifold
-
322-865828A02 FITTING, Starboard Exhaust ManifoldFITTING, Starboard Exhaust Manifold
-
427-46820 GASKET, Exhaust Manifold to Cylinder HeadGASKET, Exhaust Manifold to Cylinder Head
-
510-4008935 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
610-4008970 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
712-12038 WASHERWASHER
-
8865331A02 ELBOW, Exhaust
(Standard Rise)ELBOW, Exhaust
(Standard Rise) -
8865332A02 ELBOW, Exhaust
(2 Inch Rise)ELBOW, Exhaust
(2 Inch Rise) -
932-863095 HOSE, Elbow to ManifoldHOSE, Elbow to Manifold
-
1054-815504216 CLAMP, Worm Gear (1.56 Diameter), HoseCLAMP, Worm Gear (1.56 Diameter), Hose
-
1116-8204511 STUD, (M8 x 55)STUD, (M8 x 55)
-
1216-424632 STUD, (M8 x 37.1)STUD, (M8 x 37.1)
-
1312-12038 WASHERWASHER
-
1411-4002030 NUT, (M8)NUT, (M8)
-
1527-862356 GASKET, Elbow to ManifoldGASKET, Elbow to Manifold
-
168M2000433 TURBULATOR, ExhaustTURBULATOR, Exhaust
-
17889575 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
1825-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
1910-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
2016-424632 STUD, (M8 x 37.1)STUD, (M8 x 37.1)
-
218M0124066 RISER, (6 Inch)RISER, (6 Inch)
-
2232-863102 HOSEHOSE
-
2316-863121 STUD, (M8 x 194)STUD, (M8 x 194)
-
NS19-8M0074364 COVER, Hose Clamp EndCOVER, Hose Clamp End
-
24861776A2 PLATE KIT, Exhaust Block OffPLATE KIT, Exhaust Block Off
-
2510-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2613-41471 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
27860222A1 RESONATOR, ExhaustRESONATOR, Exhaust
-
2830-863129 BALL, CheckBALL, Check
-
29864182T CONNECTORCONNECTOR
