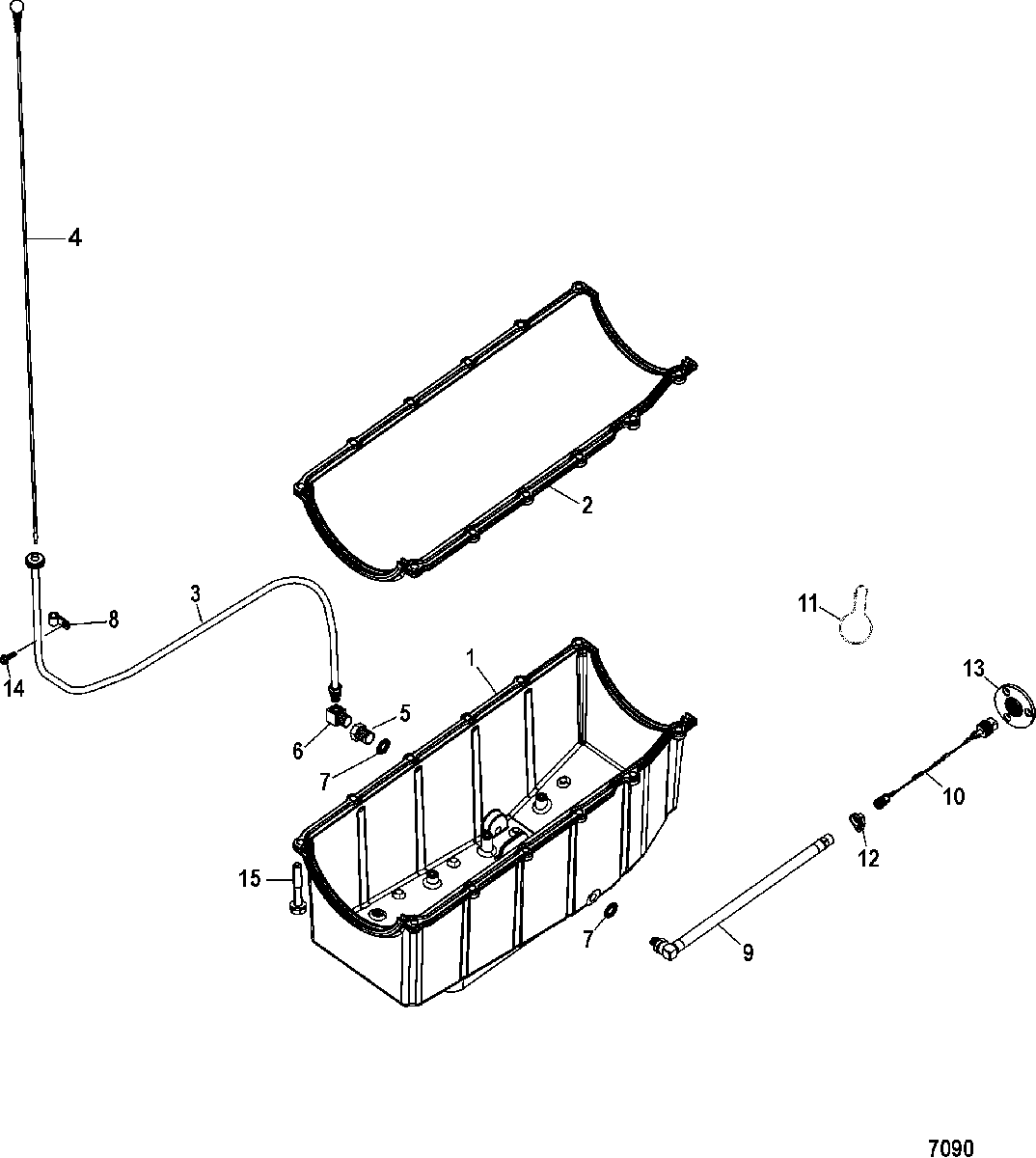

Oil Pan and Drain System для Mercruiser - 496 MAG (H.O. Model) 0M687144 THRU 0W059999

-
№АртикулНазвание
-
1881653001 PAN, OilPAN, Oil
-
NS883922 BAFFLE, Oil PanBAFFLE, Oil Pan
-
NS10-883923 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
227-881612 GASKET, Oil PanGASKET, Oil Pan
-
3863408 TUBE, Engine Oil Gauge
(MCM)TUBE, Engine Oil Gauge
(MCM) -
486194210 GAUGE, Oil LevelGAUGE, Oil Level
-
522-863389A01 FITTING, Oil Guage TubeFITTING, Oil Guage Tube
-
622-19697 ELBOWELBOW
-
727-8M0077608 GASKET, DrainGASKET, Drain
-
854-65653 CLIPCLIP
-
932-865281 HOSE, Oil DrainHOSE, Oil Drain
-
932-865280 HOSE, Oil Drain
(Jackshaft Models)HOSE, Oil Drain
(Jackshaft Models) -
NS25-805063 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
10862827 TETHER ASSEMBLYTETHER ASSEMBLY
-
1154-805524 CLIPCLIP
-
1254-863481 CLAMPCLAMP
-
13862777 FLANGE, DrainFLANGE, Drain
-
1410-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1510-898101392 BOLT, (M8 x 30)BOLT, (M8 x 30)
