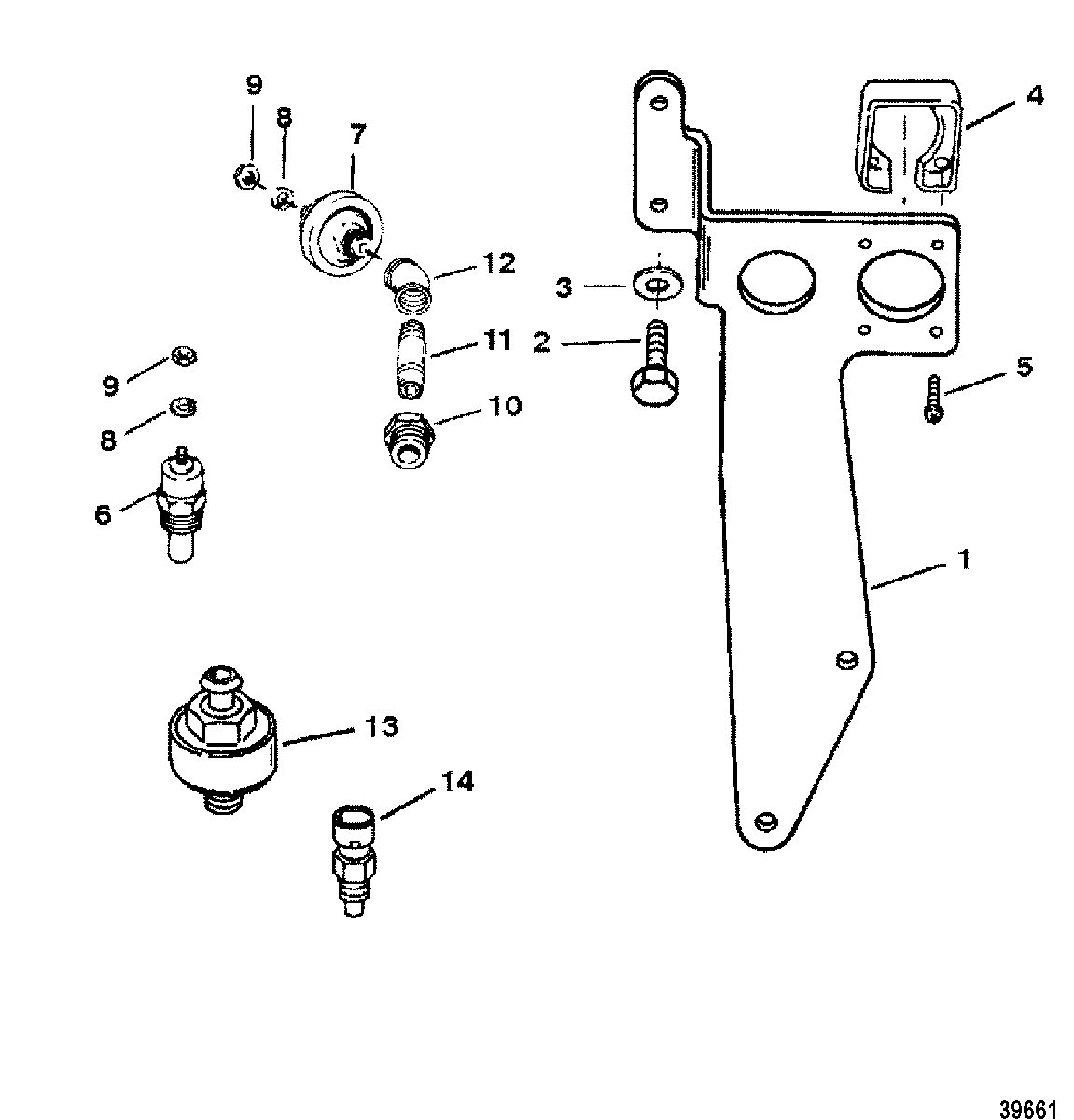

SENDERS AND HARNESS BRACKET для Mercruiser - 502 EFI (GEN. V) GM 502 V-8 1993-1995 0D840650 THRU 0F802599
-
№АртикулНазвание
-
1805441T1 BRACKET/LIFTING EYE (REAR)BRACKET/LIFTING EYE (REAR)
-
210-865982005 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
210-47461 SCREW, (.437-14 x 1.00)SCREW, (.437-14 x 1.00)
-
312-22248 WASHER, (.453 x .875 x .060)WASHER, (.453 x .875 x .060)
-
426079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
510-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
6806490T SENDER ASSEMBLY, Water TemperatureSENDER ASSEMBLY, Water Temperature
-
649734 SENDER ASSEMBLY, Water Temperature
(DUAL STATION)SENDER ASSEMBLY, Water Temperature
(DUAL STATION) -
78M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
737293T SENDER ASSEMBLY, Oil Pressure
(DUAL STATION)SENDER ASSEMBLY, Oil Pressure
(DUAL STATION) -
813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
911-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1022-48556 BUSHING , Reducer (.250 To .125)BUSHING , Reducer (.250 To .125)
-
1122-885153 NIPPLENIPPLE
-
1222-46932 ELBOWELBOW
-
138M0077616 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
14805218T SENSORSENSOR
