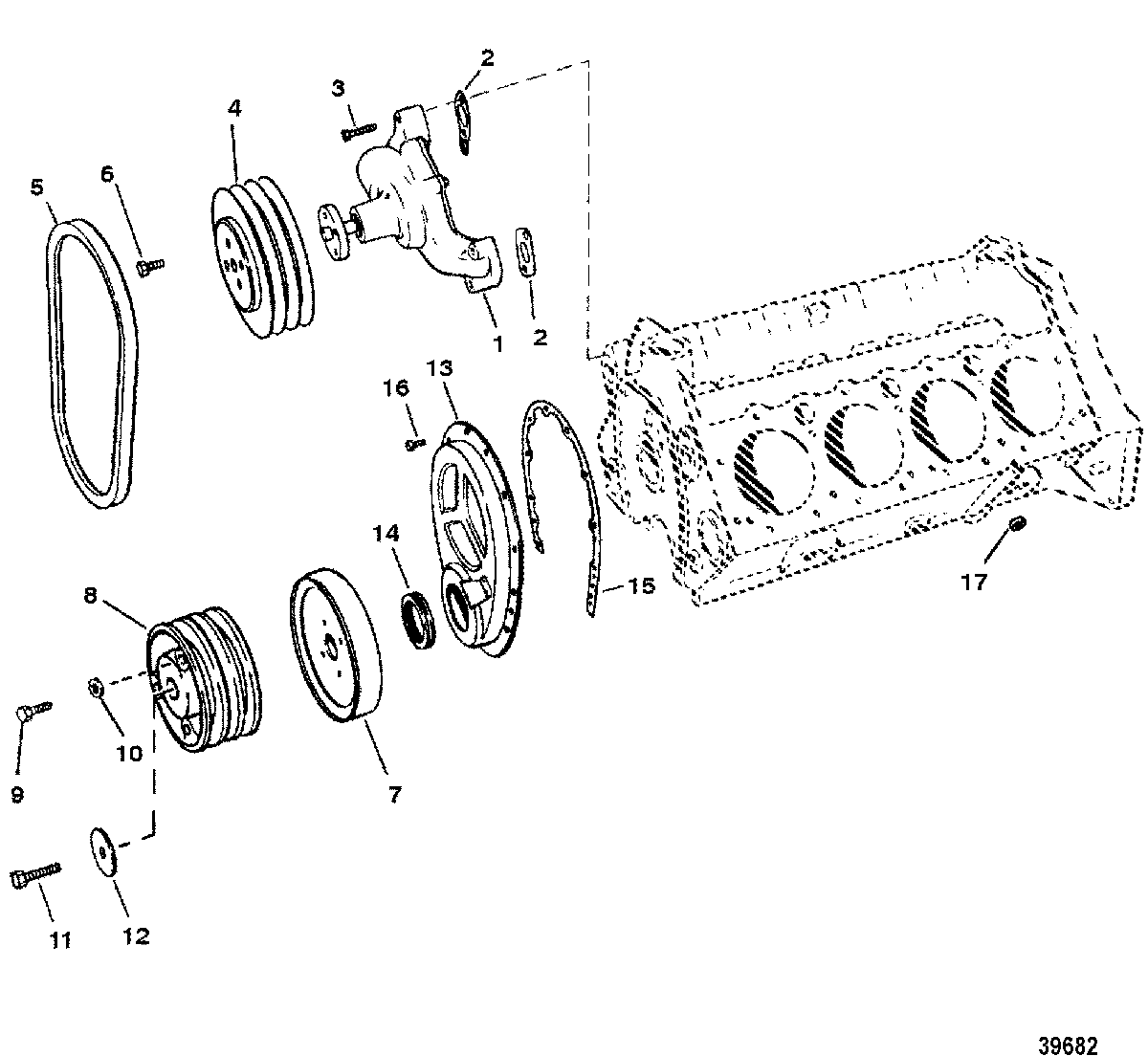

WATER PUMP AND FRONT COVER для Mercruiser - 502 EFI (GEN. V) GM 502 V-8 1993-1995 0D840650 THRU 0F802599
-
№АртикулНазвание
-
146-8M0113735 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
227-49110 GASKET, Circulating Water Pump MountGASKET, Circulating Water Pump Mount
-
310-805611 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
419692T01 PULLEY, (7 In. Diameter)PULLEY, (7 In. Diameter)
-
557-48122Q BELT, (48 Inches)BELT, (48 Inches)
-
610-47277 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
7845625T2 DAMPERDAMPER
-
890081T PULLEYPULLEY
-
910-358701 SCREW, (.375-16 x 2.00)SCREW, (.375-16 x 2.00)
-
1012-34714 WASHERWASHER
-
1110-845627 SCREW, (.500-20 x 2.500)SCREW, (.500-20 x 2.500)
-
1212-49103 WASHERWASHER
-
13811570 COVER ASSEMBLYCOVER ASSEMBLY
-
1426-8219471 SEALSEAL
-
1527-811572 GASKETGASKET
-
1610-8M0040582 SCREWSCREW
-
1734543 VALVE, Oil BypassVALVE, Oil Bypass
-
-27-811572A94 GASKET SET, Overhaul
(454 MAGNUM)GASKET SET, Overhaul
(454 MAGNUM) -
-27-805396A92 GASKET SET, Overhaul
(502 MAGNUM)GASKET SET, Overhaul
(502 MAGNUM)
