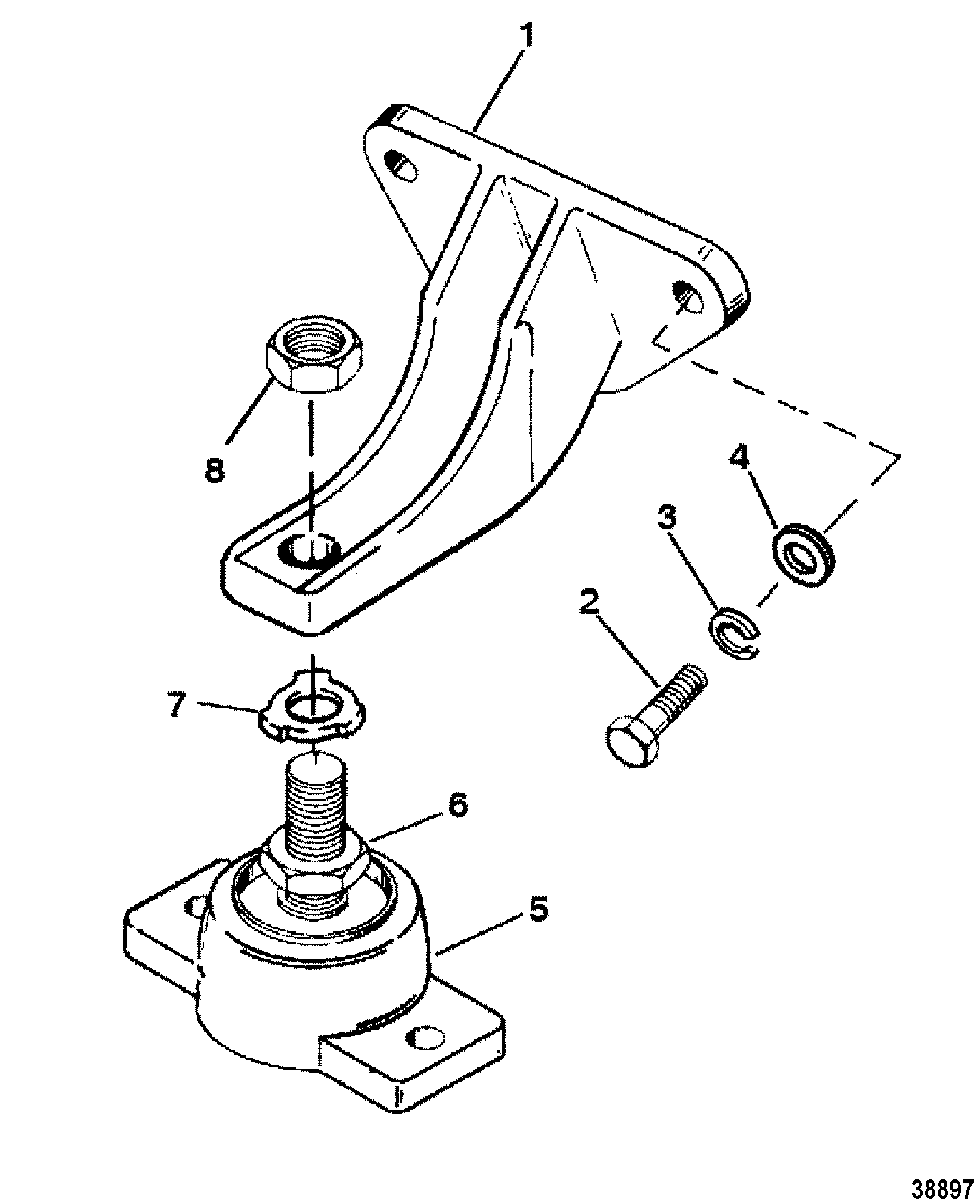

ENGINE MOUNTING для Mercruiser - 7.4L BRAVO (GEN. V) GM 454 V-8 1992-1996 0D603118 THRU 0F800699
-
№АртикулНазвание
-
179550A1 BRACKET (FRONT)BRACKET (FRONT)
-
210-68101 SCREW, (.375-16 x 1.375)
PORTSCREW, (.375-16 x 1.375)
PORT -
210-358701 SCREW, (.375-16 x 2.00)
PORTSCREW, (.375-16 x 2.00)
PORT -
313-35048 LOCKWASHER, (.375)
PORTLOCKWASHER, (.375)
PORT -
412-46132 WASHER
PORTWASHER
PORT -
210-68101 SCREW, (.375-16 x 1.375)
STARBOARDSCREW, (.375-16 x 1.375)
STARBOARD -
313-35048 LOCKWASHER, (.375)
STARBOARDLOCKWASHER, (.375)
STARBOARD -
5814263A1 BASE ASSEMBLYBASE ASSEMBLY
-
611-816331 NUT, (.750-16)NUT, (.750-16)
-
714-12657 TAB WASHERTAB WASHER
-
811-859126 NUTNUT
Все узлы модели:
- ALTERNATOR(MANDO # AC155603)
- ALTERNATOR(MANDO #AR-150)
- ALTERNATOR(PRESTOLITE #8EM2003KA)
- AUDIO WARNING SYSTEM
- CARBURETOR AND LINKAGE
- CARBURETOR(WEBER)
- CRANKSHAFT AND CONNECTING RODS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER(454 MAGNUM)
- CYLINDER HEAD AND ROCKER COVER(7.4L BRAVO)
- DISTRIBUTOR AND IGNITION COMPONENTS
- • ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST PLATE(454 MAGNUM)
- EXHAUST SYSTEM(7.4L BRAVO)
- FLAME ARRESTOR
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- MERCATHODE COMPONENTS
- OIL FILTER AND ADAPTOR(454 MAGNUM) S/N:0F114759 & BELOW
- OIL FILTER AND ADAPTOR(7.4L BRAVO) S/N:0F114759 & BELOW
- OIL FILTER AND ADAPTOR(7.4L BRAVO/454 MAG.) 0F114760 & UP
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- SEA WATER PUMP
- SERIVCE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STARTER AND ALTERNATOR
- STARTER MOTOR(3-1/4 IN. DIAMETER END CAP)
- STARTER MOTOR(8 IN. (PG 260)2-7/8 IN. DIAMETER END CAP)
- THERMOSTAT HOUSING(STANDARD COOLING) S/N: 0F305000 & UP
- THERMOSTAT HOUSING(STANDARD COOLING) S/N: 0F3519999 & BELOW
- WIRING HARNESS/ELECTRICAL(MOUNTED ON DISTRIBUTOR) TB IV
- WIRING HARNESS/ELECTRICAL(MOUNTED ON EXHAUST ELBOW)TB IV
- WIRING HARNESS/ELECTRICAL(THUNDERBOLT V IGNITION)
