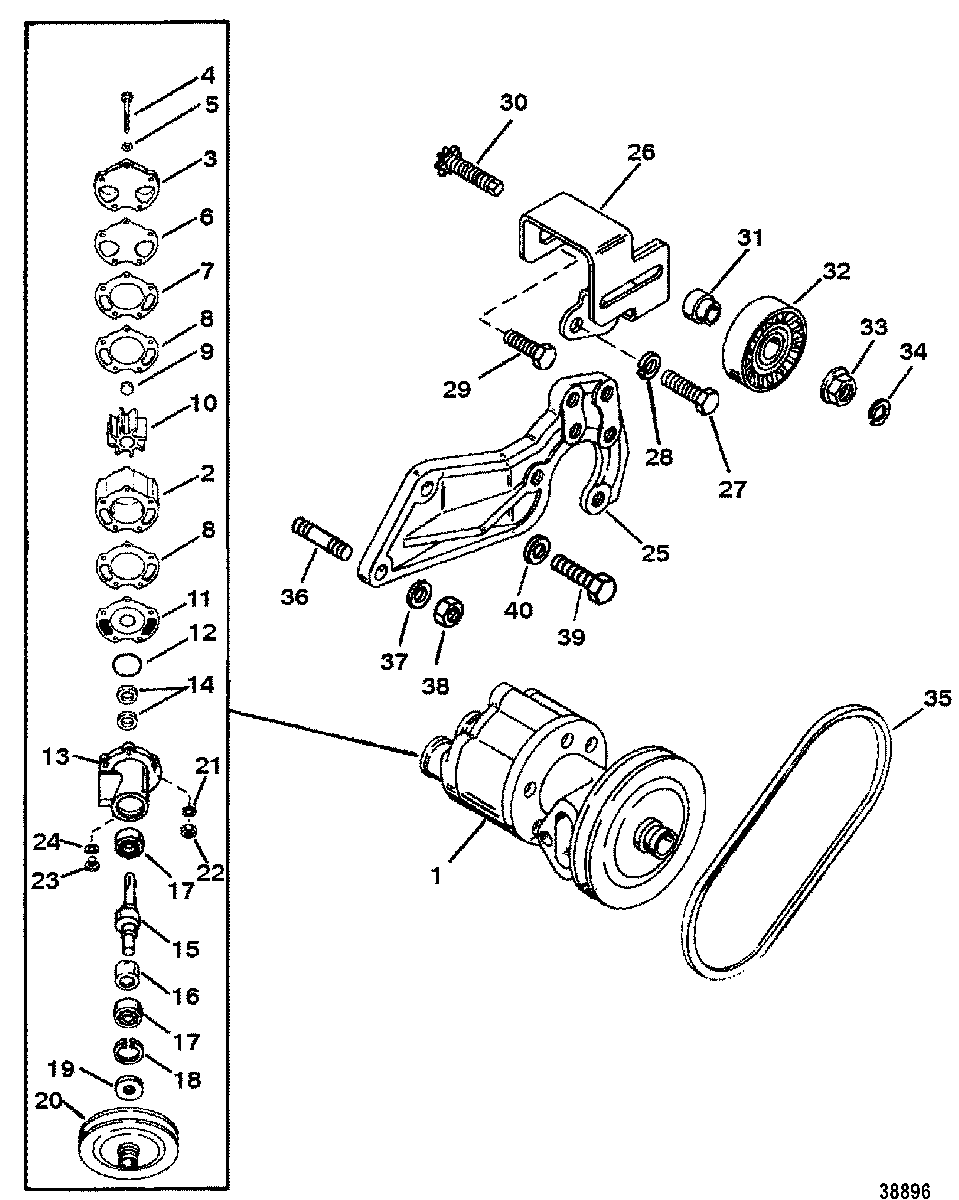

SEA WATER PUMP для Mercruiser - 7.4L BRAVO (GEN. V) GM 454 V-8 1992-1996 0D603118 THRU 0F800699
-
№АртикулНазвание
-
146-807151A8 PUMP ASSEMBLY, Sea Water - CompletePUMP ASSEMBLY, Sea Water - Complete
-
246-72774A40 BODY ASSEMBLY, Sea Water - CompleteBODY ASSEMBLY, Sea Water - Complete
-
387631A4 COVER KITCOVER KIT
-
410-99347 SCREW, (.312-18 x 3.75)SCREW, (.312-18 x 3.75)
-
512-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
627-8052151 GASKETGASKET
-
794916 WEAR PLATEWEAR PLATE
-
827-94914 GASKETGASKET
-
919-59504 PLUGPLUG
-
1047-59362T1 IMPELLERIMPELLER
-
1194576 WEAR PLATEWEAR PLATE
-
1225-94288 QUAD RINGQUAD RING
-
13818367A1 HOUSING ASSEMBLYHOUSING ASSEMBLY
-
1426-90562 SEAL, (1.254 x .312)SEAL, (1.254 x .312)
-
15818366A1 SHAFT KITSHAFT KIT
-
16818745A1 RING KITRING KIT
-
1730-72961 BEARING, BallBEARING, Ball
-
1853-23720 RING, RetainingRING, Retaining
-
1926-806930 SEALSEAL
-
20818365T PULLEYPULLEY
-
2113-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
2211-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
2310-79953Q04 SCREW KIT, (.375-16 x .250)SCREW KIT, (.375-16 x .250)
-
2412-191833 WASHER, FiberWASHER, Fiber
-
25818368T1 BRACKETBRACKET
-
26818379T BRACKETBRACKET
-
2710-76926 SCREW, (.375-16 x .875)SCREW, (.375-16 x .875)
-
2813-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2910-17965 SCREW, (.437-14 x .70)SCREW, (.437-14 x .70)
-
3043-8M0113182 PINION STUD, (.437-20) Stainless SteelPINION STUD, (.437-20) Stainless Steel
-
31865193 BUSHINGBUSHING
-
328M6500024 PULLEYPULLEY
-
3311-859135 NUT, (.437-20)NUT, (.437-20)
-
3453-821115 RING, RetainingRING, Retaining
-
3557-69143Q V BELTV BELT
-
3616-64281 STUD, (.375-16/.375-24 x 1.880)STUD, (.375-16/.375-24 x 1.880)
-
3713-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3811-46335 NUT, (.375-24)NUT, (.375-24)
-
3616-806591 STUD, (7/16-14) (7/16-14)STUD, (7/16-14) (7/16-14)
-
3713-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
3811-22024 NUT, (.437-14)NUT, (.437-14)
-
3910-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
4013-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
