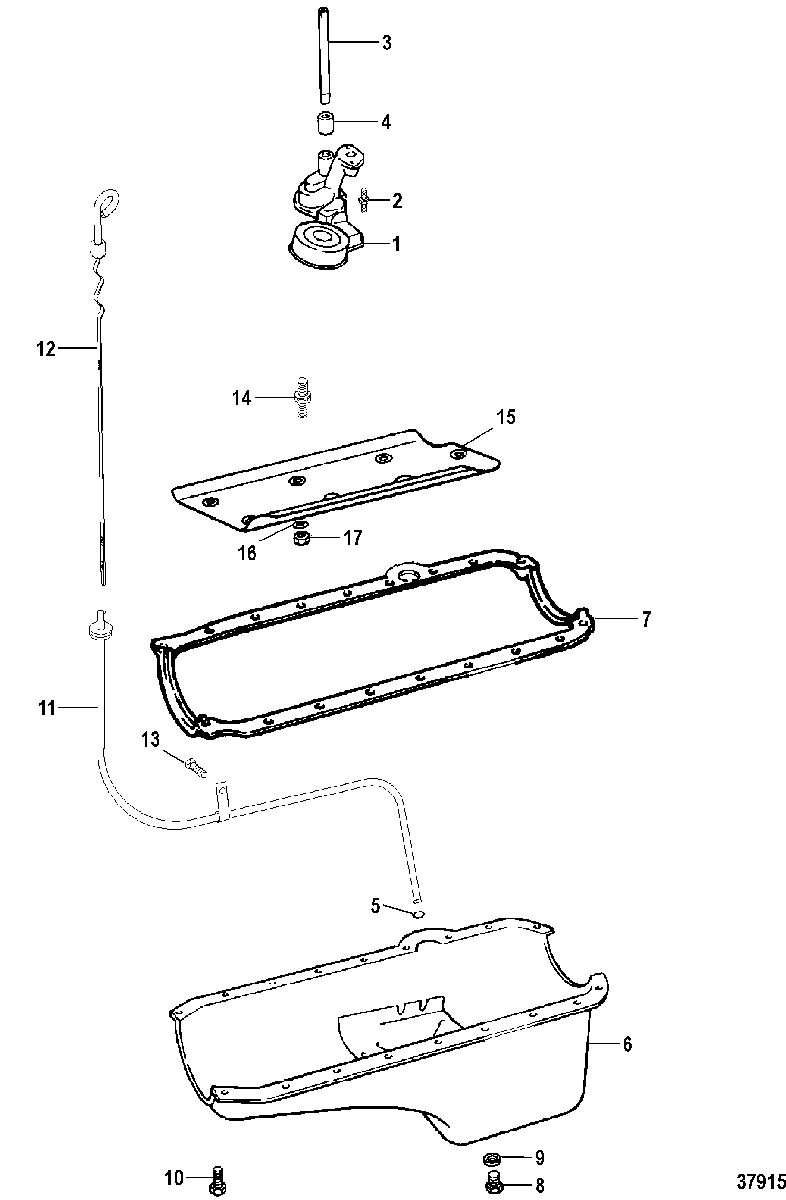

OIL PAN AND OIL PUMP для Mercruiser - 7.4L BRAVO (GEN. VI) GM 454 V-8 1996-1997 0F800700 THRU 0K999999
-
№АртикулНазвание
-
1827643 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
216-845599 STUD, Oil Pump MountingSTUD, Oil Pump Mounting
-
38M0046892 SHAFT AND RETAINERSHAFT AND RETAINER
-
423-36183 RETAINERRETAINER
-
525-62704 O-RING, (.362 x .103)O-RING, (.362 x .103)
-
6845668T PAN ASSEMBLY, OilPAN ASSEMBLY, Oil
-
727-845628 GASKET, Oil PanGASKET, Oil Pan
-
810-809911001 SCREW, Oil Drain (M12 x 1.75)SCREW, Oil Drain (M12 x 1.75)
-
927-8M0077608 GASKET, DrainGASKET, Drain
-
1010-841389 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
11818631A6 TUBE ASSEMBLY, DipstickTUBE ASSEMBLY, Dipstick
-
12861942T9 DIPSTICKDIPSTICK
-
1310-8M0040582 SCREW, (.250-20 x .563)SCREW, (.250-20 x .563)
-
1416-843375 STUD, (.375-16/.500-12 x 5.500)STUD, (.375-16/.500-12 x 5.500)
-
15843945T BAFFLE, OilBAFFLE, Oil
-
1612-49112 WASHERWASHER
-
1711-37500 NUT, (3/8-16) (3/8-16)NUT, (3/8-16) (3/8-16)
-
-27-850470A96 GASKET SET, Overhaul
(7.4L BRAVO)GASKET SET, Overhaul
(7.4L BRAVO) -
-27-850465A96 GASKET SET, Overhaul
(454 MAGNUM)GASKET SET, Overhaul
(454 MAGNUM)
