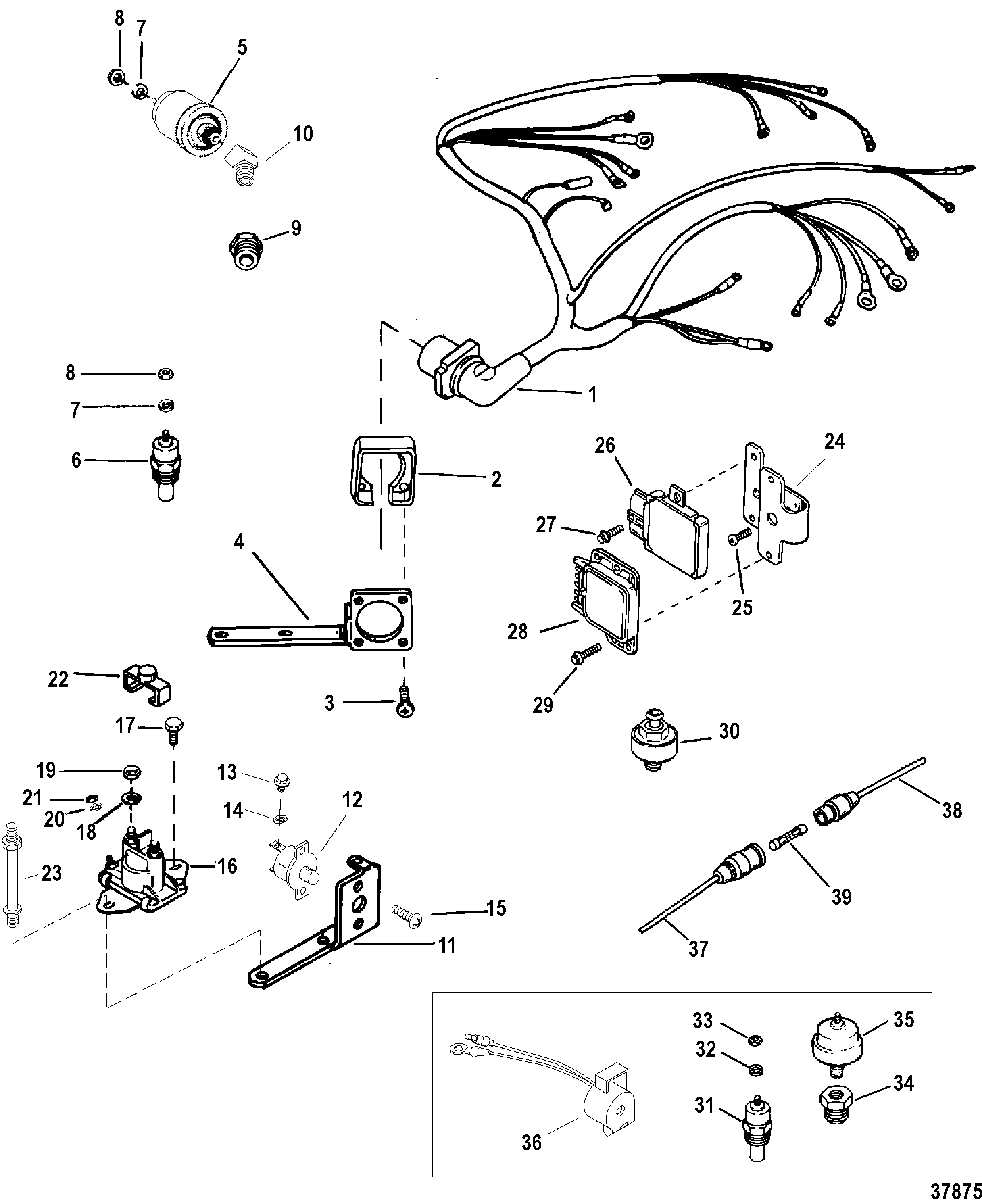

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 7.4L BRAVO (GEN. VI) GM 454 V-8 1996-1997 0F800700 THRU 0K999999
-
№АртикулНазвание
-
184-806744A2 HARNESS ASSEMBLY, WiringHARNESS ASSEMBLY, Wiring
-
226079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
310-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
4805468T BRACKET, Wiring Harness MountingBRACKET, Wiring Harness Mounting
-
58M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
537293T SENDER ASSEMBLY, Oil Pressure (Dual Station)SENDER ASSEMBLY, Oil Pressure (Dual Station)
-
6806490T SENDER ASSEMBLY, Water TemperatureSENDER ASSEMBLY, Water Temperature
-
649734 SENDER ASSEMBLY, Water Temperature (Dual Station)SENDER ASSEMBLY, Water Temperature (Dual Station)
-
713-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
811-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
922-805059 FITTINGFITTING
-
1022-8M0123050 FITTING, Elbow (45 Degree)FITTING, Elbow (45 Degree)
-
11899719T01 BRACKET, Electrical, MountingBRACKET, Electrical, Mounting
-
1288-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
1310-68513 SCREW, (#10-32 x .375) Stainless SteelSCREW, (#10-32 x .375) Stainless Steel
-
1413-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1510-57583T SCREW, (#8-32 x .375)SCREW, (#8-32 x .375)
-
1689-96158T SOLENOID, StarterSOLENOID, Starter
-
1710-805564 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
1813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1911-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
2013-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2111-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2285-97861 INSULATORINSULATOR
-
2316-805459 STUD, Mercathode MountingSTUD, Mercathode Mounting
-
24807763T BRACKET, ModuleBRACKET, Module
-
2510-861520 SCREW, (10-32 x .50)SCREW, (10-32 x .50)
-
26806959A01 MODULE, Ignition Control
(7.4L BRAVO)MODULE, Ignition Control
(7.4L BRAVO) -
26806745A01 MODULE, Ignition Control
(454 MAGNUM)MODULE, Ignition Control
(454 MAGNUM) -
2710-806826 SCREW, (#8-32 x .250)SCREW, (#8-32 x .250)
-
28805443 MODULE ASSEMBLY, Knock ControlMODULE ASSEMBLY, Knock Control
-
2910-806827 SCREW, (#8-32 x .380)SCREW, (#8-32 x .380)
-
308M0077616 SENSOR ASSEMBLY, KnockSENSOR ASSEMBLY, Knock
-
3148952 SWITCH, Water Temperature
AUDIO WARNING SYSTEMSWITCH, Water Temperature
AUDIO WARNING SYSTEM -
3213-26996 LOCKWASHER, (#10) Stainless Steel
AUDIO WARNING SYSTEMLOCKWASHER, (#10) Stainless Steel
AUDIO WARNING SYSTEM -
3311-45076 NUT, (#10-32) Brass
AUDIO WARNING SYSTEMNUT, (#10-32) Brass
AUDIO WARNING SYSTEM -
3422-64013 FITTING, (.375 Male To .125 Female)
AUDIO WARNING SYSTEMFITTING, (.375 Male To .125 Female)
AUDIO WARNING SYSTEM -
3587-805605A1 SWITCH ASSEMBLY, Oil Pressure
AUDIO WARNING SYSTEMSWITCH ASSEMBLY, Oil Pressure
AUDIO WARNING SYSTEM -
36816492A6 ALARM KIT
AUDIO WARNING SYSTEMALARM KIT
AUDIO WARNING SYSTEM -
3784-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (Female)CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (Female)
-
3884-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red (Male)CABLE ASSEMBLY, (5.00 Inches) Red (Male)
-
3988-79091 FUSE, 20 AmpereFUSE, 20 Ampere
