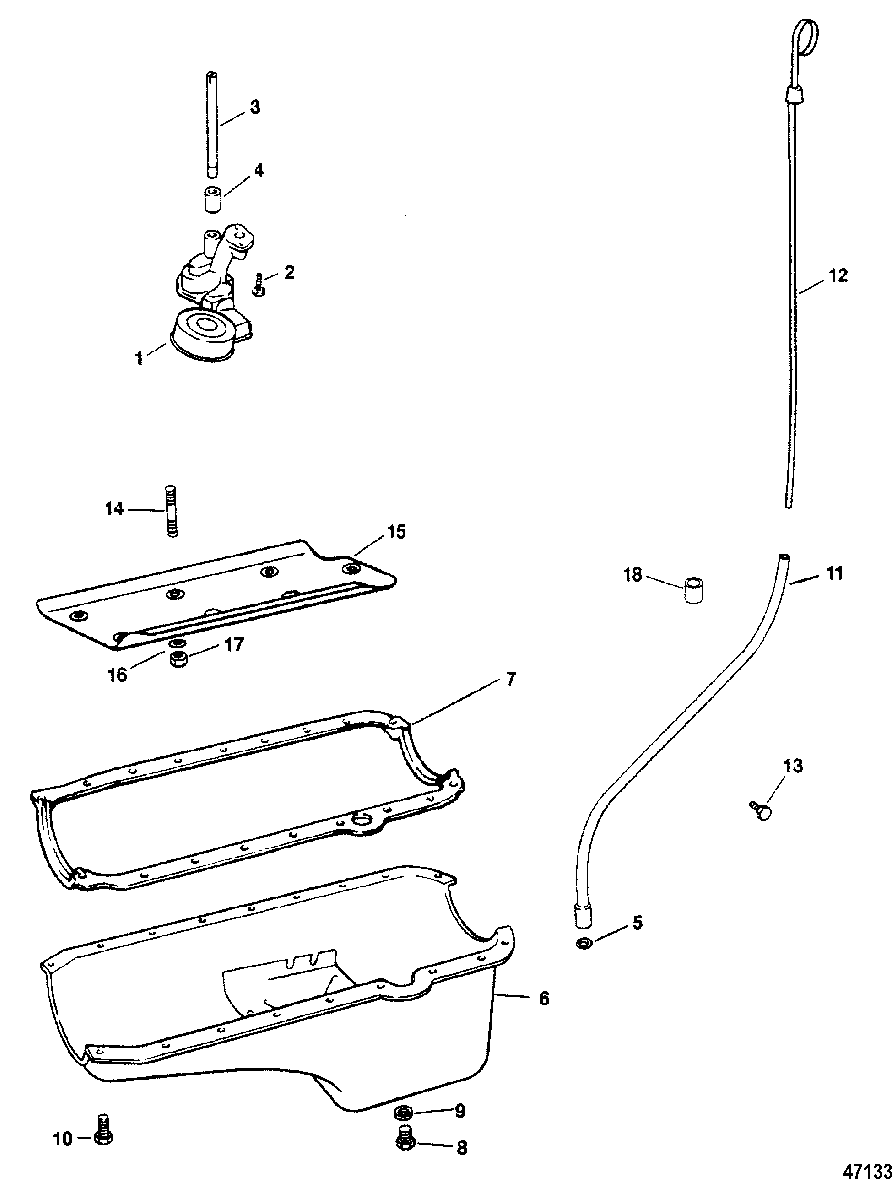

OIL PAN AND OIL PUMP для Mercruiser - 7.4LX BRAVO (MPI)(GEN. V) GM 454 V-8 1996 0F602010 THRU 0F801999
-
№АртикулНазвание
-
1827643 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
210-813071 SCREWSCREW
-
38M0046892 SHAFT AND RETAINERSHAFT AND RETAINER
-
423-36183 RETAINERRETAINER
-
525-62704 O-RING, (.362 x .103)O-RING, (.362 x .103)
-
6845668T PAN ASSEMBLYPAN ASSEMBLY
-
727-845628 GASKETGASKET
-
810-49956 SCREW, DrainSCREW, Drain
-
927-8M0077608 GASKET, DrainGASKET, Drain
-
1010-34500 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
11818631A6 TUBE ASSEMBLY, DipstickTUBE ASSEMBLY, Dipstick
-
12861942T9 DIPSTICKDIPSTICK
-
1310-8M0040582 SCREW, (.250-20 x .563)SCREW, (.250-20 x .563)
-
1416-843375 STUD, (.375-16/.500-12 x 5.500)STUD, (.375-16/.500-12 x 5.500)
-
15843945T BAFFLEBAFFLE
-
1612-49112 WASHERWASHER
-
1711-37500 NUT, (3/8-16)NUT, (3/8-16)
-
1819-818841 PLUG, Oil Pan Dipstick HolePLUG, Oil Pan Dipstick Hole
-
-27-805396A95 GASKET SETGASKET SET
