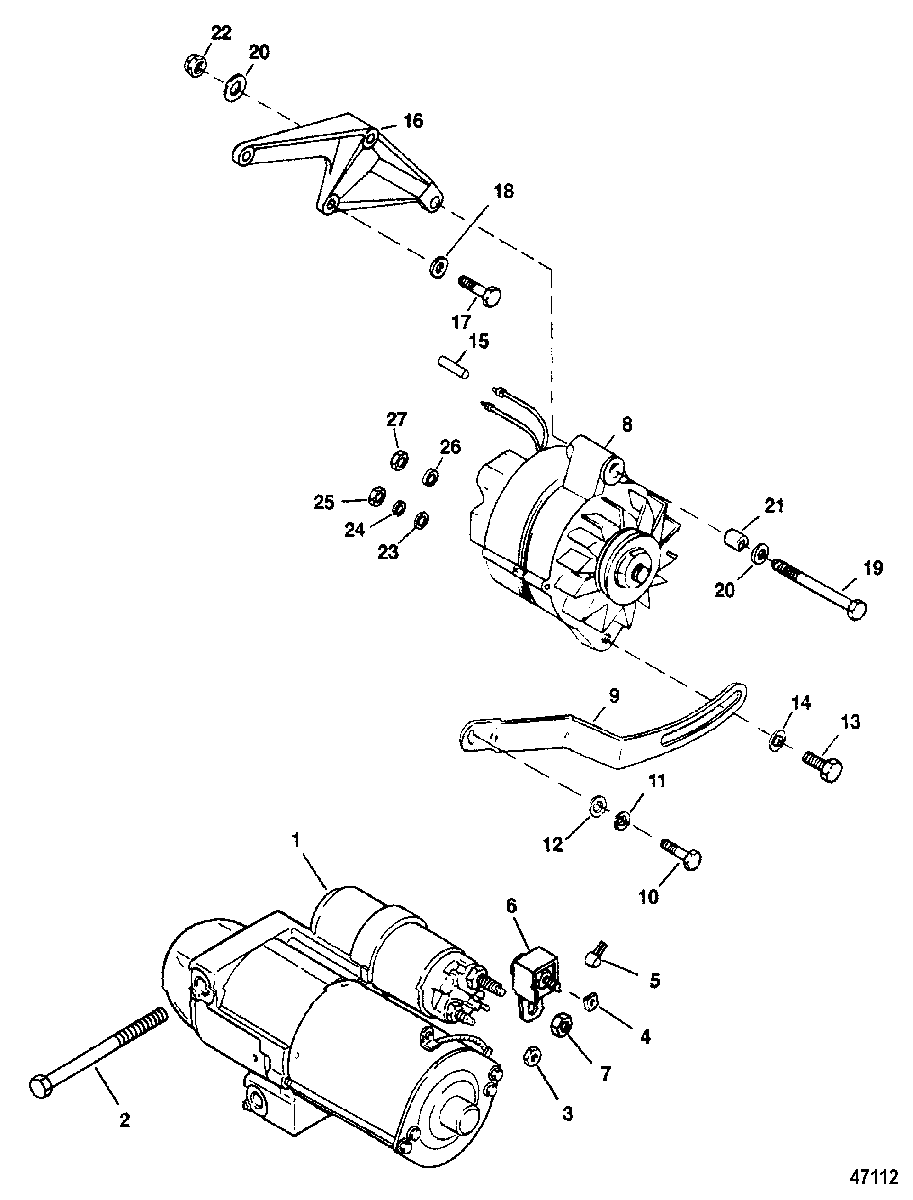

STARTER MOTOR AND ALTERNATOR для Mercruiser - 7.4LX BRAVO (MPI)(GEN. V) GM 454 V-8 1996 0F602010 THRU 0F801999
-
№АртикулНазвание
-
150-863007A1 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
210-8053432 SCREW, (.375-16 x 4.33)SCREW, (.375-16 x 4.33)
-
311-806949 NUT, (M8-1.5) (8MM)NUT, (M8-1.5) (8MM)
-
411-400211 NUT, (M5) Stainless Steel (5MM)NUT, (M5) Stainless Steel (5MM)
-
585-79695T BOOT, Insulator - BlackBOOT, Insulator - Black
-
688-79023A91 FUSE ASSEMBLY, 90 Ampere (90 AMP)FUSE ASSEMBLY, 90 Ampere (90 AMP)
-
711-21825 NUT, (.250-28)NUT, (.250-28)
-
8805884T ALTERNATORALTERNATOR
-
985013T BRACEBRACE
-
1010-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
1113-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1212-31263 WASHERWASHER
-
1310-29198 SCREW AND LOCKWASHER, (.312-18 x .875) (7/8 IN.)SCREW AND LOCKWASHER, (.312-18 x .875) (7/8 IN.)
-
1412-26168 WASHERWASHER
-
1532-7381567 TUBING, (42.00 Inches Bulk)TUBING, (42.00 Inches Bulk)
-
16806394A1 BRACKETBRACKET
-
1710-47462 SCREW, (.437-14 x 1.250) (1-1/4 IN.)SCREW, (.437-14 x 1.250) (1-1/4 IN.)
-
1710-91903 SCREW, (.437-14 x 1.750) (1-3/4 IN.)SCREW, (.437-14 x 1.750) (1-3/4 IN.)
-
1812-22248 WASHER, (.453 x .875 x .060)WASHER, (.453 x .875 x .060)
-
1910-48308 SCREW, (.375-24 x 3.750) (3-3/4 IN.)SCREW, (.375-24 x 3.750) (3-3/4 IN.)
-
2012-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
2123-33186 BUSHINGBUSHING
-
2211-23161 NUT, (.375-24)NUT, (.375-24)
-
2312-96457 WASHER, Phenolic (.27 x .81 x .062)WASHER, Phenolic (.27 x .81 x .062)
-
2413-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2511-79989 NUT, (#10-24) Stainless Steel (10-24)NUT, (#10-24) Stainless Steel (10-24)
-
2613-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2711-94330 NUT, (.250-20) Brass (1/4-20)NUT, (.250-20) Brass (1/4-20)
