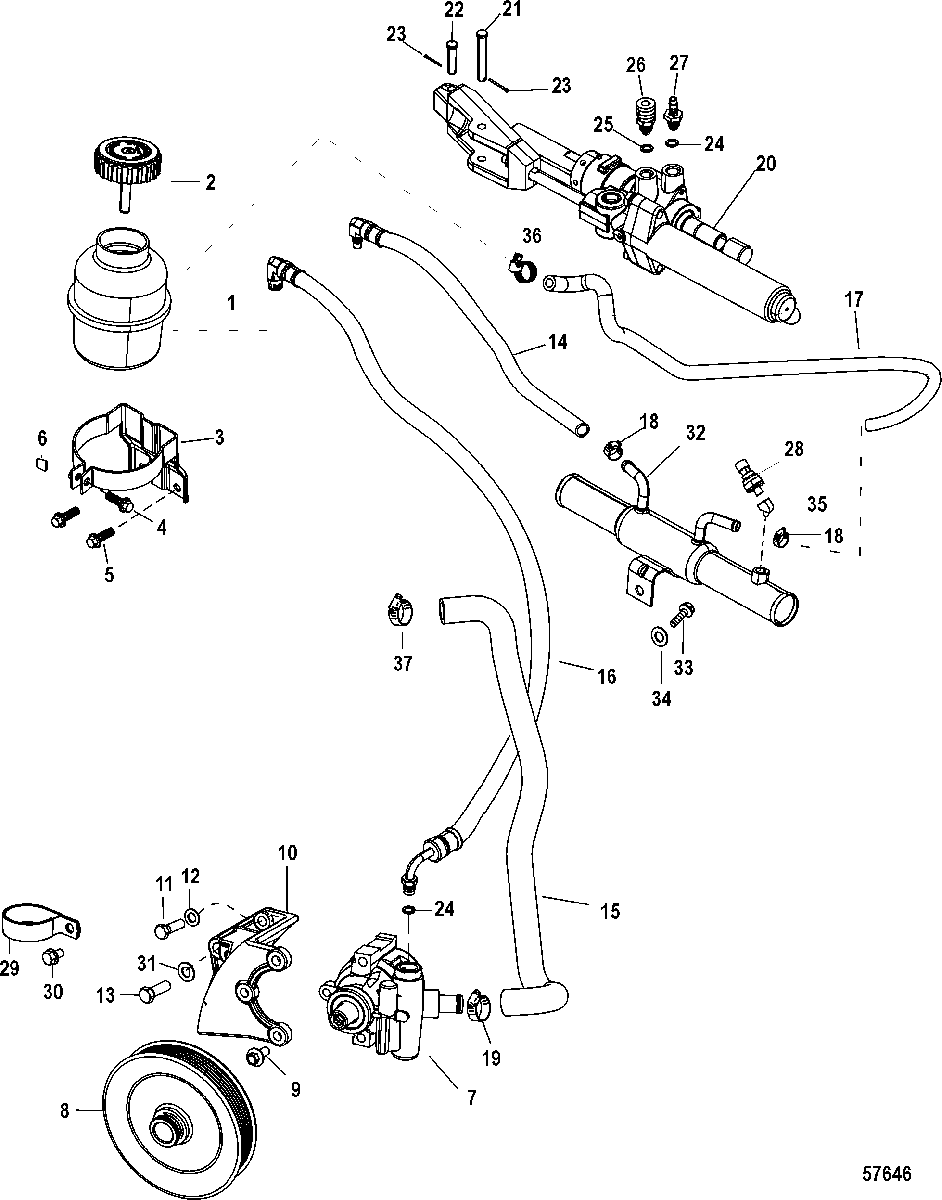

Steering Components для Mercruiser - 8.2L Mag EC (Base Model) 2A051743 & Up
-
№АртикулНазвание
-
18M0121094 RESERVOIR ASSEMBLY, Power SteeringRESERVOIR ASSEMBLY, Power Steering
-
219-8M2022150 CAP, Reservoir, BrownCAP, Reservoir, Brown
-
38M0069721 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
410-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
510-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
6NSS NOT SOLD SEPARATE
CoverNOT SOLD SEPARATE
Cover -
7865710T PUMP, Power SteeringPUMP, Power Steering
-
8861578 PULLEY, Power SteeringPULLEY, Power Steering
-
910-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
108M0045250 BRACKET, Power Steering PumpBRACKET, Power Steering Pump
-
1110-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
1212-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
1310-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
1432-865390015 HOSE, Male Quick Connect, Cylinder to CoolerHOSE, Male Quick Connect, Cylinder to Cooler
-
1532-8M0069812 HOSE, Pump to ReservoirHOSE, Pump to Reservoir
-
1632-8M0104321 HOSE, Pump to CylinderHOSE, Pump to Cylinder
-
1732-8M2022130 HOSE, Reservoir to CoolerHOSE, Reservoir to Cooler
-
1854-815504105 CLAMP, Worm Gear (11-18 mm), HoseCLAMP, Worm Gear (11-18 mm), Hose
-
1954-815504210 CLAMP, Worm Gear, HoseCLAMP, Worm Gear, Hose
-
208M0063382 CYLINDER ASSEMBLY, Power SteeringCYLINDER ASSEMBLY, Power Steering
-
2117-15878 PIN, Clevis
LongPIN, Clevis
Long -
2217-16419 PIN, Clevis
ShortPIN, Clevis
Short -
2318-46950 COTTER PINCOTTER PIN
-
2425-806232 O-RING, (.239 x .064)O-RING, (.239 x .064)
-
2525-89879 O-RING, (.301 x .064)O-RING, (.301 x .064)
-
2622-865415 FITTINGFITTING
-
2722-865414001 FITTINGFITTING
-
288M6000623 SENSORSENSOR
-
2954-62494 CLIPCLIP
-
3010-8055571 SCREW, (.3125-18 x .50)SCREW, (.3125-18 x .50)
-
3112-22248 WASHER, (.453 x .875 x .060)WASHER, (.453 x .875 x .060)
-
328M0125856 COOLER, Power SteeringCOOLER, Power Steering
-
3310-816585 SCREW, (.375-18 x .875)SCREW, (.375-18 x .875)
-
3413-72521 LOCKWASHER, Internal ToothLOCKWASHER, Internal Tooth
-
3522-8M0123050 FITTING, Elbow (45 Degree)FITTING, Elbow (45 Degree)
-
3654-F698772 CLAMP, Worm GearCLAMP, Worm Gear
-
3754-8M0083431 CLAMPCLAMP
