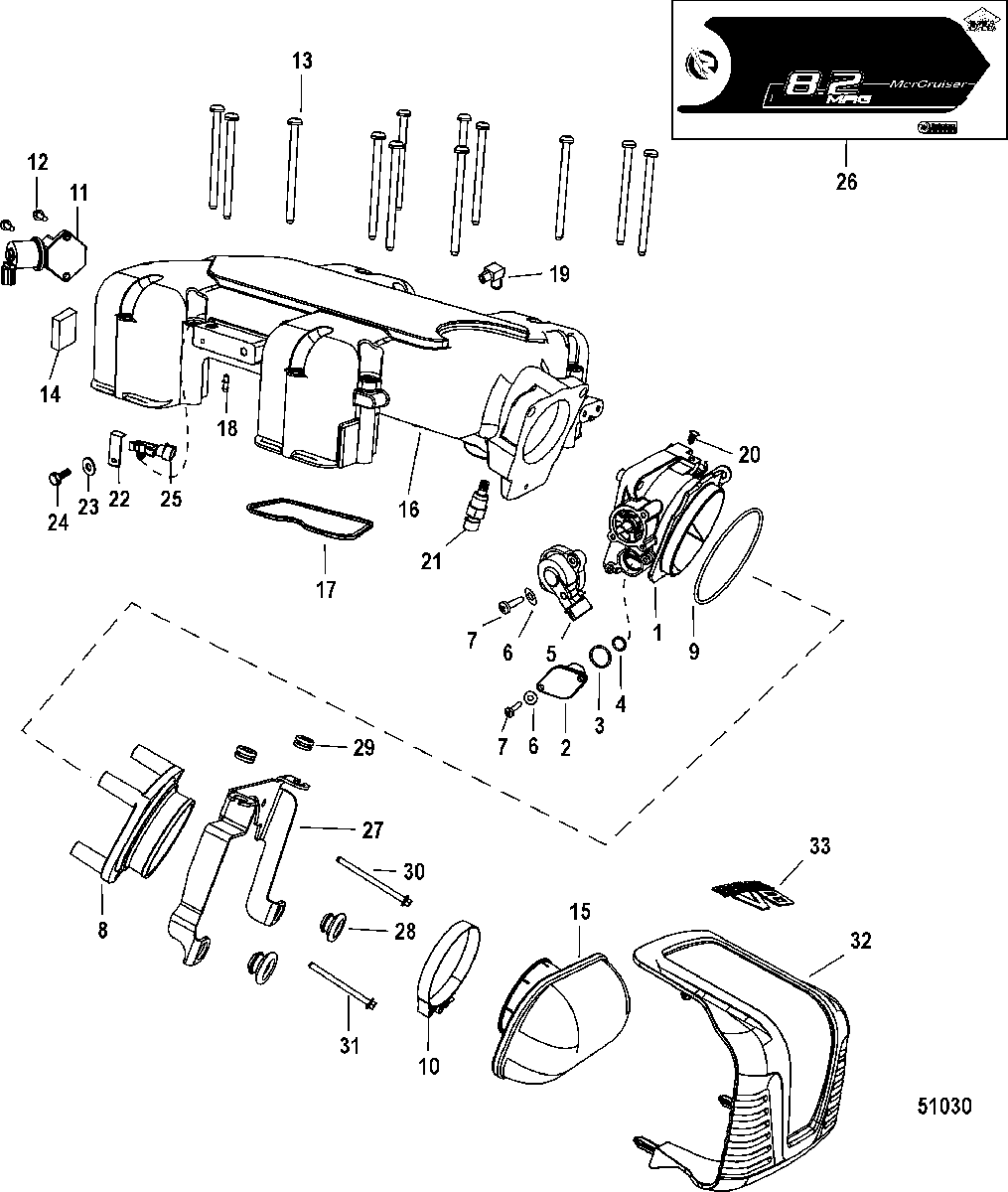

Throttle Body, Mechanical Throttle-Shift для Mercruiser - 8.2L Mag EC (Base Model) 2A051743 & Up
-
№АртикулНазвание
-
18M0045241 THROTTLE BODY ASSEMBLYTHROTTLE BODY ASSEMBLY
-
2862999002 PLUGPLUG
-
325-808547 O-RINGO-RING
-
425-863006 O-RINGO-RING
-
58M0097035 SENSOR, TPSSENSOR, TPS
-
612-11303 WASHERWASHER
-
710-4008612 SCREW, (M4 x 12)SCREW, (M4 x 12)
-
88M0045765 ADAPTOR, Flame Arrestor
High OutputADAPTOR, Flame Arrestor
High Output -
88M0045766 ADAPTOR, Flame Arrestor
BaseADAPTOR, Flame Arrestor
Base -
925-841807 O-RING, (3.500 x .103)O-RING, (3.500 x .103)
-
1054-863393 CLAMPCLAMP
-
118M0045797 VALVE ASSEMBLY, Idle AirVALVE ASSEMBLY, Idle Air
-
1210-8M0103806 SCREW, (M6 x 20 MM) Stainless SteelSCREW, (M6 x 20 MM) Stainless Steel
-
1310-805391 SCREW, (.312-18 x 4.500)SCREW, (.312-18 x 4.500)
-
1435-865266 FILTERFILTER
-
158M0113517 FLAME ARRESTORFLAME ARRESTOR
-
168M0045239 PLENUM ASSEMBLYPLENUM ASSEMBLY
-
178M0044310 SEALSEAL
-
1822-805598 FITTING, (.1875) BarbFITTING, (.1875) Barb
-
1922-687271 FITTING, (.250-18) 90 Degree - BrassFITTING, (.250-18) 90 Degree - Brass
-
2010-8M0022331 SCREW, RatchetSCREW, Ratchet
-
21805223T SENSORSENSOR
-
228M0061478 BRACKETBRACKET
-
2312-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
2410-847401 SCREW, (#10-24 x .380)SCREW, (#10-24 x .380)
-
25854445 SENSOR, MAPSENSOR, MAP
-
2637-8M0054483 DECAL SET, 8.2L EC BaseDECAL SET, 8.2L EC Base
-
2637-8M0054484 DECAL SET, 8.2L EC High OutputDECAL SET, 8.2L EC High Output
-
2637-8M0054485 DECAL SET, 8.2L EC Base (SeaCore)DECAL SET, 8.2L EC Base (SeaCore)
-
2637-8M0054486 DECAL SET, 8.2L EC High Output (SeaCore)DECAL SET, 8.2L EC High Output (SeaCore)
-
278M0070933 BRACKET, SilencerBRACKET, Silencer
-
2825-8M2001671 GROMMETGROMMET
-
2925-828249 GROMMETGROMMET
-
3010-88552590 SCREW, M6 X 90SCREW, M6 X 90
-
3198-8M0070740 COVER ASSEMBLYCOVER ASSEMBLY
-
3237-8M0056663 DECAL, SilencerDECAL, Silencer
