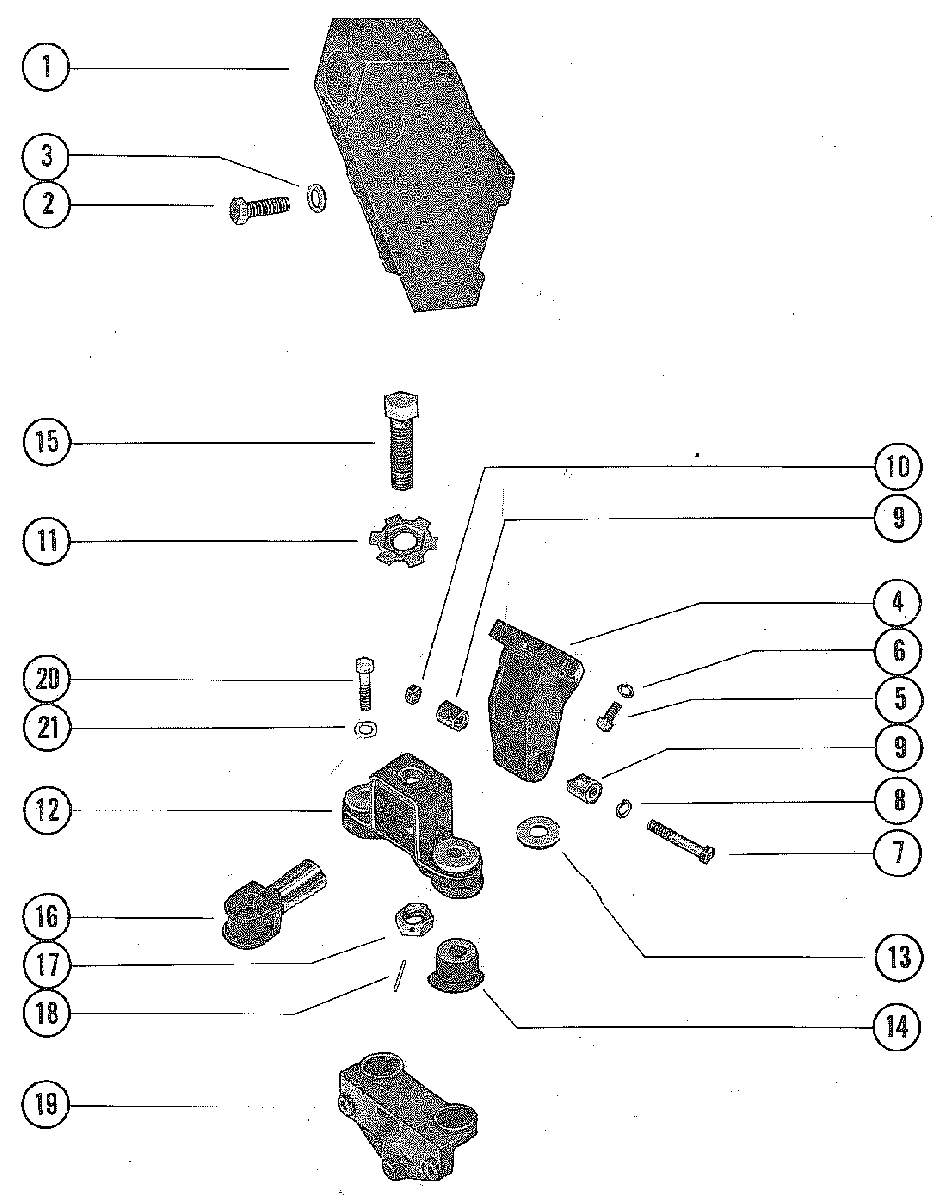

MOUNTING BRACKETS для Mercruiser - 325 MIE GM 427 V-8 1968-1974 2278747 THRU 3780449
-
№АртикулНазвание
-
147501 BRACKET, MOUNTING (REAR) USE WITH REFERENCE #19BRACKET, MOUNTING (REAR) USE WITH REFERENCE #19
-
162255 BRACKET, MOUMNTING (REAR) USE REFERENCE #19BRACKET, MOUMNTING (REAR) USE REFERENCE #19
-
210-37269 SCREW, MOUNTING BRACKET TO TRANSMISSION (2")SCREW, MOUNTING BRACKET TO TRANSMISSION (2")
-
313-32993 LOCKWASHER, MONTING BRACKET SCREWLOCKWASHER, MONTING BRACKET SCREW
-
158769 BRACKET, MOUNTING (REAR)
"V" DRIVE ONLYBRACKET, MOUNTING (REAR)
"V" DRIVE ONLY -
210-47462 SCREW, MOUNTING BRACKET TO TRANSMISSION (1 1/4")
"V" DRIVE ONLYSCREW, MOUNTING BRACKET TO TRANSMISSION (1 1/4")
"V" DRIVE ONLY -
313-32993 LOCKWASHER, MOUNTING BRACKET SCREW
"V" DRIVE ONLYLOCKWASHER, MOUNTING BRACKET SCREW
"V" DRIVE ONLY -
447499 BRACKET, MOUNTING (FRONT) USE WITH REFERENCE #19BRACKET, MOUNTING (FRONT) USE WITH REFERENCE #19
-
448709 BRACKET, MOUNTING (FRONT) USE WITHIOUT REFERENCE #19BRACKET, MOUNTING (FRONT) USE WITHIOUT REFERENCE #19
-
510-48424 SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (1 5/8")SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (1 5/8")
-
613-35048 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
710-47654 SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
-
813-32993 LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREWLOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
-
954-47528 CLAMP, ADJUSTING TRUNNION SCREWCLAMP, ADJUSTING TRUNNION SCREW
-
1011-82670814 NUT, CLAMP ADJUSTING TRUNNION SCREWNUT, CLAMP ADJUSTING TRUNNION SCREW
-
1114-48467 TAB WASHER, ADJUSTING TRUNNION SCREWTAB WASHER, ADJUSTING TRUNNION SCREW
-
1247601A2 BRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
SERIAL 00000000-02508318BRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
SERIAL 00000000-02508318 -
1312-48611 WASHER, MOUNTING BRACKET
SERIAL 00000000-02508318WASHER, MOUNTING BRACKET
SERIAL 00000000-02508318 -
1447656 MOUNT. MOUNTING BRACKET
SERIAL 00000000-02508318MOUNT. MOUNTING BRACKET
SERIAL 00000000-02508318 -
1510-47652 SCREW, ADJUSTING TRUNNION (3 5/8")
SERIAL 00000000-02508318SCREW, ADJUSTING TRUNNION (3 5/8")
SERIAL 00000000-02508318 -
1252139A4 BRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
SERIAL 02508319-09999999BRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
SERIAL 02508319-09999999 -
1312-48611 WASHER, MOUNTING BRACKET
SERIAL 02508319-09999999WASHER, MOUNTING BRACKET
SERIAL 02508319-09999999 -
1447656 MOUNT, MOUNTING BRACKET
SERIAL 02508319-09999999MOUNT, MOUNTING BRACKET
SERIAL 02508319-09999999 -
1510-52156 SCREW, ADJUSTING TRUNNION (4 1/2")
SERIAL 02508319-09999999SCREW, ADJUSTING TRUNNION (4 1/2")
SERIAL 02508319-09999999 -
1647518 TRUNNION, ADJUSTING - MOUNTIG BRACKETTRUNNION, ADJUSTING - MOUNTIG BRACKET
-
1711-47525 NUT, JAM - ADJUSTING TRUNNION SCREWNUT, JAM - ADJUSTING TRUNNION SCREW
-
1817-22116 PIN, ROLL - JAM NUTPIN, ROLL - JAM NUT
-
1947986 BRACKET, MOUNTING - ENGINE
SERIAL 02508319-03469127BRACKET, MOUNTING - ENGINE
SERIAL 02508319-03469127 -
2010-48254 SCREW, MOUNTING BRACKET ATTACHING (2 1/8")
SERIAL 02508319-03469127SCREW, MOUNTING BRACKET ATTACHING (2 1/8")
SERIAL 02508319-03469127 -
2113-31848 LOCKWASHER, MOUNTING BRACKET SCREW
SERIAL 02508319-03469127LOCKWASHER, MOUNTING BRACKET SCREW
SERIAL 02508319-03469127
