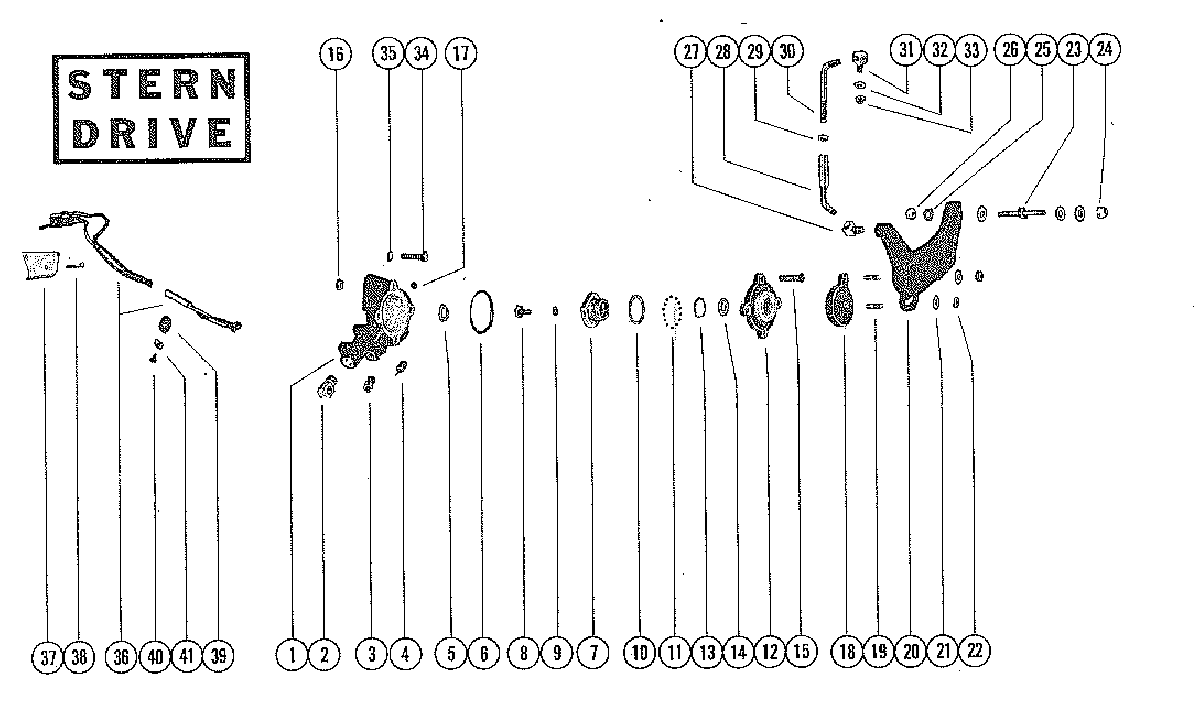

REVERSE LOCK VALVE ASSEMBLY AND SHIFT LEVER для Mercruiser - 325 MIE GM 427 V-8 1968-1974 2278747 THRU 3780449
-
№АртикулНазвание
-
176812T4 REVERSE LOCK VALVE ASSEMBLYREVERSE LOCK VALVE ASSEMBLY
-
222-45794 ELBOY , HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVEELBOY , HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
-
322-48167 CONNECTOR, ELBOWCONNECTOR, ELBOW
-
445709 FOLLOWER, CAMFOLLOWER, CAM
-
513-25906 WASHER, WAVE- REVERSE LOCK VALVEWASHER, WAVE- REVERSE LOCK VALVE
-
625-457101 O RING, REVERSE LOCK VALVEO RING, REVERSE LOCK VALVE
-
745526 CAM, REVERSE LOCK VALVECAM, REVERSE LOCK VALVE
-
810-46736 SCREW, CAM TO CAM LEVER (1/2")SCREW, CAM TO CAM LEVER (1/2")
-
913-26996 LOCKWASHER, CAM SCREWLOCKWASHER, CAM SCREW
-
1012-45713 WASHER, RETAINING- BALL TO VALVE COVERWASHER, RETAINING- BALL TO VALVE COVER
-
1130-45712 BALL, VALVE COVERBALL, VALVE COVER
-
1245528A2 COVER, REVERSE LOCK VALVECOVER, REVERSE LOCK VALVE
-
1325-45711 O RING, VALVE COVERO RING, VALVE COVER
-
1412-59570 WASHER, VALVE COVERWASHER, VALVE COVER
-
1510-45716 SCREW, COVER TO REVERSE LOCK VALVE (15/16")SCREW, COVER TO REVERSE LOCK VALVE (15/16")
-
1611-20110 NUT, COVER SCREWNUT, COVER SCREW
-
1722-390721 PLUG, PIPE - REVERSE LOCK VALVEPLUG, PIPE - REVERSE LOCK VALVE
-
1846732A1 LEVER ASSEMBLY, CAMLEVER ASSEMBLY, CAM
-
1916-45715 STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")
-
2047346T LEVER, SHIFT -CAM LEVERLEVER, SHIFT -CAM LEVER
-
2112-21273 WASHER, CAM LEVER STUDWASHER, CAM LEVER STUD
-
2211-20110 NUT, SHIFT CONTROL LEVER TO CAM LEVER STUDNUT, SHIFT CONTROL LEVER TO CAM LEVER STUD
-
2316-34069 STUD, SHIFT CABLE TO SHIFT LEVER (2 1/4")STUD, SHIFT CABLE TO SHIFT LEVER (2 1/4")
-
2411-8267089 NUT, SHIFT CABLE STUDNUT, SHIFT CABLE STUD
-
2512-39143 WASHER, SHIFT CABLE STUDWASHER, SHIFT CABLE STUD
-
2611-8267089 NUT, SHIFT CABLE STUD TO SHIFT LEVERNUT, SHIFT CABLE STUD TO SHIFT LEVER
-
2727947 SWIVEL, LINK ROD TO SHIFT LEVERSWIVEL, LINK ROD TO SHIFT LEVER
-
2825996A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
2911-25168 NUT, JAM - LINK RODNUT, JAM - LINK ROD
-
3038982 LINK ROD, SHIFT LEVERLINK ROD, SHIFT LEVER
-
3147459 SWIVEL, LINK ROD TO TRANSMISSION SHIFT LEVERSWIVEL, LINK ROD TO TRANSMISSION SHIFT LEVER
-
3212-30164 WASHER, LINK ROD SWIVELWASHER, LINK ROD SWIVEL
-
3311-20110 NUT, LINK ROD SWIVELNUT, LINK ROD SWIVEL
-
3410-25299 SCREW, REVCERSE LOCK VALVE TO SHIFT SUPPORT BRACKET (3/4")SCREW, REVCERSE LOCK VALVE TO SHIFT SUPPORT BRACKET (3/4")
-
3513-21804 LOCKWASHER, REVERSE LOCK VALVE SCREWLOCKWASHER, REVERSE LOCK VALVE SCREW
-
3649645A1 SWITCH ASSEMBLY, CUT-OUT-REVERSE LOCK VALVESWITCH ASSEMBLY, CUT-OUT-REVERSE LOCK VALVE
-
3745717 SHIELD, CUT-OUT SWITCHSHIELD, CUT-OUT SWITCH
-
3810-36003 SCREW, SHILED AND SWITCH TO REVERSE LOCK VALVE (3/4")SCREW, SHILED AND SWITCH TO REVERSE LOCK VALVE (3/4")
-
3954-54178 CLIP, CUT-OUT SWITCH LEAD TO TRANSOM PLATECLIP, CUT-OUT SWITCH LEAD TO TRANSOM PLATE
-
4010-21643 SCREW, CUT-OUYT SWITCH LEAD CLIP ATTACHING (1/2")SCREW, CUT-OUYT SWITCH LEAD CLIP ATTACHING (1/2")
-
418M0084613 D WASHER, CLIP ATTACHING SCREW 1D WASHER, CLIP ATTACHING SCREW 1
