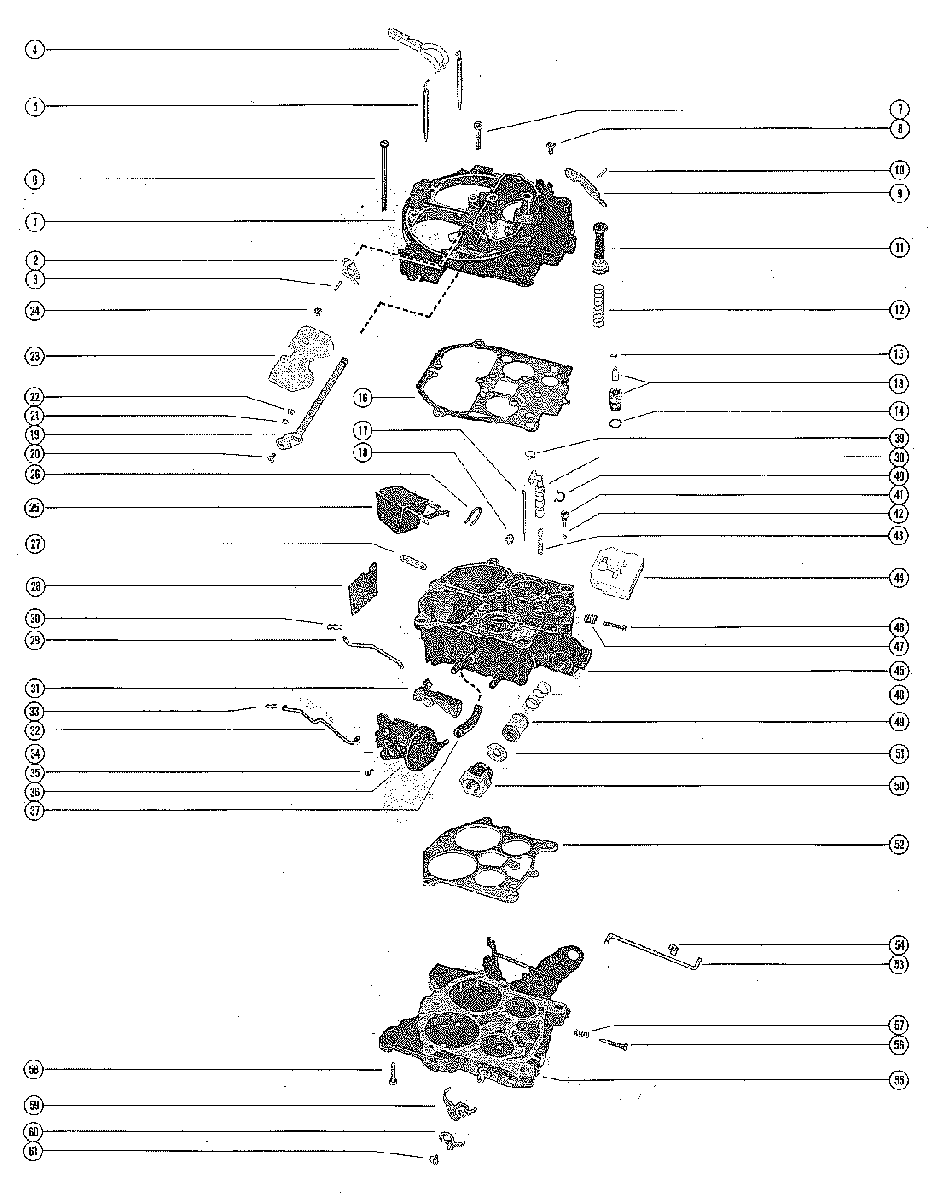

CARBURETOR ASSEMBLY, COMPLETE для Mercruiser - 390 GM 482 V-8 1969-1970 2781129 THRU 2825059
-
№АртикулНазвание
-
-1347-4179A1 CARBURETOR ASSEMBLY, COMPLETECARBURETOR ASSEMBLY, COMPLETE
-
11397-4324 AIR HORN ASSEMBLYAIR HORN ASSEMBLY
-
21397-5640 LEVER, AIR VALVE LOCKOUTLEVER, AIR VALVE LOCKOUT
-
390-8M0143356 ROLL PIN, LOCKOUT LEVERROLL PIN, LOCKOUT LEVER
-
41397-3313 HOLDER KIT, SECONDARY METERING RODHOLDER KIT, SECONDARY METERING ROD
-
51397-4325 METERING ROD, SECONDARYMETERING ROD, SECONDARY
-
610-48137 SCREW, AIR HORN TO FLOAT BOWL (3/8")SCREW, AIR HORN TO FLOAT BOWL (3/8")
-
710-34370 SCREW, AIR HORN TO FLOAT BOWL (1")SCREW, AIR HORN TO FLOAT BOWL (1")
-
810-48395 SCREW, AIR HORN TO FLOAT BOWL (3")SCREW, AIR HORN TO FLOAT BOWL (3")
-
91397-5638 LEVER, ACTUATING - PUMPLEVER, ACTUATING - PUMP
-
1090-8M0143356 ROLL PIN, HINGE - PUMP LEVERROLL PIN, HINGE - PUMP LEVER
-
1190-8M0143356 PUMP ASSEMBLYPUMP ASSEMBLY
-
1290-8M0143356 SPRING, PUMP RETURNSPRING, PUMP RETURN
-
1390-8M0143356 NEEDLE AND SEAT ASSEMBLYNEEDLE AND SEAT ASSEMBLY
-
1490-8M0143356 GASKET, NEEDLE AND SEATGASKET, NEEDLE AND SEAT
-
1590-8M0143356 PULL CLIP, FLOAT NEEDLEPULL CLIP, FLOAT NEEDLE
-
1690-8M0143356 GASKET, AIR HORNGASKET, AIR HORN
-
1790-8M0143356 METERING ROD, PRIMARYMETERING ROD, PRIMARY
-
1890-8M0143356 JET, PRIMARYJET, PRIMARY
-
191397-4326 CHOKE SHAFT AND LEVER ASSEMBLYCHOKE SHAFT AND LEVER ASSEMBLY
-
--52730 CHOKE LEVERCHOKE LEVER
-
2010-27881 SCREW, CHOKE LEVER ATTACHINGSCREW, CHOKE LEVER ATTACHING
-
2113-26994 LOCKWASHER, CHOKE LEVER SCREWLOCKWASHER, CHOKE LEVER SCREW
-
2211-21270 NUT, CHOKE LEVER SCREWNUT, CHOKE LEVER SCREW
-
231397-4327 VALVE, CHOKE - CHOKE SHAFTVALVE, CHOKE - CHOKE SHAFT
-
2410-48139 SCREW, CHOKE VALVE TO CHOKE SHAFTSCREW, CHOKE VALVE TO CHOKE SHAFT
-
251397-3327 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
2617-48140 PIN, HINGE - FLOATPIN, HINGE - FLOAT
-
271397-3323 LEVER, INTERMEDIATE CHOKELEVER, INTERMEDIATE CHOKE
-
281397-3322 BAFFLE, FLOAT BOWLBAFFLE, FLOAT BOWL
-
291397-3324 ROD, CHOKEROD, CHOKE
-
3090-8M0143356 CLIP, CHOKE RODCLIP, CHOKE ROD
-
311397-3319 CAM, FAST IDLECAM, FAST IDLE
-
321397-3318 ROD, VACUUM CONTROLROD, VACUUM CONTROL
-
3390-8M0143356 CLIP, VACUUM CONTROL RODCLIP, VACUUM CONTROL ROD
-
341397-3339 BRACKET ASSEMBLY, VACUUM CONTROLBRACKET ASSEMBLY, VACUUM CONTROL
-
3510-48138 SCREW, VACUUM CONTROL BRACKET TO FLOAT BOWLSCREW, VACUUM CONTROL BRACKET TO FLOAT BOWL
-
361397-3317 CONTROL ASSEMBLY, VACUUMCONTROL ASSEMBLY, VACUUM
-
371397-3320 HOSE, VACUUMHOSE, VACUUM
-
381397-3328 POWER PISTON ASSEMBLYPOWER PISTON ASSEMBLY
-
3924-48142 SPRING, METERING ROD - PRIMARYSPRING, METERING ROD - PRIMARY
-
401397-3329 RETAINER, POWER PISTONRETAINER, POWER PISTON
-
411397-3326 RETAINER, PUMP DISCHARGE BALLRETAINER, PUMP DISCHARGE BALL
-
4290-8M0143356 BALL, PUMP DISCHARGEBALL, PUMP DISCHARGE
-
4324-48141 SPRING, POWER PISTONSPRING, POWER PISTON
-
441397-3331 INSERT, FLOAT BOWLINSERT, FLOAT BOWL
-
451397-3325 FLOAT BOWL ASSEMBLYFLOAT BOWL ASSEMBLY
-
4610-48144 SCREW, IDLE STOPSCREW, IDLE STOP
-
4724-34373 SPRING, IDLE STOP SCREWSPRING, IDLE STOP SCREW
-
483302-9032 SPRING, FILTER NUTSPRING, FILTER NUT
-
4935-53336Q FILTER, FUEL INLETFILTER, FUEL INLET
-
501397-3330 NUT, FILTER - FUEL INLETNUT, FILTER - FUEL INLET
-
5190-8M0143356 GASKET, FILTER NUTGASKET, FILTER NUT
-
5290-8M0143356 GASKET, THROTTLE BODYGASKET, THROTTLE BODY
-
531397-3333 ROD, PUMPROD, PUMP
-
5490-8M0143356 CLIP, PUMP RODCLIP, PUMP ROD
-
551397-3334 THROTTLE BODY ASSEMBLYTHROTTLE BODY ASSEMBLY
-
5690-8M0143356 IDLE NEEDLE, THROTTLE BODYIDLE NEEDLE, THROTTLE BODY
-
5724-33050 SPRING, IDLE NEEDLESPRING, IDLE NEEDLE
-
5810-48145 SCREW, THROTTLE BODY TO FLOAT BOWLSCREW, THROTTLE BODY TO FLOAT BOWL
-
591397-3335 LEVER, CAMLEVER, CAM
-
601397-3336 LEVER, FAST IDLELEVER, FAST IDLE
-
6110-48146 SCREW, LEVER AND CAM TO THROTTLE BODYSCREW, LEVER AND CAM TO THROTTLE BODY
-
--1397-3315 SPRING AND CAM KIT, AIR VALVESPRING AND CAM KIT, AIR VALVE
-
--823426A1 OVERHAUL KITOVERHAUL KIT
-
--823426A1 GASKET SETGASKET SET
-
--823426A1 OFF ENGINE KITOFF ENGINE KIT
