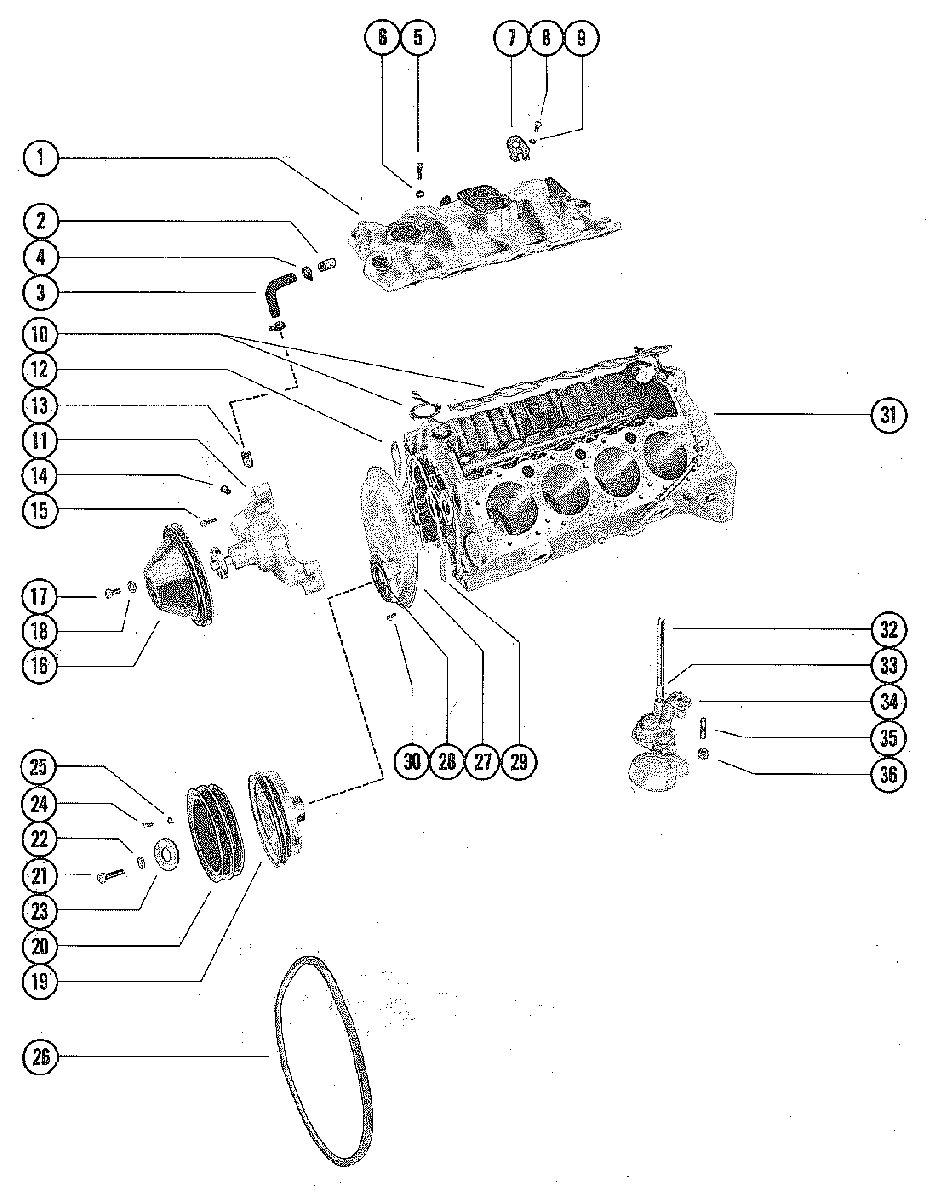

INTAKE MANIFOLD AND OIL PUMP для Mercruiser - 390 GM 482 V-8 1969-1970 2781129 THRU 2825059
-
№АртикулНазвание
-
158057 INTAKE MANIFOLDINTAKE MANIFOLD
-
222-58095 CONNECTOR, INTAKE MANIFOLD - BY-PASS HOSECONNECTOR, INTAKE MANIFOLD - BY-PASS HOSE
-
332-99520 HOSE, BY-PASS - INTAKE MANIFOLD TO WATER PUMPHOSE, BY-PASS - INTAKE MANIFOLD TO WATER PUMP
-
454-815504220 CLAMP, BY-PASS HOSE ATTACHINGCLAMP, BY-PASS HOSE ATTACHING
-
510-37510 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/4")BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/4")
-
612-49112 WASHER, INTAKE MANIFOLD BOLTWASHER, INTAKE MANIFOLD BOLT
-
754-64628 EYE, LIFTINGEYE, LIFTING
-
810-34354 SCREW, LIFTING EYE ATTACHING (1 1/2 ")SCREW, LIFTING EYE ATTACHING (1 1/2 ")
-
913-35048 LOCKWASHER, LIFTING EYE SCREWLOCKWASHER, LIFTING EYE SCREW
-
1027-69910 GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
1146-8M0113735 WATER PUMP ASSEMBLYWATER PUMP ASSEMBLY
-
1227-49110 GASKET, WATER PUMP MOUNTINGGASKET, WATER PUMP MOUNTING
-
1322-806242 CONNECTOR, WATER PUMP - BY-PASS HOSECONNECTOR, WATER PUMP - BY-PASS HOSE
-
1422-48336 PLUG, PIPE - WATER PUMPPLUG, PIPE - WATER PUMP
-
1510-32132 SCREW, WATER PUMP TO CYLINDER BLOCK (1 3/4")SCREW, WATER PUMP TO CYLINDER BLOCK (1 3/4")
-
1652349 PULLEY, WATER PUMPPULLEY, WATER PUMP
-
1710-47277 SCREW, PULLEY TO WATER PUMP (3/4")SCREW, PULLEY TO WATER PUMP (3/4")
-
1813-39107 LOCKWASHER, WATER PUMP PULLEY SCREWLOCKWASHER, WATER PUMP PULLEY SCREW
-
1958038 BALANCER, HARMONIC - CRANKSHAFTBALANCER, HARMONIC - CRANKSHAFT
-
2052181 PULLEY, HARMONIC BALANCERPULLEY, HARMONIC BALANCER
-
2110-14758 BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFTBOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT
-
2213-14759 LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLTLOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
-
2312-49103 WASHER, PULLEY AND HARMONIC BALANCER BOLTWASHER, PULLEY AND HARMONIC BALANCER BOLT
-
2410-34353 BOLT, CRANKSHAFT PULLEY TO HARMONIC BALANCER (1")BOLT, CRANKSHAFT PULLEY TO HARMONIC BALANCER (1")
-
2513-35048 LOCKWASHER, CRANKSHAFT PULLEY BOLTLOCKWASHER, CRANKSHAFT PULLEY BOLT
-
2657-48122Q BELT, ALTERNATOR DRIVE (48")BELT, ALTERNATOR DRIVE (48")
-
2766215 COVER ASSEMBLY, CRANKCASE FRONT END (STANDARD ROTATION)COVER ASSEMBLY, CRANKCASE FRONT END (STANDARD ROTATION)
-
2759973A1 COVER ASSEMBLY, CRANKCASE FRONT END (OPPOSITE ROTATION)COVER ASSEMBLY, CRANKCASE FRONT END (OPPOSITE ROTATION)
-
2826-8219471 OIL SEAL, CRANKCASE FRONT END COVEROIL SEAL, CRANKCASE FRONT END COVER
-
2927-54529 GASKET, CRANKCASE FRONT END COVERGASKET, CRANKCASE FRONT END COVER
-
3010-8M0040582 SCREW, CRANKCASE FRONT END COVER TO CYLINDER BLOCK (7/16")SCREW, CRANKCASE FRONT END COVER TO CYLINDER BLOCK (7/16")
-
31842-4268 CYLINDER BLOCK ASSEMBLY (SEE G12 FOR BREAKDOWN)CYLINDER BLOCK ASSEMBLY (SEE G12 FOR BREAKDOWN)
-
32848511 SHAFT, OIL PUMP TO DISTRIBUTORSHAFT, OIL PUMP TO DISTRIBUTOR
-
3323-52193 RETAINER, OIL PUMP SHAFTRETAINER, OIL PUMP SHAFT
-
34808693A1 OIL PUMP AND SCREEN ASSEMBLYOIL PUMP AND SCREEN ASSEMBLY
-
3516-845599 STUD, OIL PUMP TO CYLINDER BLOCKSTUD, OIL PUMP TO CYLINDER BLOCK
-
3611-37500 NUT, OIL PUMP STUDNUT, OIL PUMP STUD
-
--34543 VALVE, BY-PASSVALVE, BY-PASS
