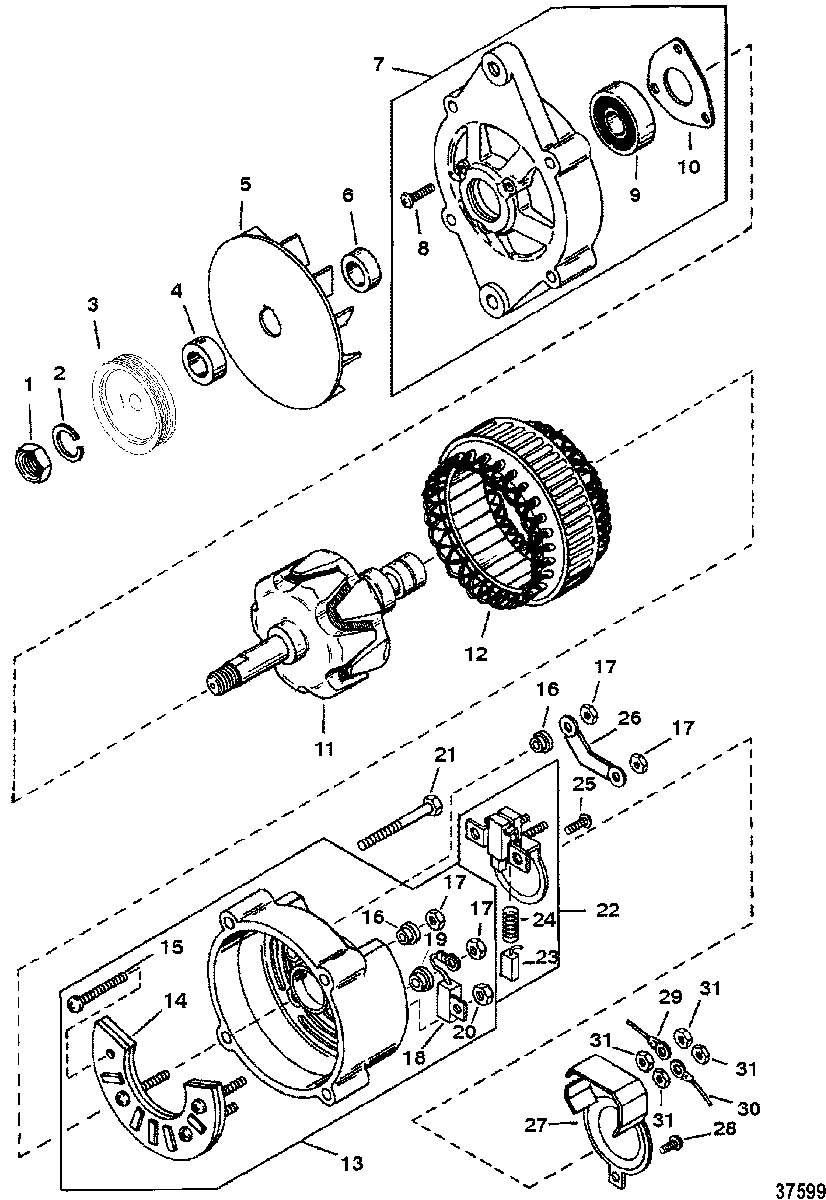

ALTERNATOR(MANDO #AC155603) для Mercruiser - 7.4L MIE (LH) GEN. V GM 454 V-8 1992-1996 0D715494 THRU 0F820141
-
№АртикулНазвание
-
-817119A4 ALTERNATORALTERNATOR
-
111-809136 NUTNUT
-
213-42769 LOCKWASHERLOCKWASHER
-
3809134 PULLEYPULLEY
-
423-811865 SPACERSPACER
-
5811866 FANFAN
-
623-811867 SPACERSPACER
-
7811868 BRACKET ASSEMBLY, FrontBRACKET ASSEMBLY, Front
-
810-811869 SCREWSCREW
-
930-811870 BEARING, BallBEARING, Ball
-
10811871 RETAINERRETAINER
-
11811872 ROTOR ASSEMBLYROTOR ASSEMBLY
-
12811873T STATOR ASSEMBLYSTATOR ASSEMBLY
-
13811874T BRACKET ASSEMBLY, RearBRACKET ASSEMBLY, Rear
-
14811875T RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
1510-811876 SCREWSCREW
-
16811877 HOLDHOLD
-
1711-811878 NUTNUT
-
18811879 CONDENSER ASSEMBLYCONDENSER ASSEMBLY
-
19811880 HOLDHOLD
-
2011-811881 NUTNUT
-
2110-42773 THRU BOLTTHRU BOLT
-
22811883T REGULATOR ASSEMBLYREGULATOR ASSEMBLY
-
23811884 BRUSHBRUSH
-
2424-811885 SPRINGSPRING
-
2510-811886 SET SCREWSET SCREW
-
26811887 TERMINALTERMINAL
-
27811888 COVERCOVER
-
2810-811889 SET SCREWSET SCREW
-
2984-811890 WIRE, RedWIRE, Red
-
3084-811891 WIRE, PurpleWIRE, Purple
-
3111-811878 NUTNUT
