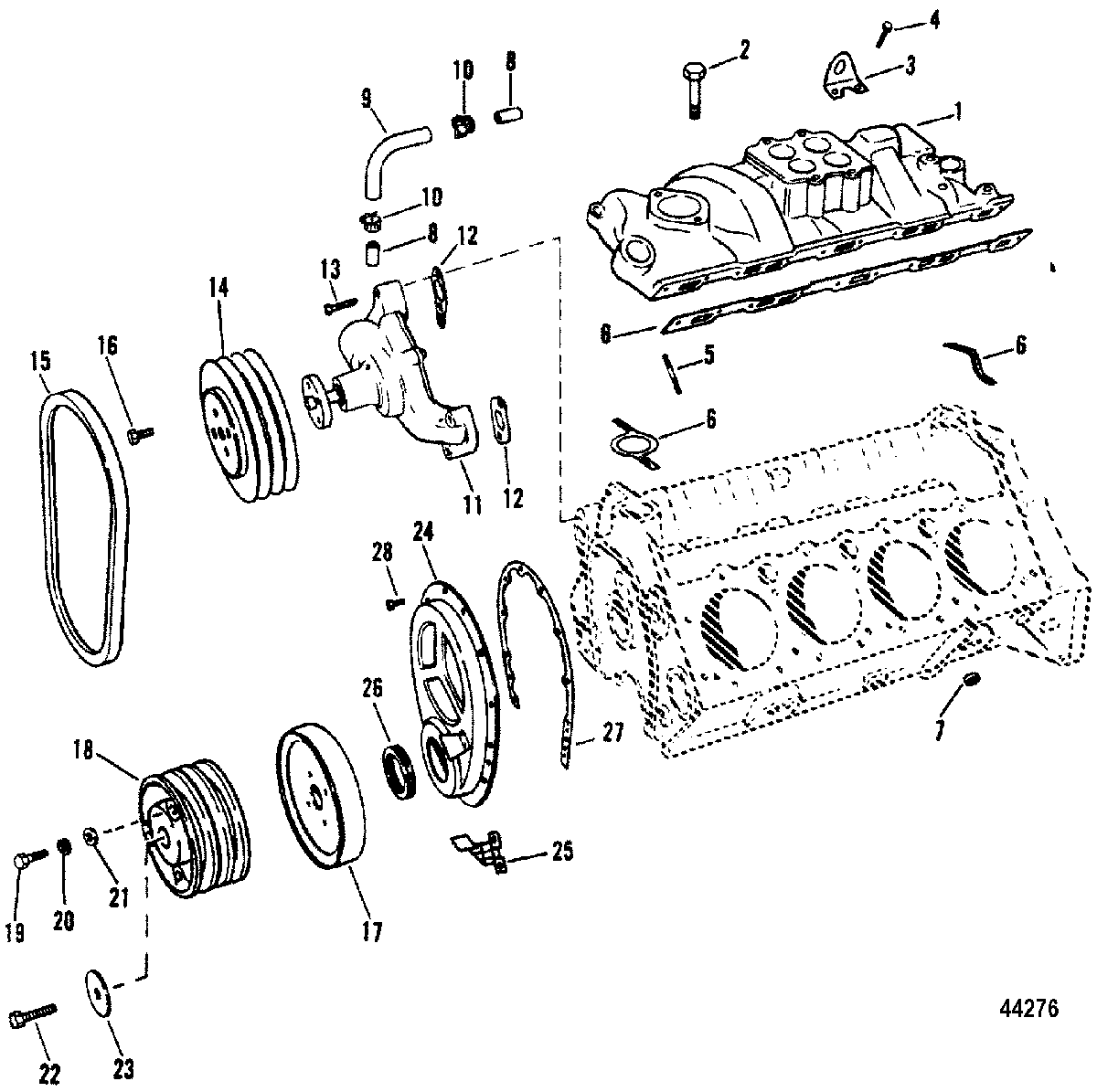

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 7.4L MIE (LH) GEN. V GM 454 V-8 1992-1996 0D715494 THRU 0F820141
-
№АртикулНазвание
-
1811575T MANIFOLDMANIFOLD
-
210-37510 BOLT, (1.5 In.)BOLT, (1.5 In.)
-
210-811577 BOLTBOLT
-
354-64628 LIFTING EYELIFTING EYE
-
410-34354 SCREW, (.375-16 x 1.50)SCREW, (.375-16 x 1.50)
-
5N.S.S. Not Sold Separate, STUD (GM # 10092939)Not Sold Separate, STUD (GM # 10092939)
-
627-8M0050225 GASKET SETGASKET SET
-
734543 VALVE, Oil BypassVALVE, Oil Bypass
-
822-806242 CONNECTORCONNECTOR
-
932-805987 HOSEHOSE
-
1054-815504412 CLAMP, Worm GearCLAMP, Worm Gear
-
1146-8M0113735 PUMP ASSEMBLYPUMP ASSEMBLY
-
1227-49110 GASKET, Circulating Water Pump MountGASKET, Circulating Water Pump Mount
-
1310-805611 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
1419692T01 PULLEY, (7 In. Diameter)PULLEY, (7 In. Diameter)
-
1557-48122Q BELT, (48 Inches)BELT, (48 Inches)
-
1610-47277 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
178M0082186 HARMONIC BALANCERHARMONIC BALANCER
-
1890081T PULLEYPULLEY
-
1910-75334 SCREW, (.375-24 x 3.00)SCREW, (.375-24 x 3.00)
-
2112-34714 WASHERWASHER
-
2210-845627 SCREW, (.500-20 x 2.500)SCREW, (.500-20 x 2.500)
-
2312-49103 WASHERWASHER
-
24811570 COVER ASSEMBLY (W/POINTER)COVER ASSEMBLY (W/POINTER)
-
2626-8219471 SEALSEAL
-
2727-811572 GASKETGASKET
-
2810-8M0040582 SCREWSCREW
-
-27-811547A92 GASKET SET, Engine, OverhaulGASKET SET, Engine, Overhaul
