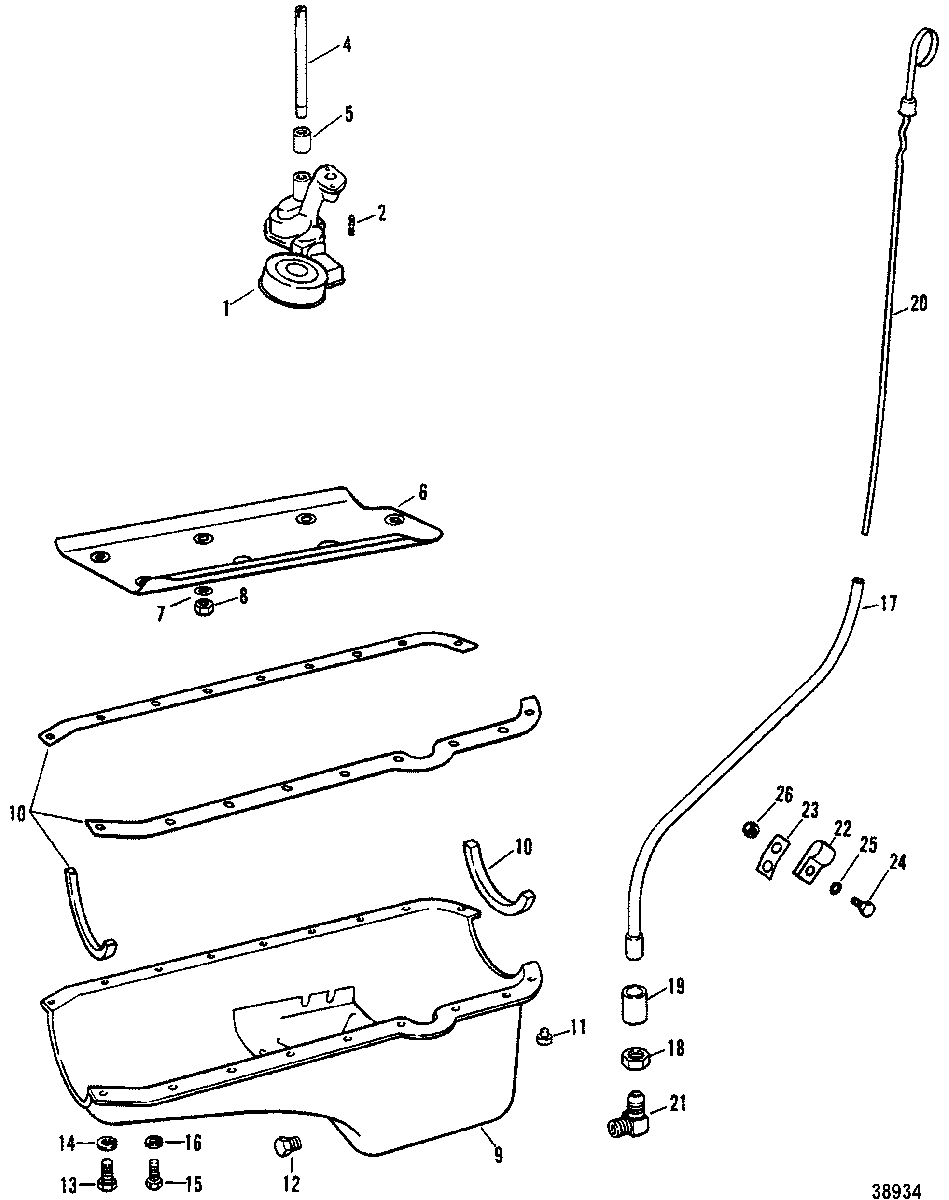

OIL PAN AND OIL PUMP для Mercruiser - 7.4l MIE W/B/W GM 454 V-8 1988-1992 0B788366 THRU 0D715493
-
№АртикулНазвание
-
1808693A1 PUMP, Oil
(With Pick-Up Tube)PUMP, Oil
(With Pick-Up Tube) -
1808693A1 PUMP ASSEMBLY, Oil
(Without Pick-Up Tube)PUMP ASSEMBLY, Oil
(Without Pick-Up Tube) -
NA809772T TUBE, Pick Up
(Use with 808693A1)TUBE, Pick Up
(Use with 808693A1) -
216-845599 STUD, OIL PUMP TO CYLINDER BLOCKSTUD, OIL PUMP TO CYLINDER BLOCK
-
4848511 SHAFT, OIL PUMP TO DISTRIBUTORSHAFT, OIL PUMP TO DISTRIBUTOR
-
523-52193 SLEEVE, OIL PUMP SHAFTSLEEVE, OIL PUMP SHAFT
-
649198 BAFFLE, OIL PAN (CYLINDER BLOCK)BAFFLE, OIL PAN (CYLINDER BLOCK)
-
712-49112 WASHER, OIL PAN BAFFLE/OIL PUMP STUDWASHER, OIL PAN BAFFLE/OIL PUMP STUD
-
811-37500 NUT, (3/8-16), OIL PAN BAFFLE/OIL PUMP STUDNUT, (3/8-16), OIL PAN BAFFLE/OIL PUMP STUD
-
947552A5 PAN ASSEMBLY, OilPAN ASSEMBLY, Oil
-
1027-52550 GASKET SET, OIL PANGASKET SET, OIL PAN
-
1119-47815 PLUG, RUBBER - OIL PANPLUG, RUBBER - OIL PAN
-
1222-32803 PLUG, PIPE - OIL PAN DRAINPLUG, PIPE - OIL PAN DRAIN
-
1310-55714 SCREW, (7/8 In.), OIL PAN (5/16-18 X 7/8")SCREW, (7/8 In.), OIL PAN (5/16-18 X 7/8")
-
1413-39107 LOCKWASHER, (.312-24), OIL PAN SCREWLOCKWASHER, (.312-24), OIL PAN SCREW
-
1510-55715 SCREW, (.250-20 x .880), OIL PANSCREW, (.250-20 x .880), OIL PAN
-
1613-26992 LOCKWASHER, (.250) Stainless Steel, OIL PAN SCREWLOCKWASHER, (.250) Stainless Steel, OIL PAN SCREW
-
1786890A2 TUBE, OIL LEVEL GAUGETUBE, OIL LEVEL GAUGE
-
1811-47626 NUT, OIL LEVEL GAUGE TUBENUT, OIL LEVEL GAUGE TUBE
-
1922-78039 COUPLING, OIL LEVEL GAUGE TUBECOUPLING, OIL LEVEL GAUGE TUBE
-
2086194220 GAUGE, OIL LEVEL (DIPSTICK)GAUGE, OIL LEVEL (DIPSTICK)
-
2049661T GAUGE, OIL LEVEL (DIPSTICK) (HORIZONTAL MTG.)GAUGE, OIL LEVEL (DIPSTICK) (HORIZONTAL MTG.)
-
2122-47625 ELBOW, OIL LEVEL GAUGE TUBE TO OIL PANELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN
-
2254-92338 CLIP, OIL LEVEL TUBECLIP, OIL LEVEL TUBE
-
2348134 BRACKET, OIL LEVEL TUBE CLIPBRACKET, OIL LEVEL TUBE CLIP
-
2410-54630 SCREW, (.312-24 x .625), CLIP TO BRACKETSCREW, (.312-24 x .625), CLIP TO BRACKET
-
2513-39107 LOCKWASHER, (.312-24), CLIP SCREWLOCKWASHER, (.312-24), CLIP SCREW
-
2611-22053 NUT, (.312-24), CLIP SCREWNUT, (.312-24), CLIP SCREW
