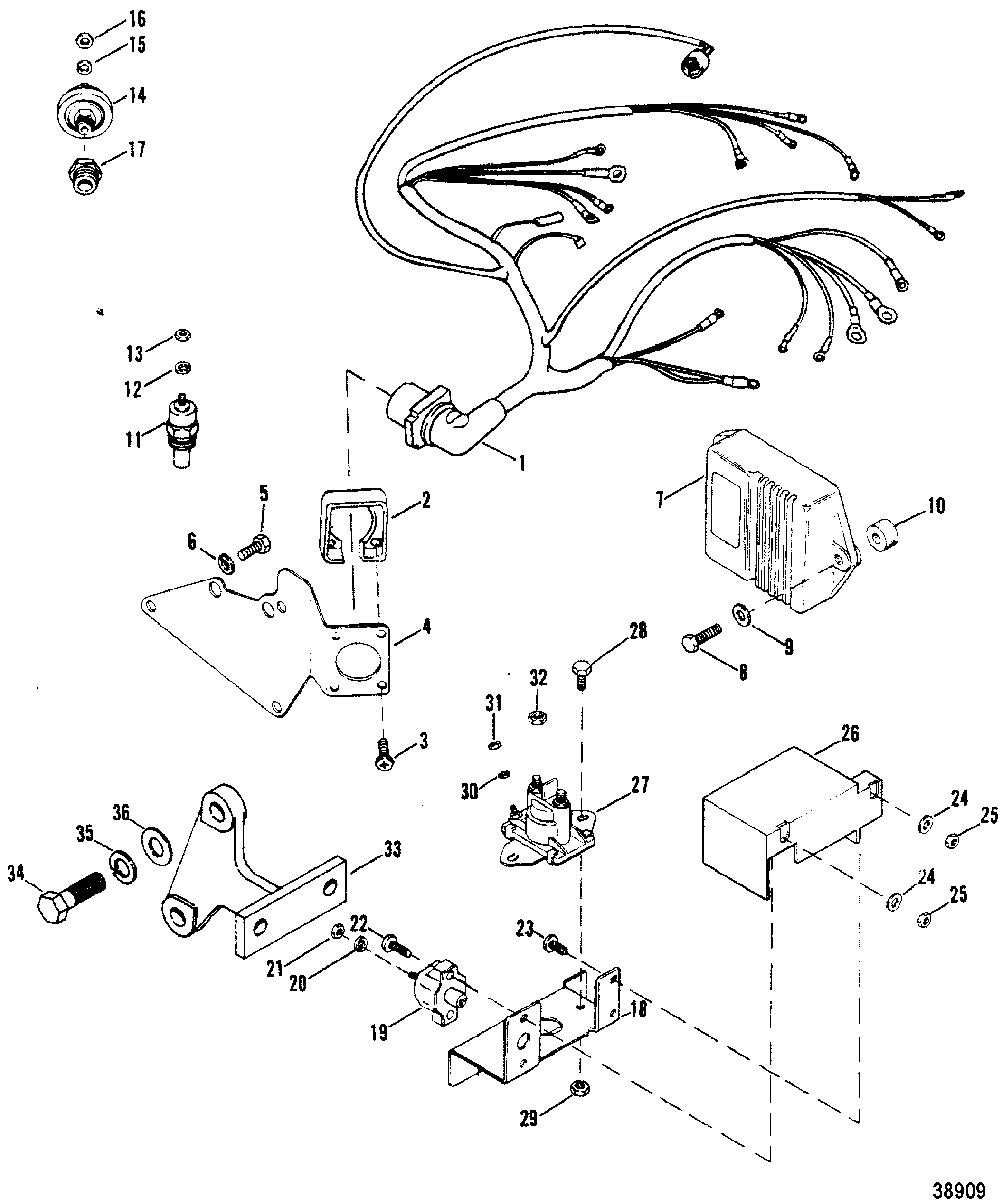

WIRING HARNESS, ELECTRICAL AND IGNITION для Mercruiser - 7.4l MIE W/B/W GM 454 V-8 1988-1992 0B788366 THRU 0D715493
-
№АртикулНазвание
-
184-94111A13 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
226079A2 PLATE, WIRING HARNESS (METAL)PLATE, WIRING HARNESS (METAL)
-
310-34696 SCREW, (#8-32 x .750), WIRING HARNESS PLATE (METAL)SCREW, (#8-32 x .750), WIRING HARNESS PLATE (METAL)
-
226079A2 PLATE KIT, Wire Harness Mount (PLASTIC)PLATE KIT, Wire Harness Mount (PLASTIC)
-
310-15001 SCREW, (#8-16 x .875), PLATE (PLASTIC)SCREW, (#8-16 x .875), PLATE (PLASTIC)
-
498493A2 BRACKET, MOUNTINGBRACKET, MOUNTING
-
510-28635 SCREW, (.250-20 x .620) Stainless Steel, MOUNTING BRACKETSCREW, (.250-20 x .620) Stainless Steel, MOUNTING BRACKET
-
613-26992 LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREWLOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW
-
715248A1 MODULE KIT, Ignition (W/HARNESS 84-15275A1)MODULE KIT, Ignition (W/HARNESS 84-15275A1)
-
810-76630 SCREW, (.250-20 x 1.00), IGNITION AMPLIFIERSCREW, (.250-20 x 1.00), IGNITION AMPLIFIER
-
913-26992 LOCKWASHER, (.250) Stainless Steel, IGNITION AMPLIFIER SCREWLOCKWASHER, (.250) Stainless Steel, IGNITION AMPLIFIER SCREW
-
1023-92152T SPACER, (.27 x .75 x .38), IGNITION AMPLIFIER SCREWSPACER, (.27 x .75 x .38), IGNITION AMPLIFIER SCREW
-
11806490T SENDER ASSEMBLY, Water TemperatureSENDER ASSEMBLY, Water Temperature
-
1149734 SENDER ASSEMBLY, Water Temperature (DUAL)SENDER ASSEMBLY, Water Temperature (DUAL)
-
1213-26996 LOCKWASHER, (#10) Stainless Steel, WATER TEMPERATURE SENDER TERMINALLOCKWASHER, (#10) Stainless Steel, WATER TEMPERATURE SENDER TERMINAL
-
1311-68219 NUT, (#10-32) Stainless Steel, WATER TEMPERATURE SENDER TERMINALNUT, (#10-32) Stainless Steel, WATER TEMPERATURE SENDER TERMINAL
-
148M0068784 SENDERSENDER
-
1437293T SENDER ASSEMBLY (DUAL)SENDER ASSEMBLY (DUAL)
-
1513-26996 LOCKWASHER, (#10) Stainless Steel, OIL PRESSURE SENDER TERMINALLOCKWASHER, (#10) Stainless Steel, OIL PRESSURE SENDER TERMINAL
-
1611-68219 NUT, (#10-32) Stainless Steel, OIL PRESSURE SENDER TERMINALNUT, (#10-32) Stainless Steel, OIL PRESSURE SENDER TERMINAL
-
1722-64013 FITTING, (.375 Male To .125 Female), OIL PRESSURE SENDERFITTING, (.375 Male To .125 Female), OIL PRESSURE SENDER
-
1897163 BRACKET, MOUNTINGBRACKET, MOUNTING
-
1988-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
1988-93582 BREAKER, Circuit - 60 AmpereBREAKER, Circuit - 60 Ampere
-
2013-26996 LOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINALLOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINAL
-
2111-68219 NUT, (#10-32) Stainless Steel, CIRCUIT BREAKER TERMINALNUT, (#10-32) Stainless Steel, CIRCUIT BREAKER TERMINAL
-
2210-45862 SCREW, (#10-32 x .875), CIRCUIT BREAKERSCREW, (#10-32 x .875), CIRCUIT BREAKER
-
2310-71405 SCREW, (#10-32 x .440), INSULATORSCREW, (#10-32 x .440), INSULATOR
-
2412-56681 WASHER, (.203 x .500 x .032), CIRCUIT BREAKER SCREWWASHER, (.203 x .500 x .032), CIRCUIT BREAKER SCREW
-
2511-46438 NUT, (#10-32), INSULATOR SCREWNUT, (#10-32), INSULATOR SCREW
-
2685-96819T INSULATOR, CIRCUIT BREAKERINSULATOR, CIRCUIT BREAKER
-
2789-96054T SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
2810-96138 SCREW, (1/4-28 x 5/8), STARTER SOLENOID (5/8")SCREW, (1/4-28 x 5/8), STARTER SOLENOID (5/8")
-
2911-8267089 NUT, (.250-28), STARTER SOLENOID SCREWNUT, (.250-28), STARTER SOLENOID SCREW
-
3013-26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINALLOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINAL
-
3111-26419 NUT, (#8-32) Brass, STARTER SOLENOID TERMINALNUT, (#8-32) Brass, STARTER SOLENOID TERMINAL
-
3211-94330 NUT, (.250-20) Brass, STARTER SOLENOID TERMINALNUT, (.250-20) Brass, STARTER SOLENOID TERMINAL
-
3396940T BRACKET, ADAPTERBRACKET, ADAPTER
-
3410-37612 SCREW, (.375-16 x 1.250), ADAPTER BRACKET TO ENGINESCREW, (.375-16 x 1.250), ADAPTER BRACKET TO ENGINE
-
3513-35048 LOCKWASHER, (.375), ADAPTER BRACKET SCREWLOCKWASHER, (.375), ADAPTER BRACKET SCREW
-
3612-20553 WASHER, (.406 x .734 x .063), ADAPTER BRACKET SCREWWASHER, (.406 x .734 x .063), ADAPTER BRACKET SCREW
-
3410-47462 SCREW, (.437-14 x 1.250), ADAPTER BRACKET TO ENGINESCREW, (.437-14 x 1.250), ADAPTER BRACKET TO ENGINE
-
3513-32993 LOCKWASHER, (.437), ADAPTER BRACKET SCREWLOCKWASHER, (.437), ADAPTER BRACKET SCREW
-
3612-22248 WASHER, (.453 x .875 x .060), ADAPTER BRACKET SCREWWASHER, (.453 x .875 x .060), ADAPTER BRACKET SCREW
