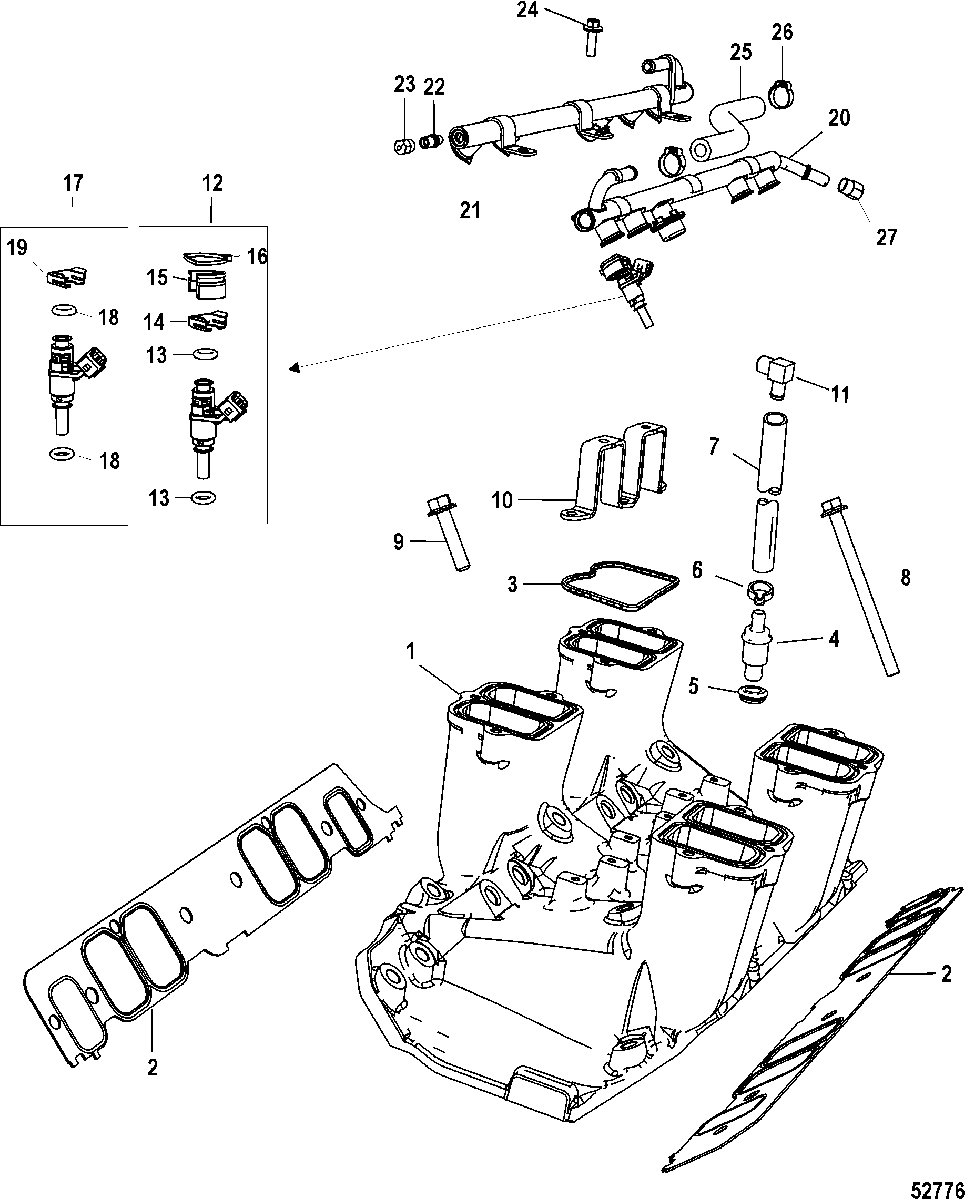

Intake Manifold для Mercruiser - 8.2L INBOARD (H.O.) EC 1A350802 THRU 2A041664
-
№АртикулНазвание
-
18M0045256 MANIFOLD ASSEMBLY, IntakeMANIFOLD ASSEMBLY, Intake
-
227-805403A1 GASKET SETGASKET SET
-
38M0044310 SEAL, Intake ManifoldSEAL, Intake Manifold
-
48M0099429 VALVE ASSEMBLY, Crankcase VentVALVE ASSEMBLY, Crankcase Vent
-
525-811553 GROMMETGROMMET
-
654-848764 CLAMP, (21 mm)CLAMP, (21 mm)
-
732-8M0042521 HOSE, PCV Valve to PlenumHOSE, PCV Valve to Plenum
-
810-8M2017579 SCREW, (.375-16 x 5.25), Intake Manifold to HeadSCREW, (.375-16 x 5.25), Intake Manifold to Head
-
910-8M0046395 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
108M0043145 BRACKET, Wire HarnessBRACKET, Wire Harness
-
1122-687271 FITTING, (.250-18) 90 Degree - BrassFITTING, (.250-18) 90 Degree - Brass
-
128M0081415 INJECTOR KIT, Fuel, Design-I
SN# 2A030175 & BelowINJECTOR KIT, Fuel, Design-I
SN# 2A030175 & Below -
13879150A09 SEAL KIT
(Contains 4 Upper Seals and 4 Lower) SN# 2A030175 & BelowSEAL KIT
(Contains 4 Upper Seals and 4 Lower) SN# 2A030175 & Below -
1454-8M0045267 RETAINER KIT, Design-I
(Set of 4) SN# 2A030175 & BelowRETAINER KIT, Design-I
(Set of 4) SN# 2A030175 & Below -
1554-8M0050100 CLIP, Fuel Injector, Secondary
Design-I SN# 2A030175 & BelowCLIP, Fuel Injector, Secondary
Design-I SN# 2A030175 & Below -
1654-8M0064024 CABLE TIE, Design-I
SN# 2A030175 & BelowCABLE TIE, Design-I
SN# 2A030175 & Below -
178M0081412 INJECTOR KIT, Fuel, Design-II
SN# 2A030176 & UpINJECTOR KIT, Fuel, Design-II
SN# 2A030176 & Up -
18879150A09 SEAL KIT
(Contains 8 Seals) SN# 2A030176 & UpSEAL KIT
(Contains 8 Seals) SN# 2A030176 & Up -
198M2001570 CLIP, Design-II
SN# 2A030176 & UpCLIP, Design-II
SN# 2A030176 & Up -
208M0081416 FUEL RAIL, Port
Design-I SN# 2A030175 & BelowFUEL RAIL, Port
Design-I SN# 2A030175 & Below -
208M0081453 FUEL RAIL, Port,Includes Injector Clips
Design-II SN# 2A030176 & UpFUEL RAIL, Port,Includes Injector Clips
Design-II SN# 2A030176 & Up -
218M0081417 FUEL RAIL, Starboard
Design-I SN# 2A030175 & BelowFUEL RAIL, Starboard
Design-I SN# 2A030175 & Below -
218M0081452 FUEL RAIL, Starboard,Includes Injector Clips
Design-II SN# 2A030176 & UpFUEL RAIL, Starboard,Includes Injector Clips
Design-II SN# 2A030176 & Up -
2221-8M0044726 VALVE ASSEMBLYVALVE ASSEMBLY
-
2319-8M0046566 CAP, Shrader Valve - BrassCAP, Shrader Valve - Brass
-
2410-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Intake ManifoldSCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Intake Manifold
-
2532-8M0071603 HOSE, BalanceHOSE, Balance
-
2654-8M0046568 CLAMP, (20.5 mm)CLAMP, (20.5 mm)
-
2719-8M0046566 CAP, Service PointCAP, Service Point
