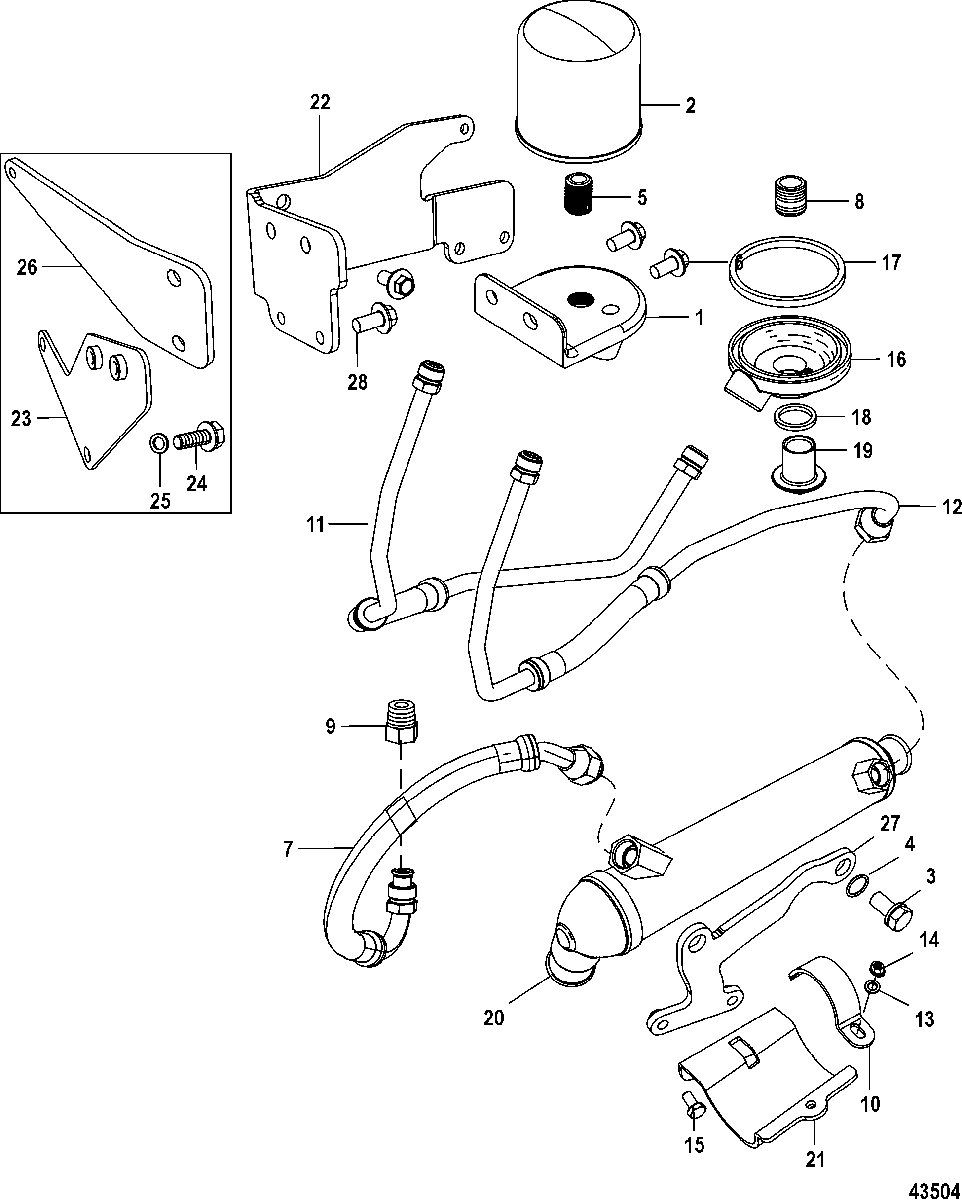

Remote Oil System для Mercruiser - 8.2L INBOARD (H.O.) EC 1A350802 THRU 2A041664
-
№АртикулНазвание
-
1863732T1 BRACKET, Remote Oil FilterBRACKET, Remote Oil Filter
-
235-866340Q03 FILTER, Oil - Quicksilver BrandFILTER, Oil - Quicksilver Brand
-
235-866340K01 FILTER, Oil - Mercury BrandFILTER, Oil - Mercury Brand
-
310-8M0139408 SCREW, (.500-13 x 1.00), Oil Cooler to BlockSCREW, (.500-13 x 1.00), Oil Cooler to Block
-
412-54012 WASHER, (.530 x .870 x .105) Stainless SteelWASHER, (.530 x .870 x .105) Stainless Steel
-
522-863485 FITTINGFITTING
-
610-4010820 SCREW, (M10 x 20) Hex Flange - Stainless SteelSCREW, (M10 x 20) Hex Flange - Stainless Steel
-
732-8M2017402 HOSE, Oil, Cooler to AdaptorHOSE, Oil, Cooler to Adaptor
-
822-805632 CONNECTORCONNECTOR
-
922-93190 FITTING, (.375 NPTF x .50 Inverted Flare)FITTING, (.375 NPTF x .50 Inverted Flare)
-
10807445T CLAMP, Cooler BracketCLAMP, Cooler Bracket
-
1132-8M2017405 LINE, Oil, Filter Base to BlockLINE, Oil, Filter Base to Block
-
1132-8M2017575 LINE, Oil, Filter Base to Block
V-DriveLINE, Oil, Filter Base to Block
V-Drive -
1232-8M2017485 LINE, Oil, Filter to CoolerLINE, Oil, Filter to Cooler
-
1232-8M2017574 LINE, Oil, Filter to Cooler
V-DriveLINE, Oil, Filter to Cooler
V-Drive -
1312-35044 WASHER, (.281 x .625 x .065) Stainless SteelWASHER, (.281 x .625 x .065) Stainless Steel
-
1411-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1510-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
16862870T ADAPTOR, Oil FilterADAPTOR, Oil Filter
-
1726-862957 SEAL, Oil Filter AdaptorSEAL, Oil Filter Adaptor
-
1826-42077 SEAL, Swivel TubeSEAL, Swivel Tube
-
1922-862958 FITTING, Oil Filter AdaptorFITTING, Oil Filter Adaptor
-
208M0045696 COOLER, OilCOOLER, Oil
-
21863905T BRACKET, Oil CoolerBRACKET, Oil Cooler
-
228M0045300 BRACKET, Remote OilBRACKET, Remote Oil
-
238M2017667 BRACKET, Remote Oil
V-DriveBRACKET, Remote Oil
V-Drive -
2410-47461 SCREW, (.437-14 x 1.00)
V-DriveSCREW, (.437-14 x 1.00)
V-Drive -
2512-22248 WASHER, (.453 x .875 x .060)
V-DriveWASHER, (.453 x .875 x .060)
V-Drive -
268M2018019 BRACE, Front Lifting Eye
V-DriveBRACE, Front Lifting Eye
V-Drive -
278M2018755 BRACKET, Oil Cooler, IntermediateBRACKET, Oil Cooler, Intermediate
-
2810-4010612 SCREW, (M6 x 12) Stainless Steel, Remote Oil/V-Drive Brace to CollectorSCREW, (M6 x 12) Stainless Steel, Remote Oil/V-Drive Brace to Collector
