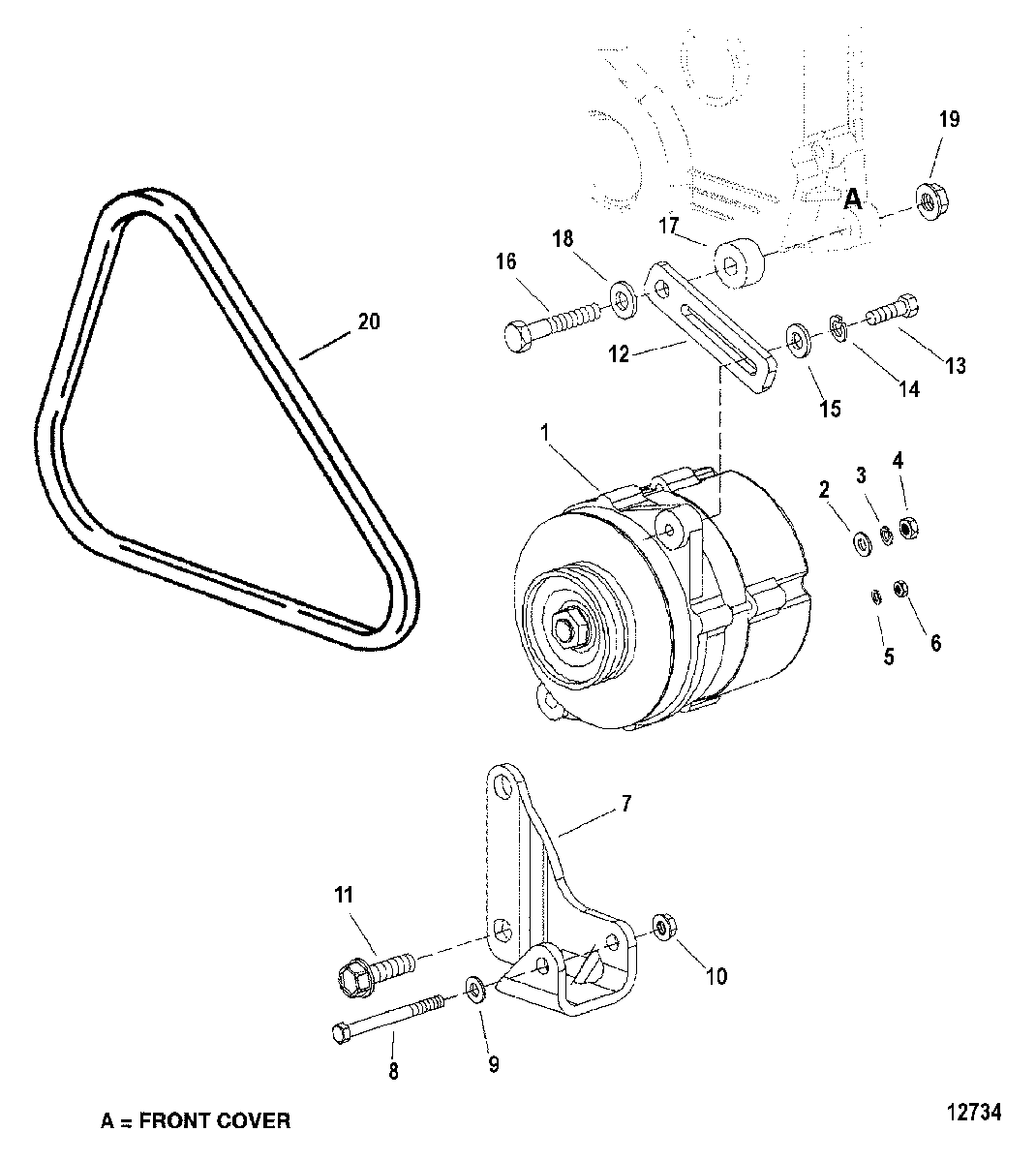

Alternator and Mounting Hardware для Mercruiser - CMD 4.2 ES 300 VM 254 I/L6 88050001 THRU 88050643
-
№АртикулНазвание
-
1805884T ALTERNATORALTERNATOR
-
212-96457 WASHER, Phenolic (.27 x .81 x .062), PhenolicWASHER, Phenolic (.27 x .81 x .062), Phenolic
-
313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
411-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
513-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
611-79989 NUT, (#10-24) Stainless SteelNUT, (#10-24) Stainless Steel
-
7806979T BRACKET, AlternatorBRACKET, Alternator
-
810-68299 SCREW, (M8)SCREW, (M8)
-
913-811460 LOCKWASHERLOCKWASHER
-
1011-854184 NUT, (M8)NUT, (M8)
-
1110-879148012 SCREW, (M14 x 25)SCREW, (M14 x 25)
-
12806980T BRACEBRACE
-
1310-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
1413-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1512-814806 WASHER, (.344 x .688 x .065) Stainless SteelWASHER, (.344 x .688 x .065) Stainless Steel
-
1610-4000382 SCREW, (M10 x 60)SCREW, (M10 x 60)
-
1723-807030 SPACERSPACER
-
1812-879194232 WASHERWASHER
-
1911-4013610 NUT, (M10) Stainless SteelNUT, (M10) Stainless Steel
-
2057-64032Q1 V BELTV BELT
