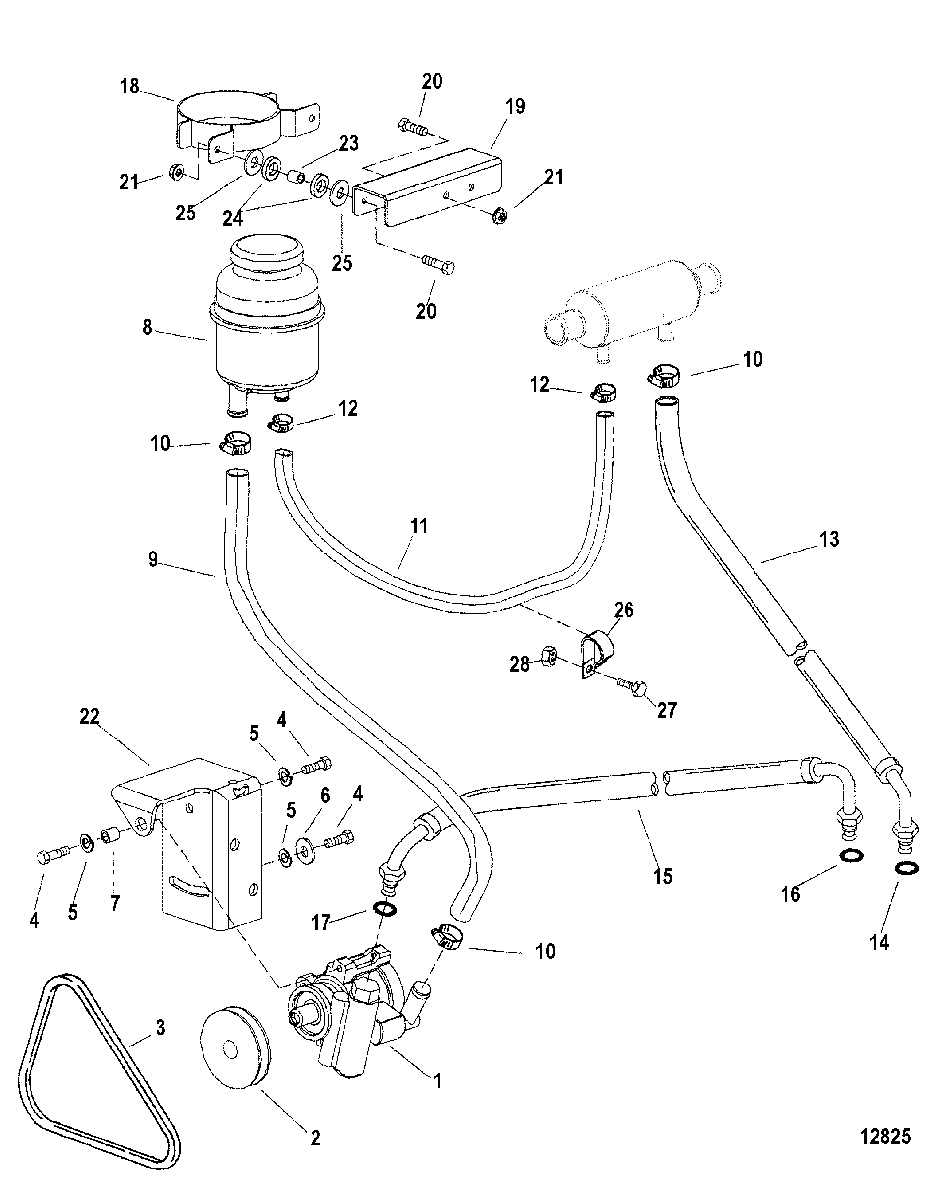

Power Steering Components(STERNDRIVE) для Mercruiser - CMD 4.2 ES 300 VM 254 I/L6 88050001 THRU 88050643
-
№АртикулНазвание
-
118825A10 PUMP ASSEMBLYPUMP ASSEMBLY
-
2801763349 PULLEYPULLEY
-
357-816177Q V BELTV BELT
-
410-809913657 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
513-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
612-4002318 WASHERWASHER
-
723-12009 BUSHING, (.31 x .45 x .50)BUSHING, (.31 x .45 x .50)
-
8865264T TANK, Power Steering Oil ReservoirTANK, Power Steering Oil Reservoir
-
932-816689260 HOSE, Power Steering Pump to Reservoir
(Cut to Length)HOSE, Power Steering Pump to Reservoir
(Cut to Length) -
1054-815504210 CLAMPCLAMP
-
1132-883967 HOSE, Reservoir to CoolerHOSE, Reservoir to Cooler
-
1254-815504104 CLAMPCLAMP
-
1332-883969 HOSE, Cooler to Steering CylinderHOSE, Cooler to Steering Cylinder
-
1425-89879 O-RING, (.301 x .064)O-RING, (.301 x .064)
-
1532-883970 HOSE, Power Steering Pump to Steering CylinderHOSE, Power Steering Pump to Steering Cylinder
-
1625-89879 O-RING, (.301 x .064)O-RING, (.301 x .064)
-
1725-806232 O-RING, (.239 x .064)O-RING, (.239 x .064)
-
188553871 SUPPORT, Oil TankSUPPORT, Oil Tank
-
19855388 BRACKET, Oil Tank SupportBRACKET, Oil Tank Support
-
2010-898101555 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
2111-854037 NUT, (M8)NUT, (M8)
-
22816340 BRACKET, Power Steering PumpBRACKET, Power Steering Pump
-
2323-854021 SPACERSPACER
-
2425-854020 GROMMET, RubberGROMMET, Rubber
-
2512-811455 WASHERWASHER
-
2654-803627 CLIPCLIP
-
2710-855511 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
2811-898101541 NUT, (M6)NUT, (M6)
