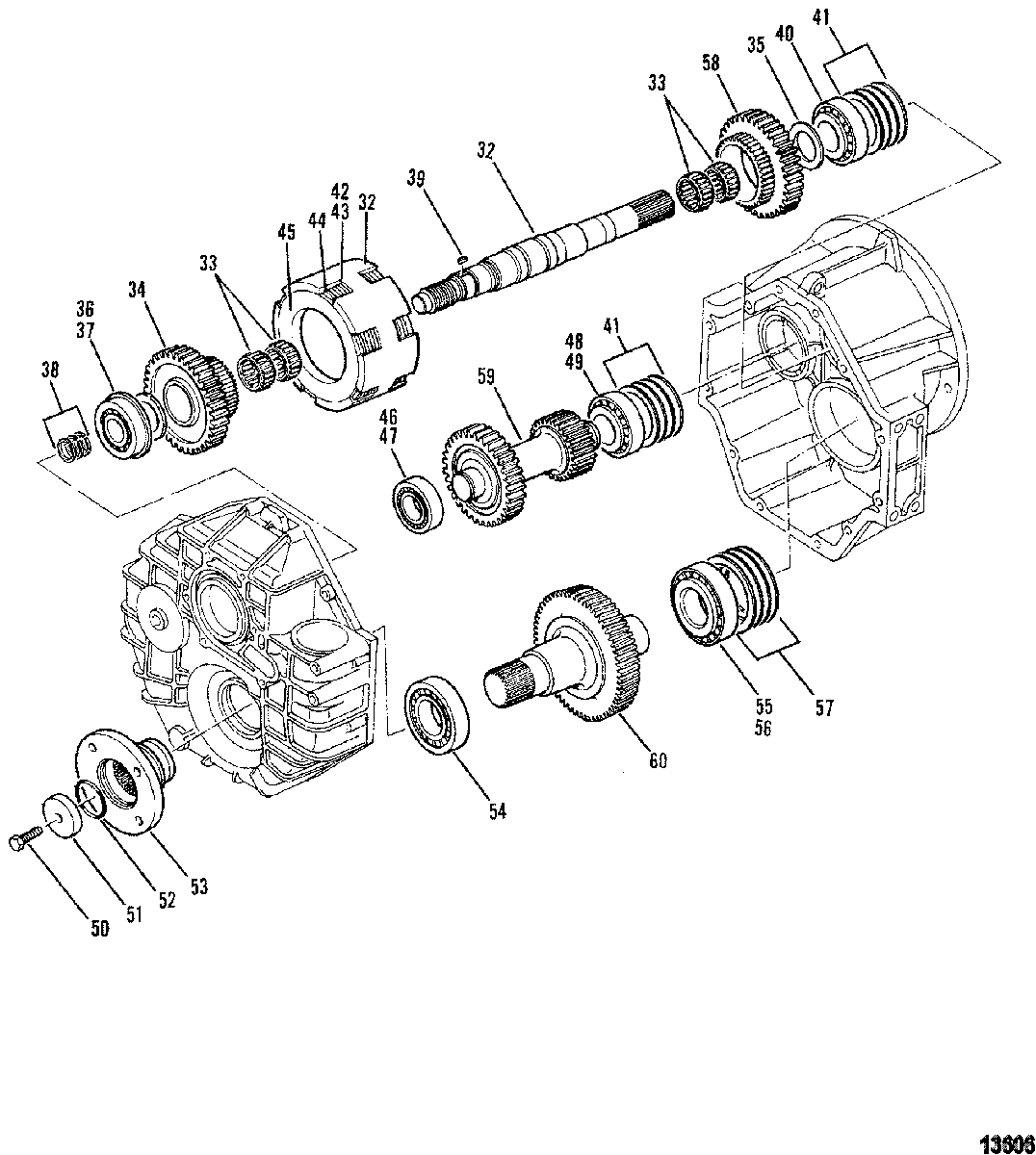

Transmission Assembly(Hydraulic Transmission) Continued для Mercruiser - D183 TURBO AC (MCM & MIE) VM 183 I/L5 1990-1993 0B993002 THRU 0D725151
-
№АртикулНазвание
-
-863744T2 TRANSMISSION, (1.5:1 Ratio) (1.5:1 Ratio)TRANSMISSION, (1.5:1 Ratio) (1.5:1 Ratio)
-
-18901A TRANSMISSION ASSEMBLY (2.0:1 Ratio)TRANSMISSION ASSEMBLY (2.0:1 Ratio)
-
-863744T4 TRANSMISSION, (2.5:1 Ratio) (2.5:1 Ratio)TRANSMISSION, (2.5:1 Ratio) (2.5:1 Ratio)
-
1813306 SHAFT, InputSHAFT, Input
-
231-813307 BEARING, RollerBEARING, Roller
-
343-813308 GEARGEAR
-
443-813308 GEARGEAR
-
512-813309 WASHER, InnerWASHER, Inner
-
631-852066 BEARING, Tapered Roller, OuterBEARING, Tapered Roller, Outer
-
753-813312 RINGRING
-
828-813313 KEYKEY
-
930-813314 BEARINGBEARING
-
1015-813315 SHIM, (.10 mm)SHIM, (.10 mm)
-
1115-813316 SHIM, (.15 mm)SHIM, (.15 mm)
-
1215-813317 SHIM, (.20 mm)SHIM, (.20 mm)
-
1315-813318 SHIM, (.50 mm)SHIM, (.50 mm)
-
14813319 DISCDISC
-
15813320 DISCDISC
-
1653-813321 RINGRING
-
17813322 PRESSURE DISCPRESSURE DISC
-
1831-813323 BEARING, Tapered Roller, InnerBEARING, Tapered Roller, Inner
-
1931-813324 BEARING, Tapered Roller, OuterBEARING, Tapered Roller, Outer
-
2031-813325 BEARING, Tapered Roller, InnerBEARING, Tapered Roller, Inner
-
2131-813326 BEARING, Tapered Roller, OuterBEARING, Tapered Roller, Outer
-
2210-813327 SCREWSCREW
-
2323-813328 SPACERSPACER
-
2425-813329 O-RINGO-RING
-
25813330 FLANGE, OutputFLANGE, Output
-
2631-813331 BEARING, Tapered RollerBEARING, Tapered Roller
-
2731-813332 BEARING, Tapered Roller, InnerBEARING, Tapered Roller, Inner
-
22831-813333 BEARING, Tapered Roller, OuterBEARING, Tapered Roller, Outer
-
2915-813334 SHIM, (.10 mm)SHIM, (.10 mm)
-
3015-813335 SHIM, (.15 mm)SHIM, (.15 mm)
-
3115-813336 SHIM, (.30 mm)SHIM, (.30 mm)
-
3215-813337 SHIM, (.50 mm)SHIM, (.50 mm)
-
3343-813338 GEAR (1.5:1 Ratio)GEAR (1.5:1 Ratio)
-
34813339 SHAFT, Intermediate (1.5:1 Ratio)SHAFT, Intermediate (1.5:1 Ratio)
-
35813340 SHAFT, Output (1.5:1 Ratio)SHAFT, Output (1.5:1 Ratio)
-
3643-813341 GEAR (2.0:1 Ratio)GEAR (2.0:1 Ratio)
-
37813342 SHAFT, Intermediate (2.0:1 Ratio)SHAFT, Intermediate (2.0:1 Ratio)
-
38813342 SHAFT, Intermediate (2.0:1 Ratio)SHAFT, Intermediate (2.0:1 Ratio)
-
3943-813344 GEAR (2.5:1 Ratio)GEAR (2.5:1 Ratio)
-
40813345 SHAFT, Intermediate (2.5:1 Ratio)SHAFT, Intermediate (2.5:1 Ratio)
-
41813346 SHAFT, Output (2.5:1 Ratio)SHAFT, Output (2.5:1 Ratio)
