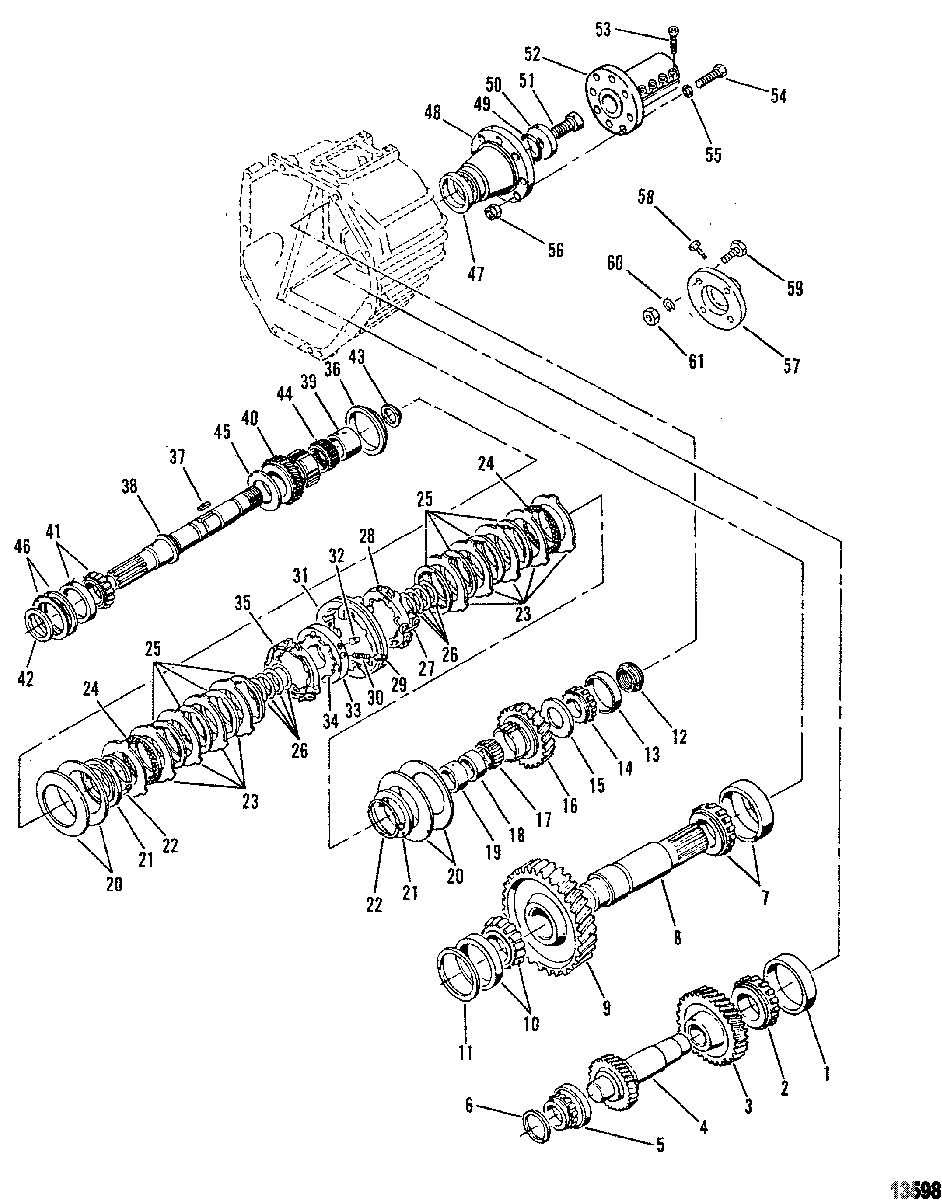

Transmission(Inline) (Internal Component) Continued для Mercruiser - D183 TURBO AC (MCM & MIE) VM 183 I/L5 1990-1993 0B993002 THRU 0D725151
-
№АртикулНазвание
-
-801763547 TRANSMISSION (1.5:1 Ratio)TRANSMISSION (1.5:1 Ratio)
-
-801763548 TRANSMISSION (2.0:1 Ratio)TRANSMISSION (2.0:1 Ratio)
-
-801763549 TRANSMISSION (3.0:1 Ratio)TRANSMISSION (3.0:1 Ratio)
-
28801761985 DISC CARRIERDISC CARRIER
-
2917-801328202 PIN, RetainingPIN, Retaining
-
3017-801328202 PIN, RetainingPIN, Retaining
-
31801328205 SLEEVESLEEVE
-
3217-801328203 PINPIN
-
33801761980 SLEEVESLEEVE
-
3430-809986298 BALLBALL
-
35801761979 DISC CARRIERDISC CARRIER
-
36801761939 RING (1.5:1 And 2.0:1 Ratio)RING (1.5:1 And 2.0:1 Ratio)
-
36801761940 RING (3.0:1 Ratio)RING (3.0:1 Ratio)
-
3728-801328180 KEYKEY
-
38801761947 DRIVESHAFTDRIVESHAFT
-
3923-801761981 SPACER SOCKETSPACER SOCKET
-
4043-801761971 GEAR (1.5:1 Ratio)GEAR (1.5:1 Ratio)
-
4043-801761972 GEAR (2.0:1 Ratio)GEAR (2.0:1 Ratio)
-
4043-801761973 GEAR (3.0:1 Ratio)GEAR (3.0:1 Ratio)
-
4131-809985082 BEARING, RollerBEARING, Roller
-
4225-801761946 O-RINGO-RING
-
4323-801761991 SPACERSPACER
-
4431-801761944 BEARING, RollerBEARING, Roller
-
4512-801761987 THRUST WASHERTHRUST WASHER
-
4615-801328222 SHIM (.10MM)SHIM (.10MM)
-
4615-801328223 SHIM (.15MM)SHIM (.15MM)
-
4615-801328224 SHIM (.30MM)SHIM (.30MM)
-
4615-801328225 SHIM (.50MM)SHIM (.50MM)
-
4615-801328226 SHIM (1.00MM)SHIM (1.00MM)
-
4725-801761948 O-RINGO-RING
-
48801761936 FLANGEFLANGE
-
4925-801761949 O-RINGO-RING
-
5012-801761950 WASHERWASHER
-
51801991398 SCREWSCREW
-
5219559A1 FLANGE (30MM) Use With Metric ShaftFLANGE (30MM) Use With Metric Shaft
-
5219560A1 FLANGE (30MM) Use With Metric ShaftFLANGE (30MM) Use With Metric Shaft
-
5219561A1 FLANGE (40MM) Use With Metric ShaftFLANGE (40MM) Use With Metric Shaft
-
5219562A1 FLANGE (45MM) Use With Metric ShaftFLANGE (45MM) Use With Metric Shaft
-
5310-4007640 SCREW, Use With Metric ShaftSCREW, Use With Metric Shaft
-
5410-40001260 SCREW, (M12 x 45), Use With Metric ShaftSCREW, (M12 x 45), Use With Metric Shaft
-
5513-400249 LOCKWASHER, Use With Metric ShaftLOCKWASHER, Use With Metric Shaft
-
5611-402016 NUT, Use With Metric ShaftNUT, Use With Metric Shaft
-
5779476A1 FLANGE ASSEMBLY, (5.00 x 1.00) (1.00") Use With English ShaftFLANGE ASSEMBLY, (5.00 x 1.00) (1.00") Use With English Shaft
-
5779476A2 FLANGE ASSEMBLY, (5.00 x 1.125) (1.125") Use With English ShaftFLANGE ASSEMBLY, (5.00 x 1.125) (1.125") Use With English Shaft
-
5779476A3 FLANGE ASSEMBLY, (5.00 x 1.25) (1.250") Use With English ShaftFLANGE ASSEMBLY, (5.00 x 1.25) (1.250") Use With English Shaft
-
5779476A4 FLANGE ASSEMBLY, (5.00 x 1.375) (1.375") Use With English ShaftFLANGE ASSEMBLY, (5.00 x 1.375) (1.375") Use With English Shaft
-
5779476A5 FLANGE ASSEMBLY, (5.00 x 1.50) (1.50") Use With English ShaftFLANGE ASSEMBLY, (5.00 x 1.50) (1.50") Use With English Shaft
-
5779476A6 FLANGE ASSEMBLY, (5.00 x 1.75) (1.750") Use With English ShaftFLANGE ASSEMBLY, (5.00 x 1.75) (1.750") Use With English Shaft
-
5779476A7 FLANGE ASSEMBLY, (5.00 x 2.00) (2.00") Use With English ShaftFLANGE ASSEMBLY, (5.00 x 2.00) (2.00") Use With English Shaft
-
5810-60171 SCREW, (.375-16 x 1.250), Use With English ShaftSCREW, (.375-16 x 1.250), Use With English Shaft
-
5810-60169 SCREW, (.375-16 x .750), Use With English ShaftSCREW, (.375-16 x .750), Use With English Shaft
-
5910-805159 SCREW, (.437-20 x 1.500), Use With English ShaftSCREW, (.437-20 x 1.500), Use With English Shaft
-
6013-32993 LOCKWASHER, (.437), Use With English ShaftLOCKWASHER, (.437), Use With English Shaft
-
6111-22024 NUT, (.437-14), Use With English ShaftNUT, (.437-14), Use With English Shaft
